ELECROW CrowPanel 3.5inch HMI ESP32 Display 480x320 SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython-Without Acrylic Case [MPN: DIS05035H-1]

ELECROW CrowPanel 3.5"-HMI ESP32 Display 480x320 SPI TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython-Without Acrylic Case

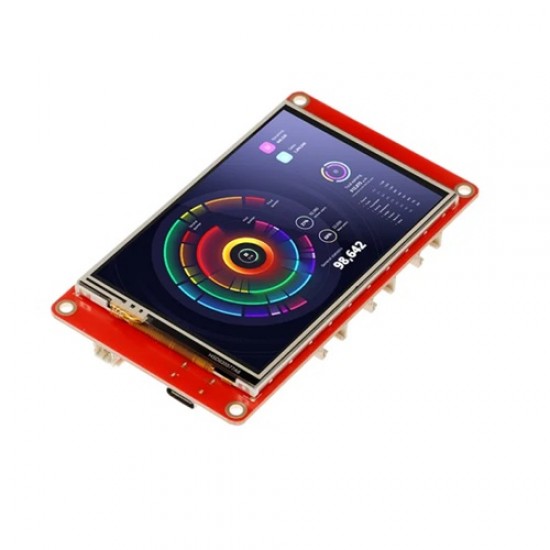

Elecrow ESP32 3.5-inch display is a powerful HMI touch screen with a 320*480 resolution LCD display. It uses the ESP32-WROOM-32 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.

The module includes a 3.5-inch LCD display and a driver board. The display screen uses resistive touch technology and comes with a resistive touch pen, making the screen usage more flexible. In addition, the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.

The ESP32 3.5-inch display is suitable for a wide range of scenes such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its various interfaces and expansion functions make it able to meet the needs of different fields, providing users with a more comprehensive solution.

User Manual / Datasheet / Example Codes Etc.

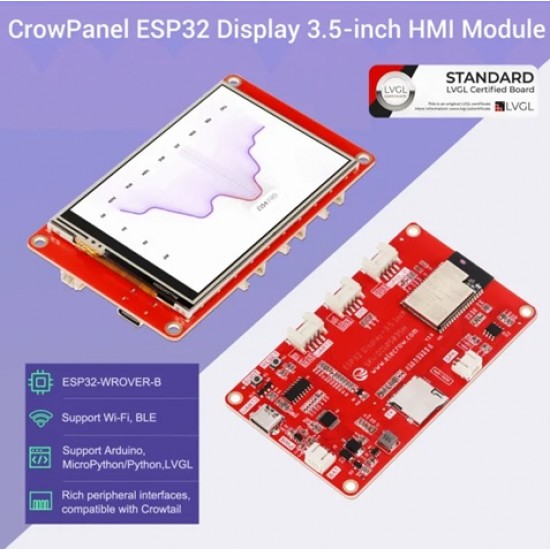

Feature

• Integrated ESP32-WROVER-B module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;

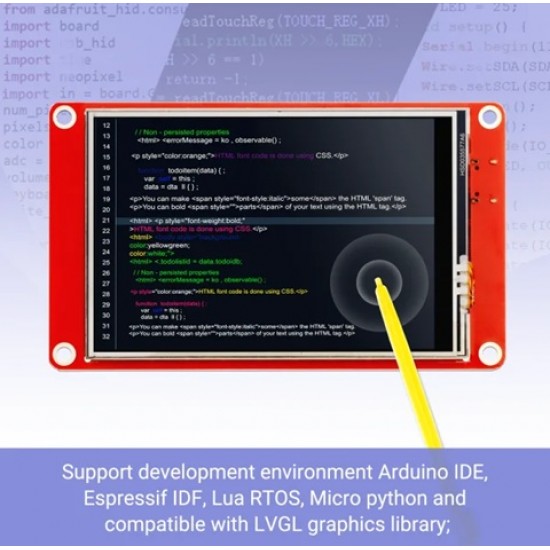

• Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro Python and compatible with LVGL graphics library;
• Built-in LVGL demo interface and Arduino example, 16 tutorials for you to quickly start.
• LCD 480*320 3.5 inches TFT-LCD with driver IC ILI9488;

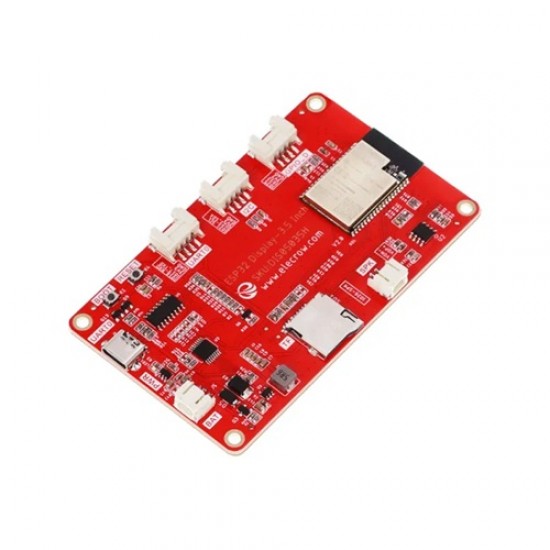

• Integrates a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, delivering plug-and-play expandability.

Specification

• Model: 3.5 inches module-CrowPanel ESP32 display
• Main Processor: ESP32-WROVER-B
• Resolution: 480*320
• Touch Type: Resistive Touch Screen
• Display Type: TN Panel
• Screen: TFT-LCD Screen
• Display driver: ILI9488
• External power supply: DC5V-2A
• Battery voltage: 3.7-4.2V

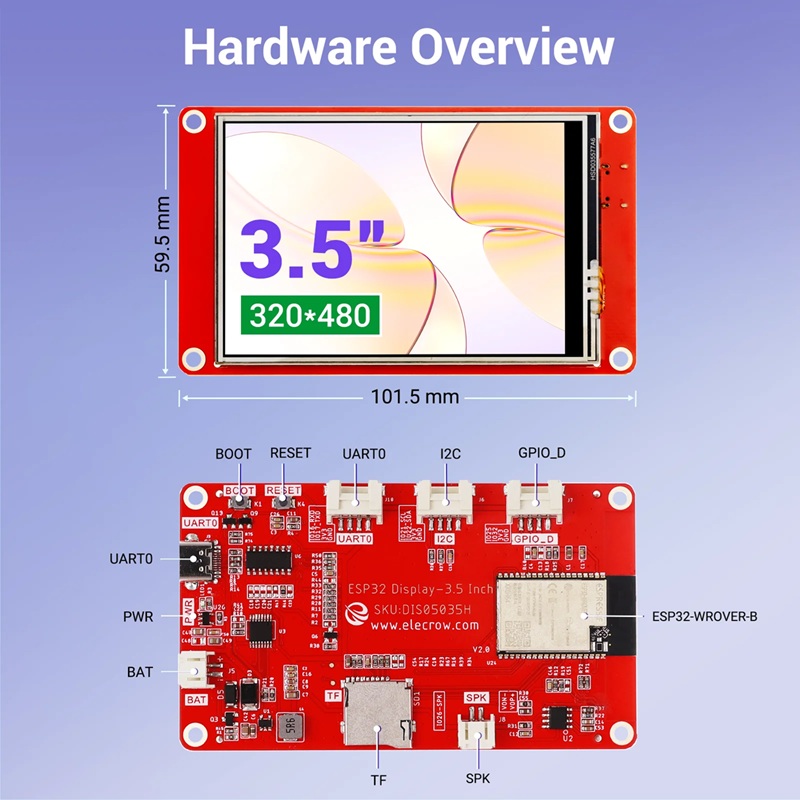

• Interface: 1*TF Card Slot, 1* I2C, 1* GPIO, 1*Speak, 1* UART1, 1*UART0
• Button: BOOT Button and Reset Button
• Active Area: 48.96*73.44mm(W*H)
• Working Temperature: -20℃～70℃
• Storage Temperature: -30℃～80℃

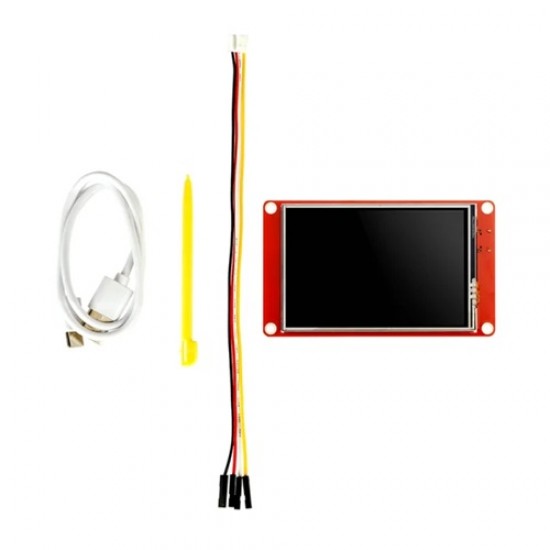

Package Includes

• 1x CrowPanel ESP32 Display 3.5 Inch Display
• 1x USB-A to Type-C Cable
• 1x Crowtail/Grove to 4pin DuPont cable
• 1x Resistive touch pen
