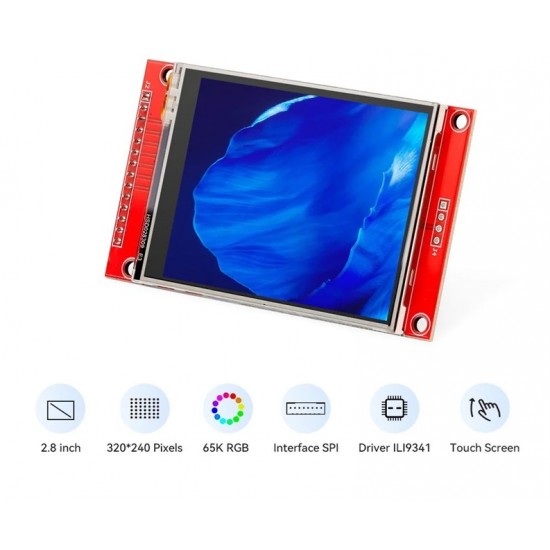

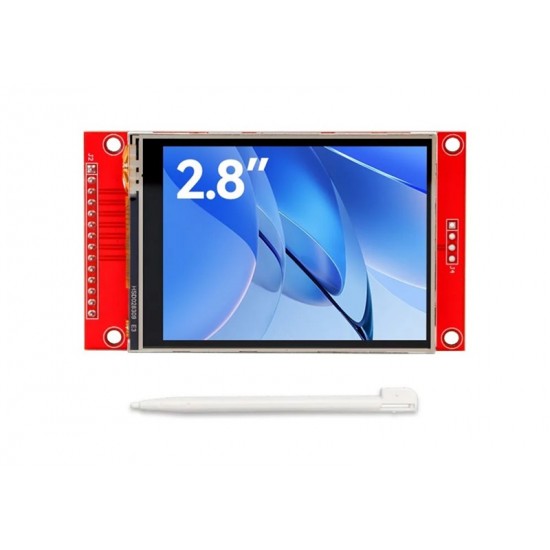

Elecrow 2.8inch 320x240 SPI Serial TFT LCD Module Display With Driver IC ILI9341|With Touch Function

This 2.8-inch color display module has a resolution of 320×240, supports 16BIT RGB 65K color display, presents rich color effects, and provides an optional touch function. It uses an SPI serial bus interface and only requires a small number of IO ports to light up, which is convenient for integration and development. The module has a built-in SD card slot to facilitate the expansion of storage to meet diverse needs. In addition, the product is produced in accordance with military-grade process standards to ensure its long-term stability in various complex environments. We also provide comprehensive sample programs and underlying driver technology support to help developers get started quickly and easily realize project development and applications.

User Manual / Datasheet / Example Codes Etc.

Features

2.8-inch color screen, resolution of 320*240, supports 16BIT RGB 65K color display, rich display colors;
Touch function is optional;
Uses the SPI serial bus, only a few IOs are needed to light up the display;

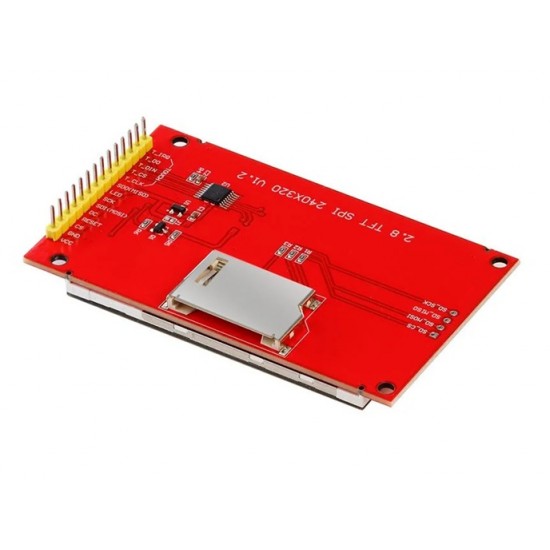

With SD card slot;
Rich sample programs, providing underlying driver technology support.

Specifications

Size: 2.8 inch
Screen Type: TFT
Touch Type: Resistive Touch
Resolution: 320*240 (Pixel)
Color: RGB 65K color
Driver IC: ILI9341
Interface: 4-wire SPI interface
VCC Power Voltage: 3.3V~5V
Logic IO Port Voltage: 3.3V(TTL)
Operating Temperature: -20℃~60℃
Storage Temperature: -30℃~70℃
Active Area: 43.2x57.6(mm)
Module Size: 50x86(mm)

Package Includes

1x 2.8 inch SPI TFT Module
