Elecrow 3.5Inch ESP32-S3 Display with 320x480 Capacitive IPS Touch Panel | With Speaker/Mic/BAT Interface | Supports AI Voice Chat

Elecrow 3.5 Inch ESP32-S3 Display with 320x480 Capacitive IPS Touch Panel | With Speaker/Mic/BAT Interface | Supports AI Voice Chat

This 3.5-inch ESP32-S3 development board integrates display, touch, voice, and wireless communication, specifically designed for intelligent interaction and IoT applications. It utilizes a dual-core ESP32-S3 processor with a clock speed of up to 240 MHz, 8 MB of PSRAM, and 16 MB of Flash memory. It supports 2.4GHz Wi-Fi and Bluetooth 5.0, providing ample computing power for complex human-machine interfaces and AI algorithms.

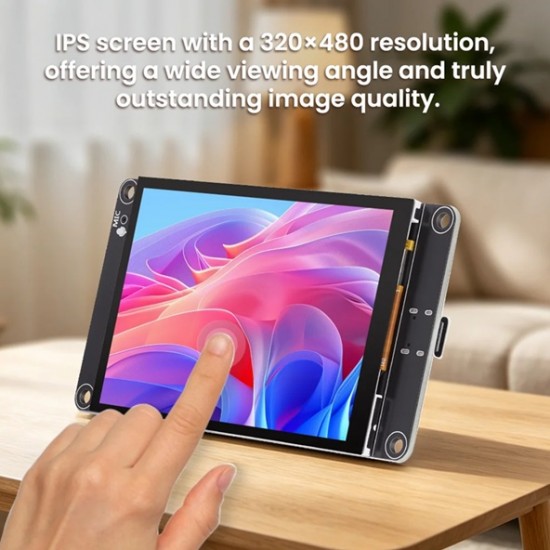

The screen is a 3.5-inch IPS full-view color display with a resolution of 320×480 and 65K colors, offering vibrant colors and a wide viewing angle. The capacitive touchscreen ensures high sensitivity and a smooth human-machine interaction experience. An onboard high-sensitivity microphone and speaker interface (with a speaker included) enable voice capture and playback, supporting the "Xiao Zhi AI" voice chat function, simplifying voice interaction development.

The module integrates a Type-C interface (supporting one-click download), a TF card slot, and a lithium battery charging management circuit (supporting external 3.7V lithium batteries), facilitating the development of portable devices. It offers multiple expansion interfaces such as SPI, IIC, and UART, facilitating connection to various sensors and peripherals. The product has undergone aging tests and multiple inspections, supports a wide operating temperature range of -30~80℃, and, with abundant sample programs and underlying driver technology support, is an ideal choice for smart home control systems, AI voice assistants, and portable smart terminals.

Datasheet

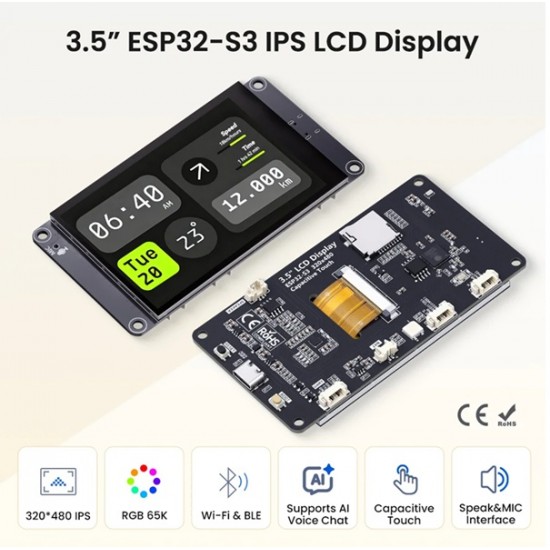

Features

• High-performance ESP32-S3 main controller: Dual-core Xtensa LX7 processor, 240MHz clock speed, built-in 8MB PSRAM + 16MB Flash, supports 2.4GHz WiFi and Bluetooth 5.0.
• 3.5-inch IPS full-view color screen: 320×480 resolution, 65K colors, capacitive touch, clear display, sensitive touch, and smooth response.
• Voice interaction support: Onboard high-sensitivity microphone interface and an external speaker (included), supporting voice chat for easy development of voice control and audio playback applications.
• Lithium battery charge/discharge management: Built-in battery charging management circuitry, supports external 3.7V lithium batteries for safe charging and discharging.
• Rich expansion interfaces: Onboard Type-C (one-click download), TF card slot, IIC, UART, SPI, and other interfaces for easy connection to various sensors and peripherals.
• Convenient Development Experience: Standard Type-C interface integrates a one-click download circuit, eliminating the need for manual button presses; provides complete sample programs and underlying driver technology support.
• Status Indicators: Built-in RGB three-color indicator lights allow for customizable display of device status, facilitating debugging and interactive feedback.
• Reliable Quality: The module undergoes aging tests and multiple inspections, supports a wide operating temperature range of -30~80℃, and is suitable for various indoor and outdoor environments.

Specifications

• Chip: ESP32-S3 (N16R8)
• CPU: Xtensa LX7 32-bit dual-core processor
• Frequency: 240MHz(Max)
• Memory: 384KB ROM+512KB SRAM+16KB RTC SRAM+8M internal OPI PSRAM+16M external SPI Flash
• Wi-Fi: 2.4GHz, 802.11b/g/n mode
• Bluetooth: Bluetooth V5.0 BR/EDR and Bluetooth LE standard

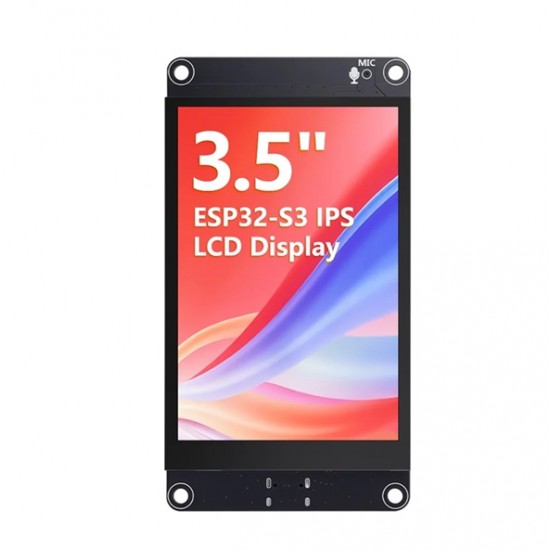

• Panel Size: 3.5 inch
• Panel Type: IPS
• Touch Screen Type: Capacitive touch screen
• Resolution: 320x480
• Active Area: 48.96x73.44(H)(mm)
• Number of Pixels: 65K(RGB565)
• Display Driver IC: ST77922
• Display interface: QSPI(Received on ESP32-S3)
• View Angle: ALL ’CLOCK
• Brightness(TYP): 300 cd/m2
• Backlight Type: White LED*6
• Communication Interface: IIC
• Pixel Size: 0.153(H)x0.153(mm)
• Working Voltage: 5.0V
• Operating temperature: -30~80(℃)
• Storage temperature: -30~80(℃)

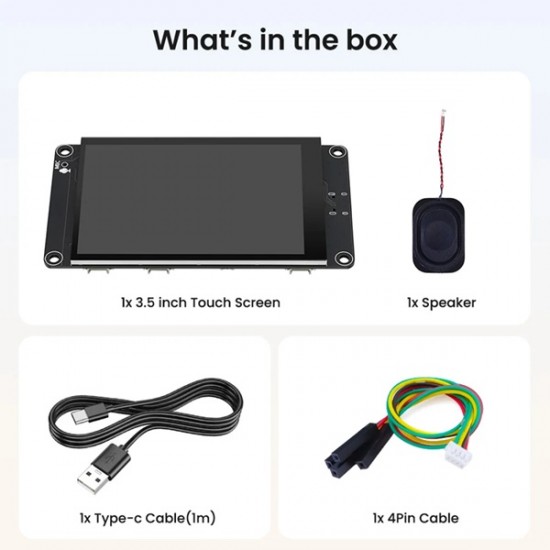

Package Includes

• 1x 3.5 inch ESP32 LCD Module

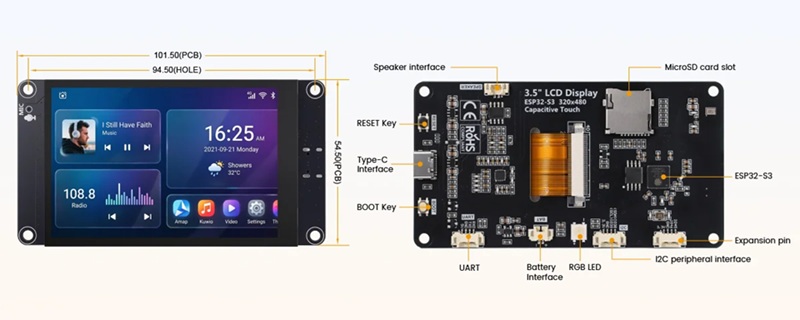

Hardware Overview
