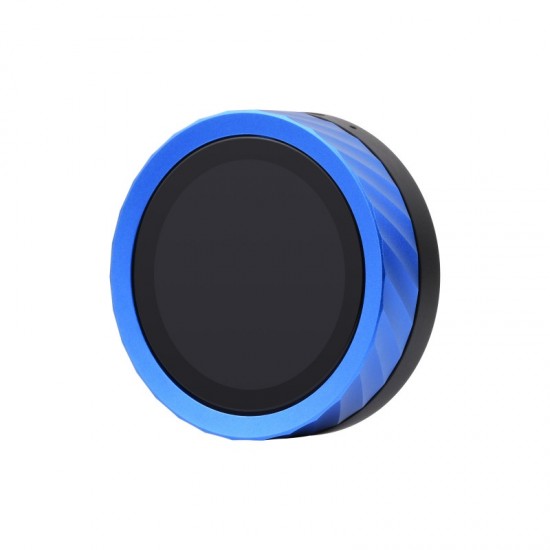

ESP32-S3 1.8inch Knob Display Development Board, Multi-functional Knob Screen, Capacitive Touch, 2.4GHz Wi-Fi / Bluetooth, CNC Metal Case, Inbuilt 3.7V 102035 Lithium Battery

This product is a high-performance, highly integrated MCU board designed by Waveshare, features ESP32-S3 and ESP32 dual MCUs control, integrated large-capacity Flash and PSRAM. Onboard 1.8inch touch LCD screen and multiple peripherals such as audio decoder chip and knob encoder, enabling rapid development of smart voice AI applications.

User Manual / Datasheet / Example Codes Etc.

Featuers

Equipped with ESP32-S3 and ESP32 dual MCUs, up to 4 cores and 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) and Classic Bluetooth, with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

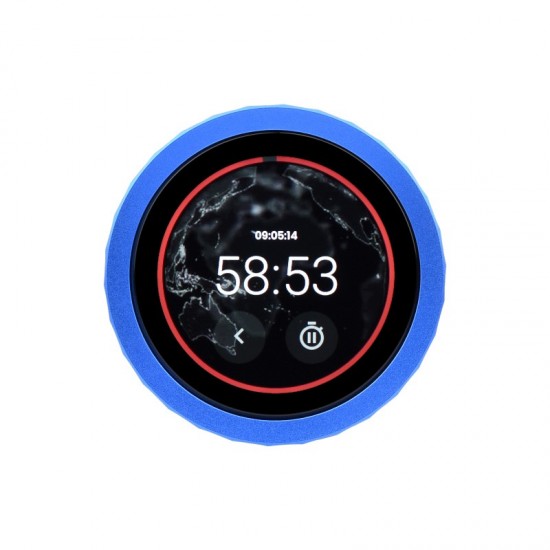

Onboard 1.8inch LCD display, 360 × 360 resolution, 262K color
Supports touch control via I2C interface, with interrupt support
Onboard audio decoder chip, microphone, knob encoder, vibration motor, TF card slot, and battery recharge management module
CNC process metal case, nice looking and durable, easy to carry

Specifications

Display size: 1.8 inch
Display panel: IPS
Resolution: 360 × 360
Display color: 262K
Brightness: 600cd/m²
Contrast ratio: 1200:1
Communication interface: QSPI
Driver IC: ST77916
Touch Type: Capacitive
Touch IC: CST816

Package Includes

ESP32-S3-Knob-Touch-LCD-1.8-EN × 1
Back cover × 1

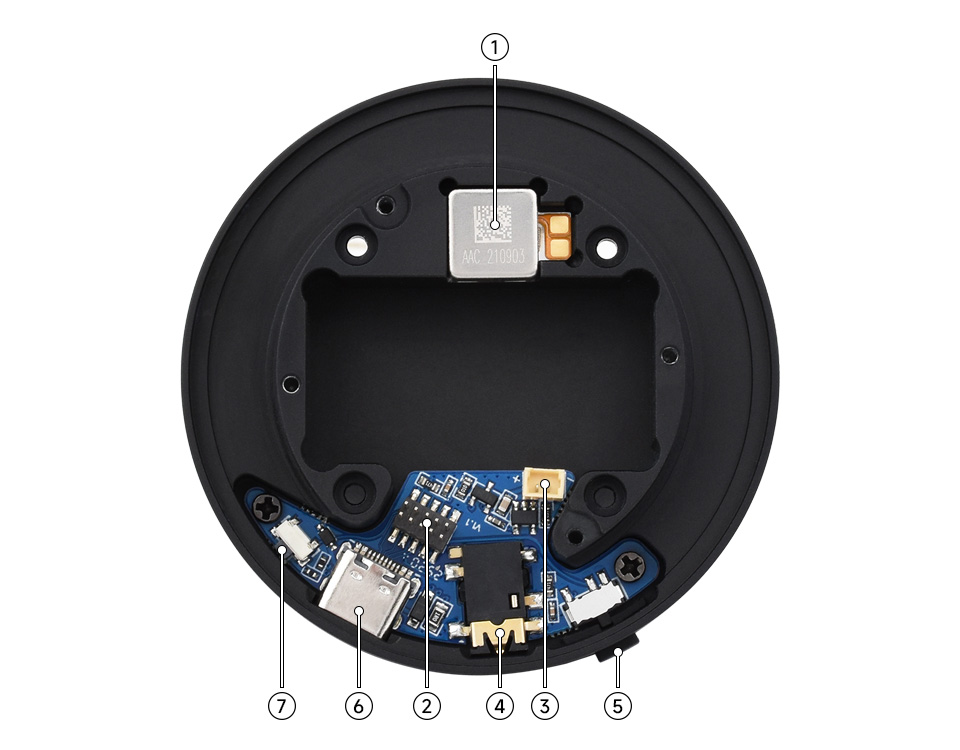

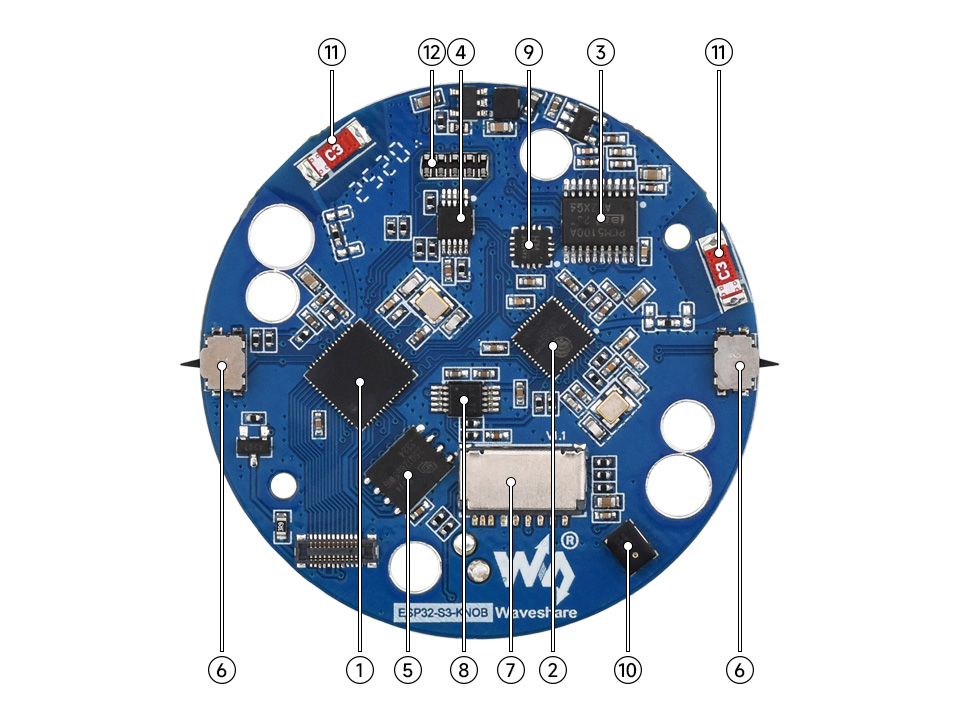

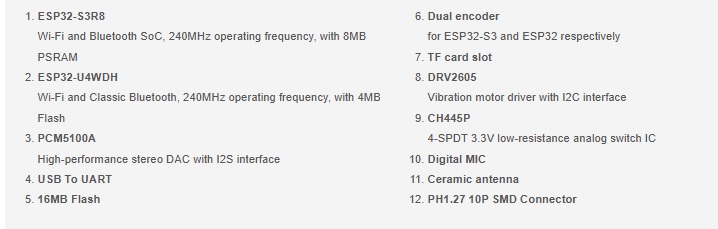

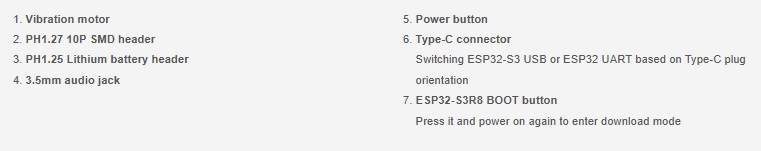

What's On Board

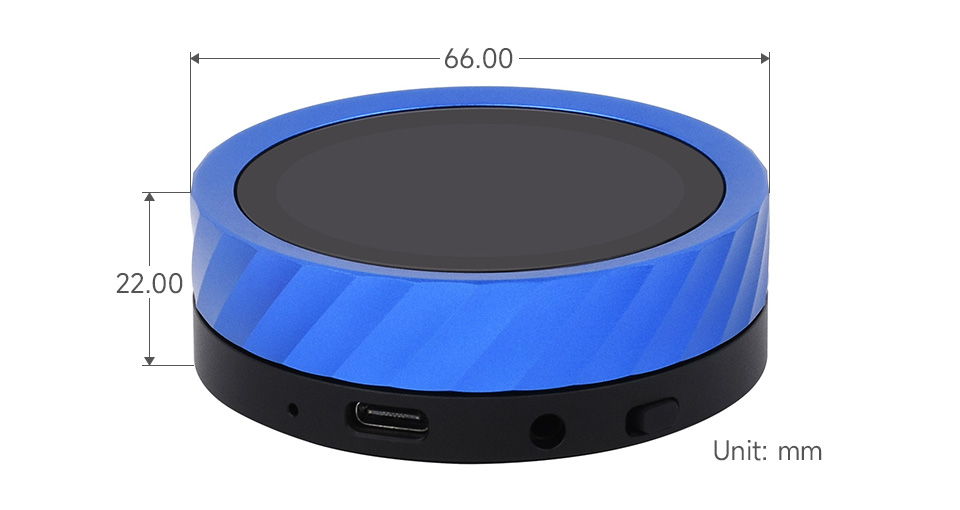

Dimensions
