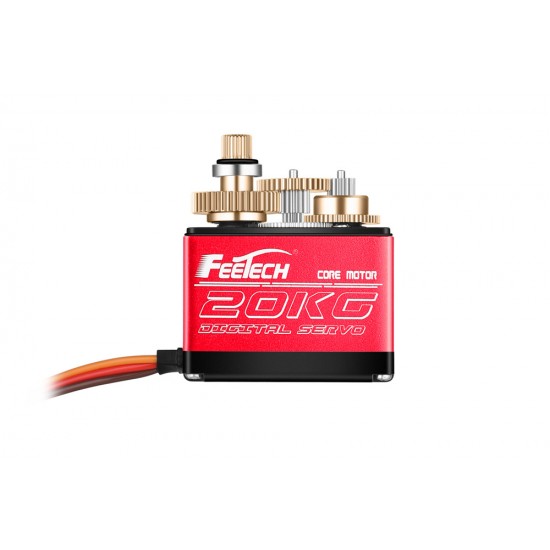

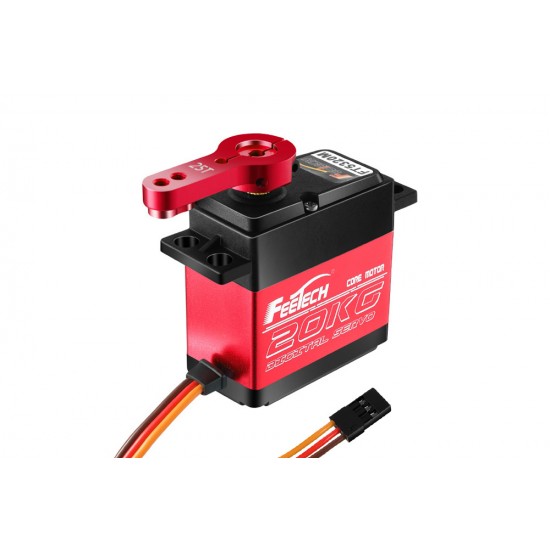

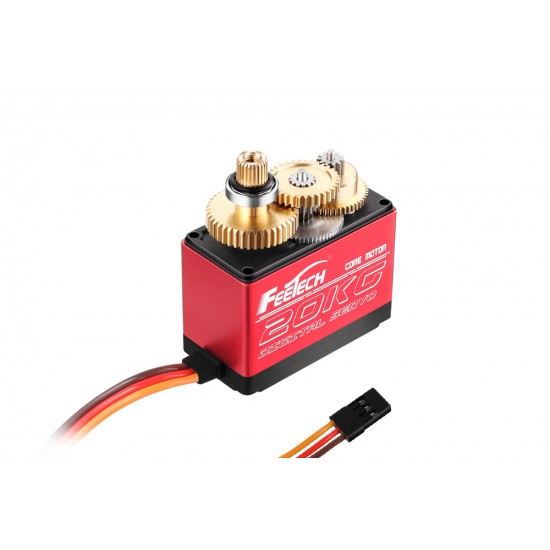

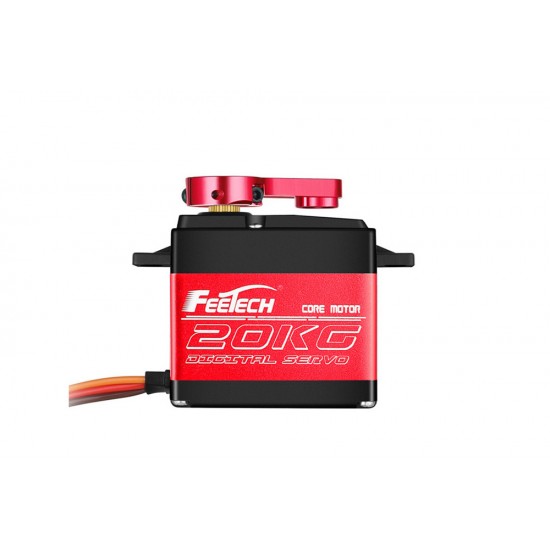

Name: Feetech FT-5320-C001 7.4V 20Kg CM 180 Degree Servo Motor
Brand: Feetech
SKU: 07703
Price: 1056.00 INR
Availability: OutOfStock

Feetech FT-5320-C001 7.4V 20Kg CM 180 Degree Servo Motor

Feetech

Feetech FT-5320-C001 7.4V 20Kg CM 180 Degree Servo Motor

Based on 0 reviews. - Write a review

₹1,056.00

₹894.92 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 9
B2B GST Credit Available

Price in reward points: 894

Stock: 0 in Stock
SKU: 07703
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Feetech FT-5320-C001 7.4V 20Kg CM 180 Degree Servo Motor

The Feetech FT-5320-C001 is a high-performance digital servo motor designed for precision control and strong torque output in robotics, RC models, and automation systems. Operating at 7.4V, this servo delivers an impressive torque of up to 20Kg.cm, making it ideal for medium to heavy-duty applications that require reliable motion and stability.

Built with durable metal gears, the FT-5320-C001 ensures long-lasting performance and resistance to wear, even under demanding conditions. Its 180-degree rotation capability provides smooth and accurate positioning, while the high-resolution control allows for precise angle adjustments.

Datsheet

Specifications

Model: FT-5320-C001
Storage Temperature Range -30℃～80℃
Operating Temperature Range: -20℃～60℃
Size: A：55mm B：20mm C: 43mm
Weight: 67土1g
Gear type: Copper Gear
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic
Case: PA+A lumi num
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range: 6V-7.4V
Idle current (atstopped) : [email protected]
No load speed: 0.151sec/60°@7.4V
Runnig current(at no load) : [email protected]
Peak stall torque: [email protected]
Rated torque: [email protected]
Stall current:[email protected]
Command si gnal: Pulse width modification
Amplifier type: Digital compara tor
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180° （at 500- > 2500 μ sec)

Package Includes

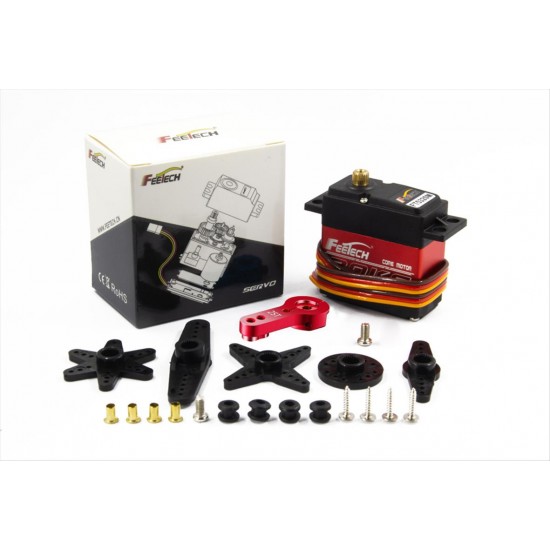

1x FT-5320-C001 7.4V 20Kg CM 180 Degree Servo Motor
