Name: Feetech FT-6335-C001 7.4V 35Kg CM Degree Magnetic Coding Servo Motor
Brand: Feetech
SKU: 07701
Price: 2099.00 INR
Availability: OutOfStock

Feetech FT-6335-C001 7.4V 35Kg CM Degree Magnetic Coding Servo Motor

Feetech

Feetech FT-6335-C001 7.4V 35Kg CM Degree Magnetic Coding Servo Motor

Based on 0 reviews. - Write a review

₹2,099.00

₹1,778.81 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 18
B2B GST Credit Available

Price in reward points: 1778

Stock: 0 in Stock
SKU: 07701
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

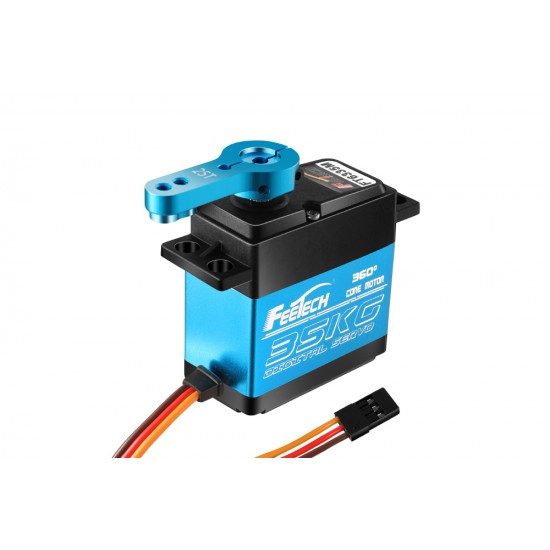

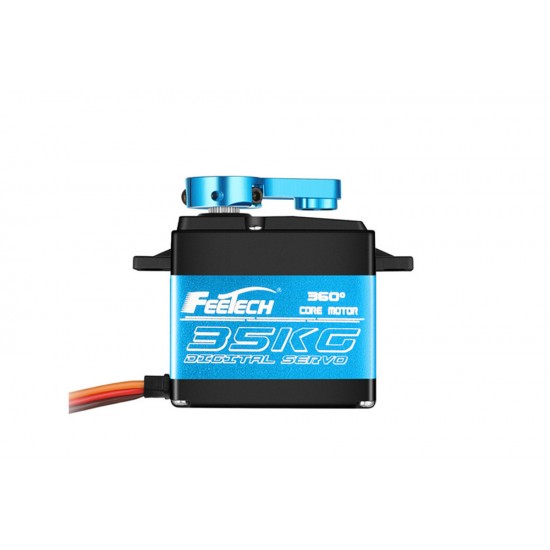

Feetech FT-6335-C001 7.4V 35Kg CM Degree Magnetic Coding Servo Motor

The Feetech FT-6335-C001 is a high-performance digital servo motor designed for precision control and high-torque applications. Operating at 7.4V, this servo delivers an impressive torque output of up to 35Kg·cm, making it ideal for robotics, robotic arms, industrial automation, and advanced RC projects.

Equipped with magnetic encoding technology, the FT-6335-C001 provides accurate position feedback, enhanced durability, and smoother operation compared to traditional potentiometer-based servos. This ensures consistent performance even in demanding environments and long-term use.

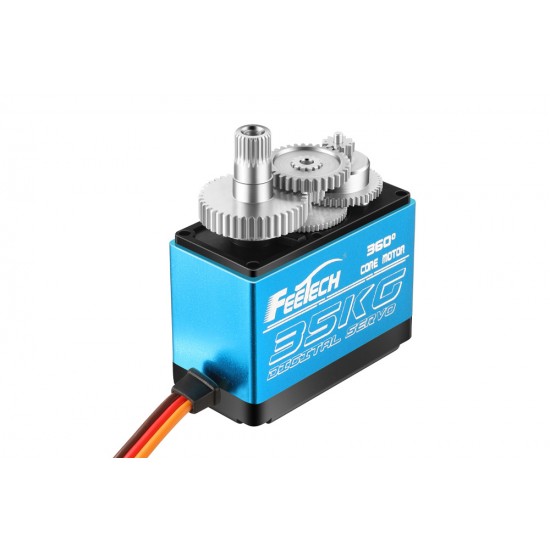

The servo features a robust metal gear system for increased strength and wear resistance, along with high-quality internal components that enable fast response time and stable control. Its compact yet durable design allows easy integration into various mechanical setups.

Datasheet

Specifications

Model: FT-6335-C001
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

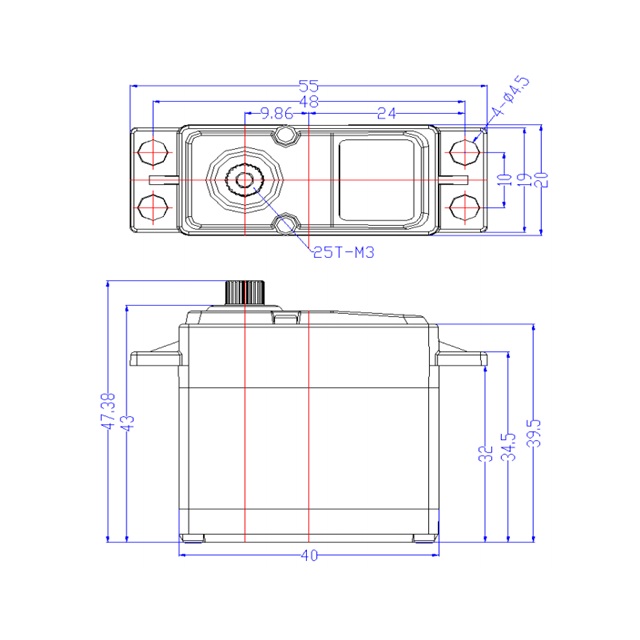

Size: A: 55mm B：20mm C:43mm
Weight: 67土1g
Gear type: Steel tooth
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic,POM
Case: PA+Aluminum
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range: 6V-7.4V
Idle current (at stopped) : [email protected]
No load speed: 0.192sec/60°@7.4V
Runnig current(at no load) : [email protected]
Peak stall torque: [email protected]
Rated torque: [email protected]
Stall current: [email protected]
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500usec
Stop position: 1500 μsec
Running degree: 360° （at 500-2500 μ sec)
Dead band width: ≤4μsec

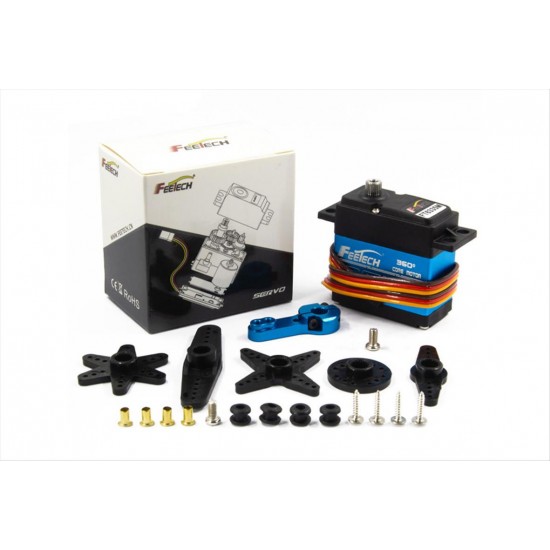

Package Includes

1x FT-6335-C001 7.4V 35Kg CM Degree Magnetic Coding Servo Motor
