Name: Feetech FT-7125-C001 7.4V 25KG 180 Degree Steel Gear Servo Motor
Brand: Feetech
SKU: 07694
Price: 959.00 INR
Availability: OutOfStock

Feetech FT-7125-C001 7.4V 25KG 180 Degree Steel Gear Servo Motor

Feetech

Feetech FT-7125-C001 7.4V 25KG 180 Degree Steel Gear Servo Motor

Based on 0 reviews. - Write a review

₹959.00

₹812.71 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 8
B2B GST Credit Available

Price in reward points: 812

Stock: 0 in Stock
SKU: 07694
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Feetech FT-7125-C001 7.4V 25KG 180 Degree Steel Gear Servo Motor

The Feetech FT-7125-C001 7.4V 25KG 180° Steel Gear Servo Motor is a high-performance digital servo designed for demanding robotics and automation applications. Built with durable steel gears and advanced control electronics, this servo delivers exceptional torque, precision, and reliability, making it ideal for robotic arms, RC vehicles, humanoid robots, and industrial motion control systems.

Operating at 7.4V, the FT-7125-C001 provides an impressive torque output of up to 25kg·cm, ensuring powerful and stable movement even under heavy loads. Its 180-degree rotation range allows for smooth and accurate positioning, while the digital control system ensures quick response times and enhanced holding power.

The servo features a robust metal housing that improves heat dissipation and overall durability, enabling it to perform consistently in challenging environments. The steel gear train further enhances longevity by reducing wear and maintaining precise motion over extended use.

Datasheet

Features

High torque output up to 25kg·cm at 7.4V
Durable steel gear construction for long service life
180° rotation range for precise positioning
Fast response digital control system
Metal casing for improved strength and heat dissipation
Standard PWM interface for broad compatibility
Ideal for robotics, automation, RC models, and industrial use

Specifications

Model: FT-7125-C001
Product Name: 7.4V 25kg.cm180°舵机/7.4V 25KG 180 Degree Servo
Storage Temperature Range: -20℃～80℃
Operating Temperature Range: -10℃～60℃
Size A: 40.16mm B：20.16mm C: 40.05mm
Weight: 64.5± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings

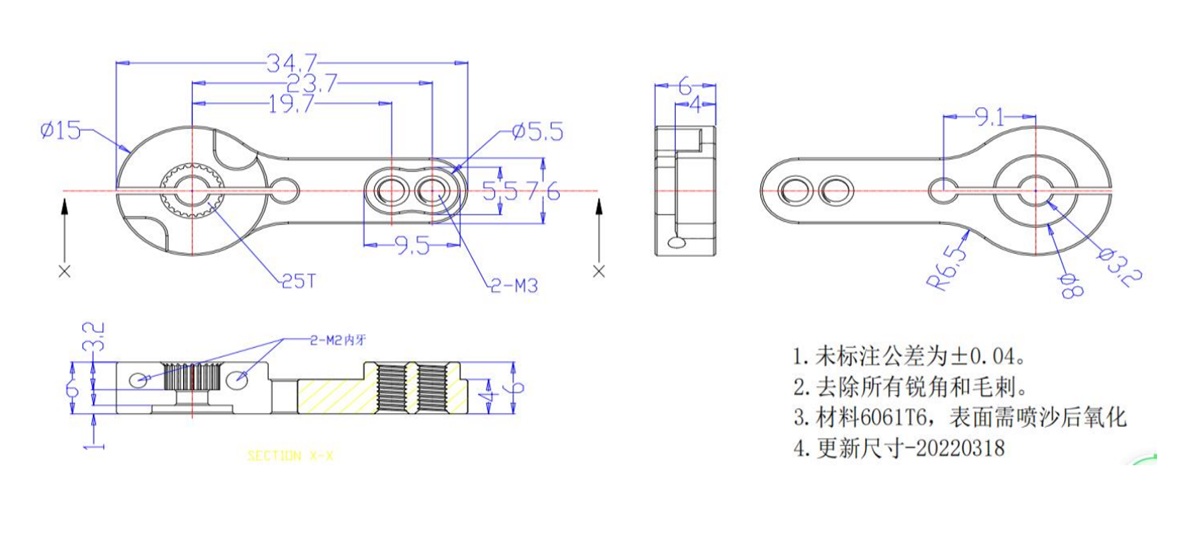

Horn gear spline: 25T/5.9mm
Gear Ratio: 1/275
Case: Aluminum
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range: 4-8.4V
Idle current (stopped): [email protected]
No load speed: 0.139sec/60°(58RPM)@8.4V
Runnig current(at no load) : [email protected]
Peak stall torque: [email protected]
Rated torque: [email protected]
Stall current: [email protected]
Command signal: Pulse width modification
Control System Type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180°± 5°(at 500→2500μsec
Dead bandwidth: ≤4 μ sec
Rotating direction: Counterclockwi se (1500→2500 μ sec)
Electronic Protection: Stall 8sec

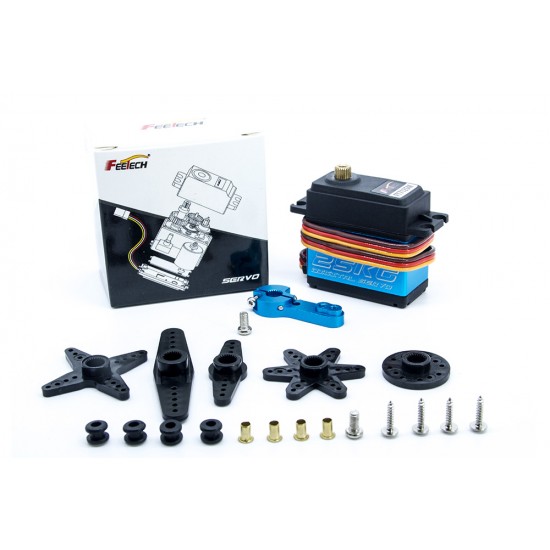

Package Includes

1X FT-7125-C001 7.4V 25KG 180 Degree Steel Gear Servo Motor
