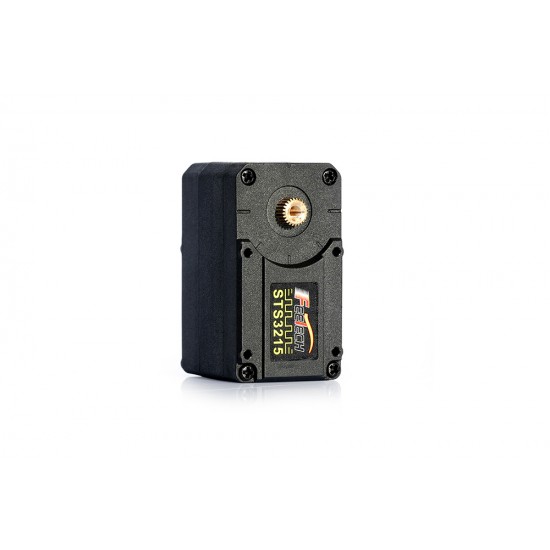

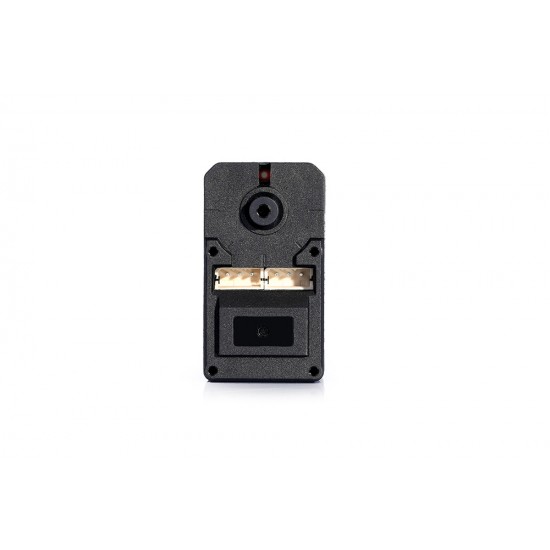

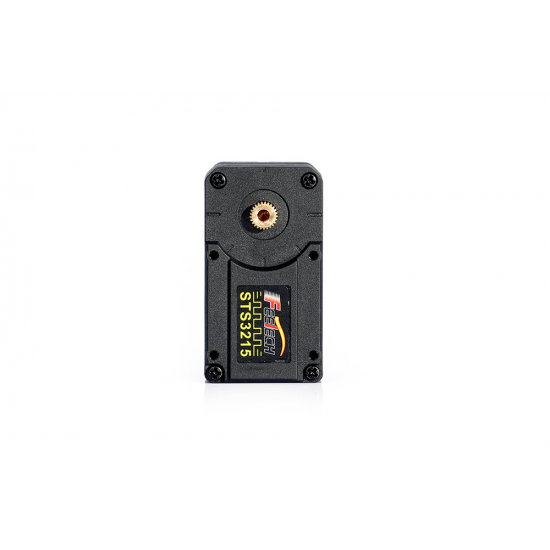

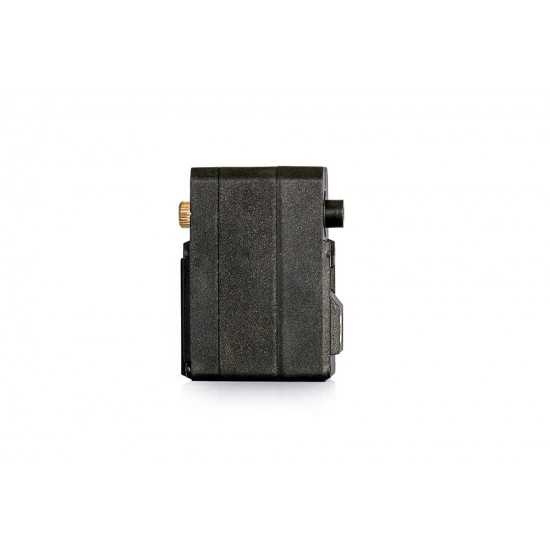

Feetech ST-3215-C001 7.4V 19KG.CM Magnetic Encoding Servo Motor

The Feetech ST-3215-C001 Servo Motor is a high-performance digital servo designed for precision control and robust torque output in advanced robotics and automation systems. Equipped with a magnetic encoder, this servo delivers accurate position feedback, smooth motion, and enhanced durability compared to traditional potentiometer-based servos.

Operating at 7.4V, the ST-3215-C001 provides an impressive torque of up to 19kg·cm, making it ideal for applications that demand both strength and precision, such as robotic arms, humanoid robots, and multi-joint systems. Its serial bus communication interface allows multiple servos to be connected and controlled efficiently using a single data line, simplifying wiring and enabling synchronized movements.

The servo features high-resolution position control, fast response times, and programmable parameters such as angle limits, speed, ID, and torque, offering flexibility for complex motion control tasks. Its durable construction and metal gear system ensure long-term reliability even under continuous operation.

Datasheet

Specifications

Model: ST-3215-C001
Product Name: 7.4V 19KG. Dual axis TTL string servo
Storage Temperature Range: -30°C~80°C
Operating Temperature Range -20°C~70°C

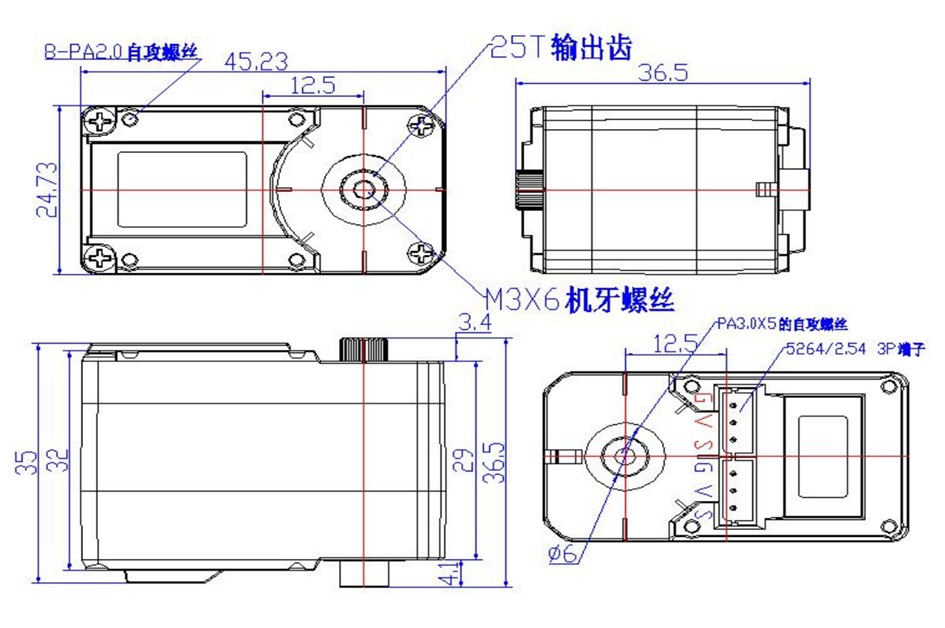

Dimensions: A：45.2mm B：24.7mm C：35mm
Weight: 55± 1g
Gear type: Copper
Limit angle: NO limit
Bearing: Ball Bearing
Horn gear spline: 25T
Horn type: Plastic, POM
Case: aluminium alloy
Connector wire: 150mm ± 5mm
Motor: Coreless motor
Operating Voltage Range: 6-7.4V
No load speed: 0.238sec/60°@6V
Runnig current: 150 mA@6V
Peak stall torque: 19.5kg.cm@6V
Rated torque: 6.5kg.cm@6V
Stall current: 2000mA@6V
Command signal: Digital Packet
Protocol Type: Half Duplex Asynchronous Serial Communication
ID Range: 0-253
Communication speed: 38400bps ~ 1 Mbps
Running degree: 360° (when 0~4096)

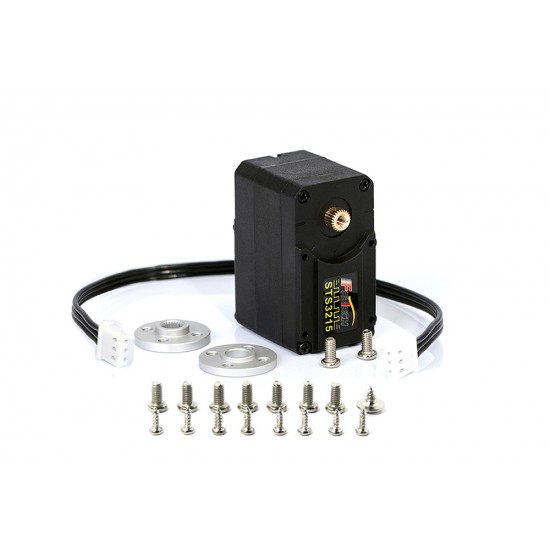

Package Includes

1x ST-3215-C001 7.4V 19KG.CM Magnetic Encoding Servo Motor
