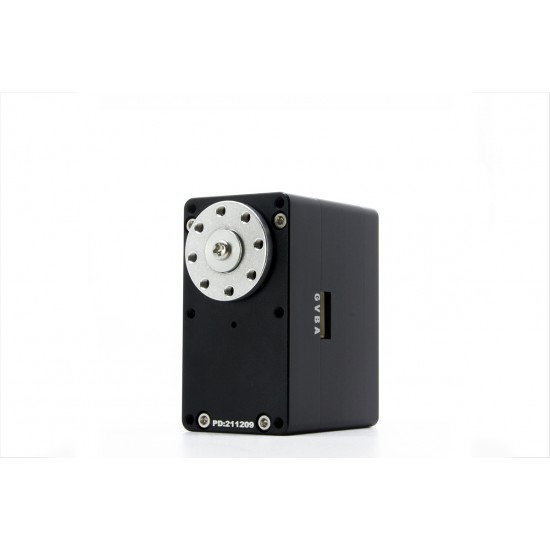

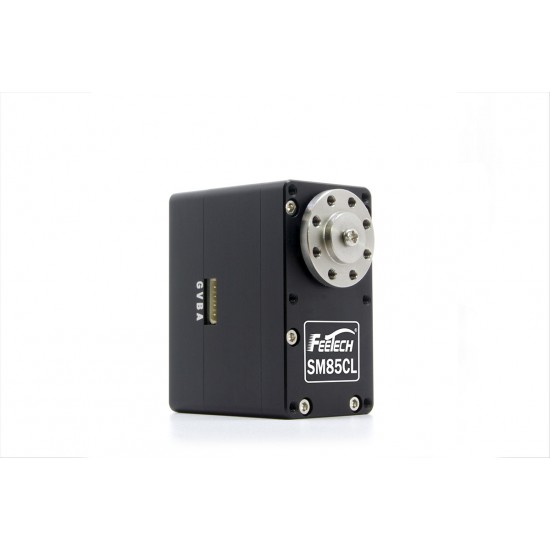

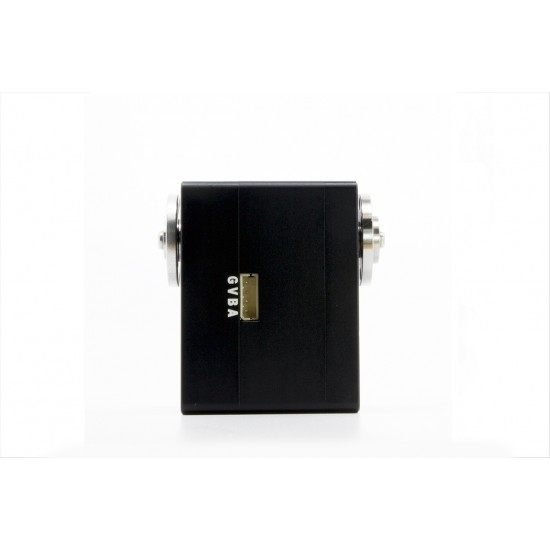

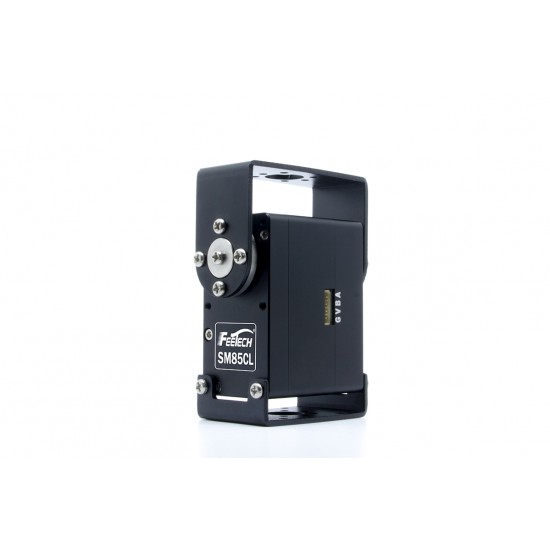

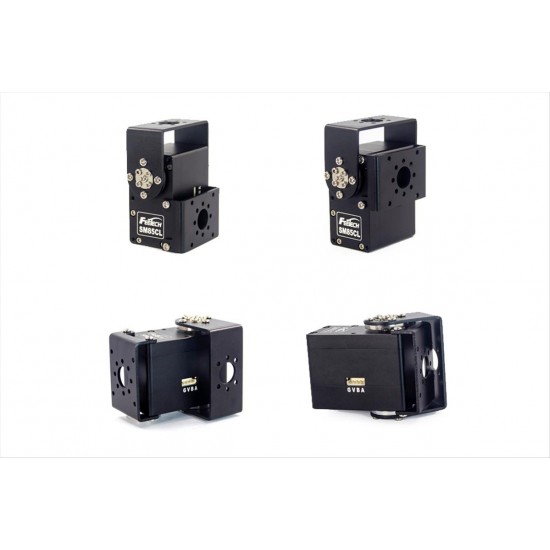

Name: Feetech SM-85CL-C001 12V 85Kg Serial RS485 Bus Servo Motor
Brand: Feetech
SKU: 07699
Price: 15033.00 INR
Availability: OutOfStock

Feetech SM-85CL-C001 12V 85Kg Serial RS485 Bus Servo Motor

Feetech

Feetech SM-85CL-C001 12V 85Kg Serial RS485 Bus Servo Motor

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹15,033.00

₹12,739.83 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 127
B2B GST Credit Available

Price in reward points: 12739

Stock: 0 in Stock
SKU: 07699
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Feetech SM-85CL-C001 12V 85Kg Serial RS485 Bus Servo Motor

The Feetech SM-85CL-C001 is a high-performance industrial-grade servo motor designed for precision control, heavy-load applications, and intelligent robotic systems. Featuring an advanced RS485 serial communication interface, this servo enables multi-device networking, real-time feedback, and accurate motion control, making it ideal for robotics, automation, and mechanical systems.

With a powerful 85Kg.cm high torque output at 12V, the SM-85CL-C001 is built to handle demanding tasks such as robotic arms, humanoid robots, industrial automation equipment, and smart machinery. Its robust metal gear construction ensures durability, long service life, and reliable performance even under continuous operation.

Datasheet

Specifications

Model: SM-85CL-C001
Product Name: 12V 85kg.cm Serial Control RS485 Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～70℃

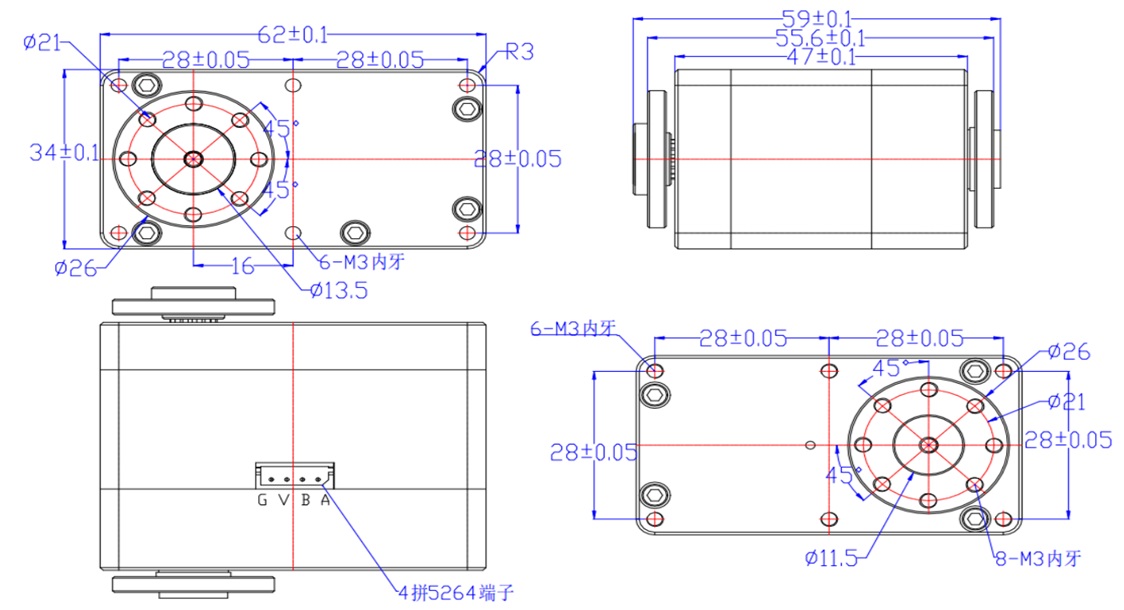

Dimensions: A：62mm B：34mm C：47mm
Weight: 215g
Gear type: Steel Gear
Limit angle: No Limiter
Bearing: 2 Ball bearings

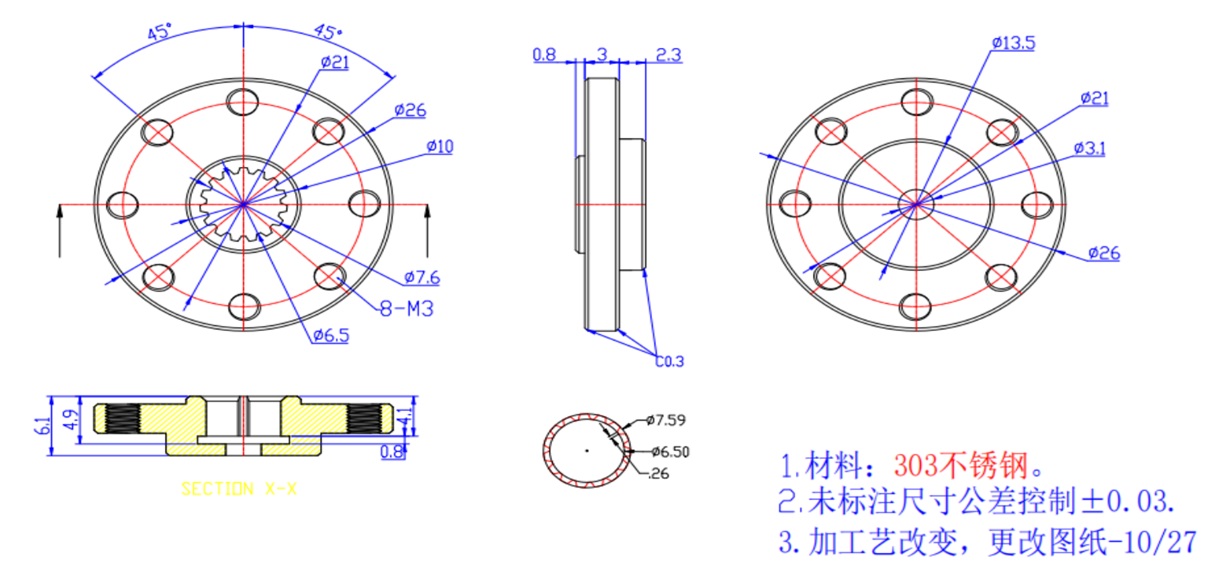

Horn gear spline: 15T(7.6mm)
Horn type: Aluminium
Case: Aluminium
Connector wire: 150mm ±5 mm
Motor: Coreless motor
Operating Voltage Range: 12V
No load speed: 0.27sec/60degree@12V 37RPM
Runnig current(at no load): 200 mA@12V
Peak stall torque: 85kg.cm@12V
Rated torque: 28kg.cm@12V
Stall current: 3200 mA@12V
Command signal: Bus Packet Communication RS485
Protocol Type: Half duplex Asynchronous Serial Communication
ID range: 0-253
Communication Speed: 38400bps ~ 1 Mbps
Running degree: 360° (when 0~4095)
Feedback: Position, Speed, Voltage, Load, Temperature
Operating mode: Servo mode / motor mode

Package Includes

1x SM-85CL-C001 12V 85Kg Serial RS485 Bus Servo Motor
