Name: Feetech FT-995M-C001 7.4V 95KG 180 Degree Servo Motor
Brand: Feetech
SKU: 07695
Price: 6118.00 INR
Availability: OutOfStock

Feetech FT-995M-C001 7.4V 95KG 180 Degree Servo Motor

Feetech

Feetech FT-995M-C001 7.4V 95KG 180 Degree Servo Motor

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹6,118.00

₹5,184.75 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 52
B2B GST Credit Available

Price in reward points: 5184

Stock: 0 in Stock
SKU: 07695
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

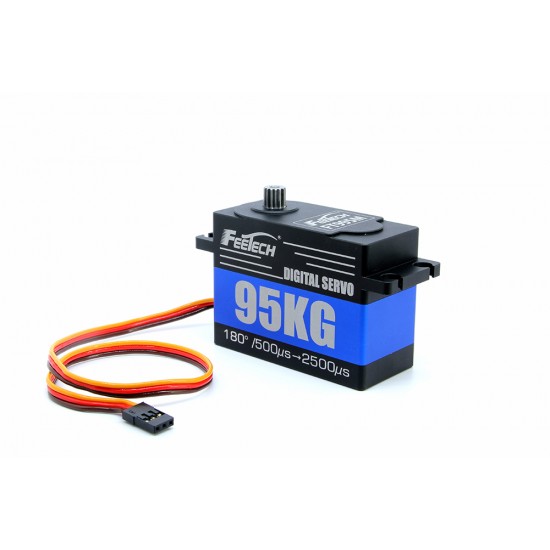

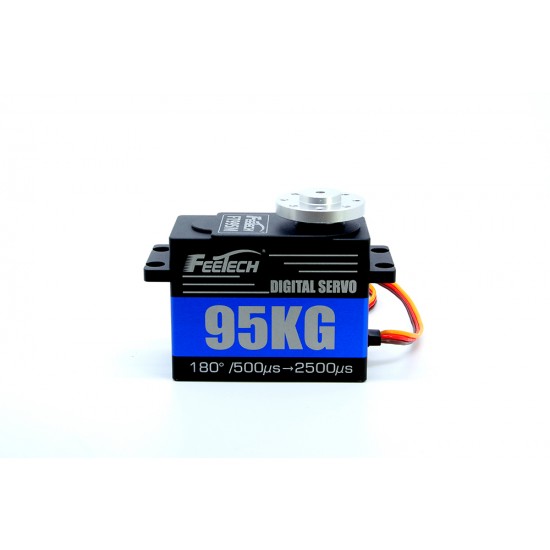

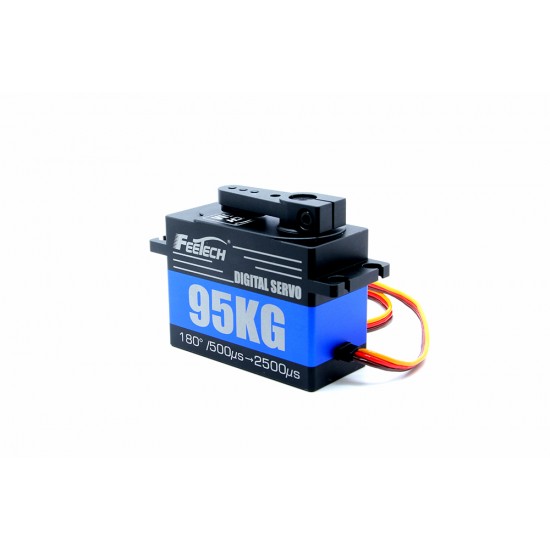

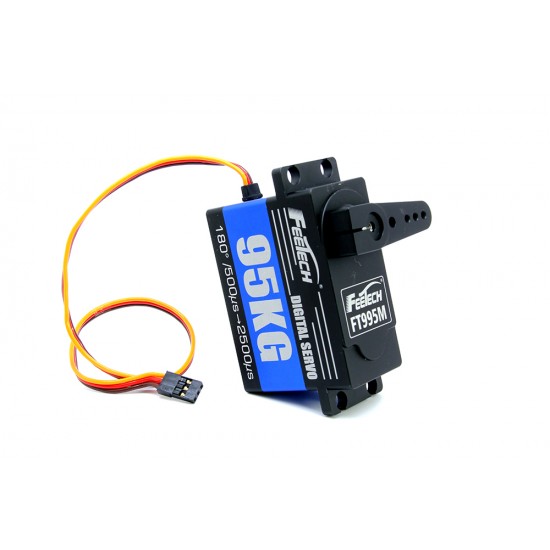

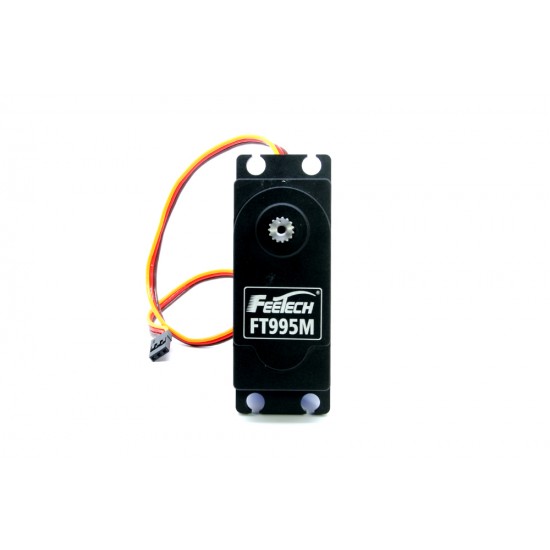

Feetech FT-995M-C001 7.4V 95KG 180 Degree Servo Motor

The Feetech FT-995M-C001 7.4V 95KG 180° Servo Motor is a high-performance, heavy-duty digital servo designed for applications requiring exceptional torque, precision, and durability. Engineered with robust metal gears and advanced control circuitry, this servo is ideal for robotics, industrial automation, RC vehicles, and large-scale mechanical projects.

Operating at 7.4V, the FT-995M-C001 delivers an impressive torque output of up to 95KG·cm, making it suitable for handling demanding loads with ease. Its 180-degree rotation range provides flexible motion control, while the high-resolution digital control ensures accurate positioning, fast response, and smooth operation.

Built with a durable metal gear system and a strong housing, this servo offers excellent wear resistance and long service life, even under continuous or high-stress conditions. The servo also features stable performance, low noise, and efficient power consumption, making it reliable for both hobbyist and professional applications.

Datasheet

Specifications

Model: FT-995M-C001
Product Name: 7.4V 95KG 180 Degree Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

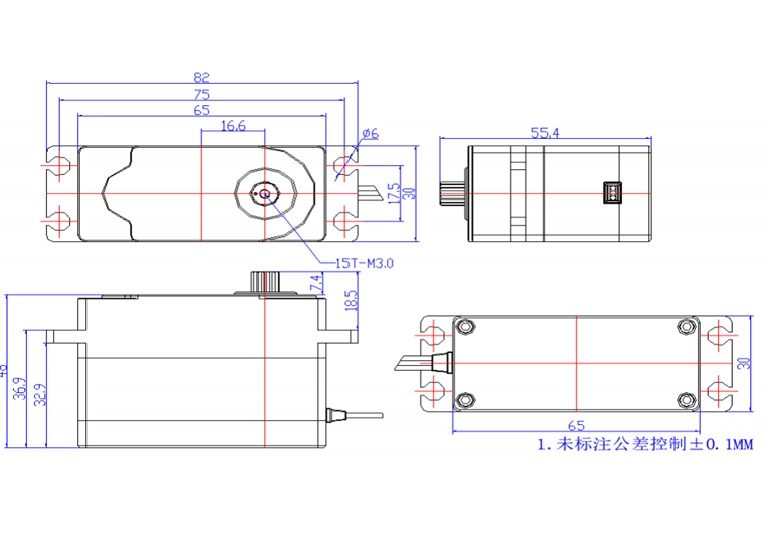

Size A: 65mm B：30mm C: 48mm
Weight 187.5g± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 15T/7.6mm
Gear Ratio: 1/399
Case: Aluminum
Connector wire: 30±0.5CM
Motor: Core Motor
Operating Voltage Range: 6-9V
Idle current(at stopped): [email protected]
No load speed: 0.268sec/60°(40RPM)@7.4V
Runnig current(at no load) : [email protected]
Peak stall torque: [email protected] / [email protected]
Rated torque: [email protected]
Stall current: [email protected]
Command si gnal: Pulse width modulation
Control System Type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180±5°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwise (1500→2500 μ sec)

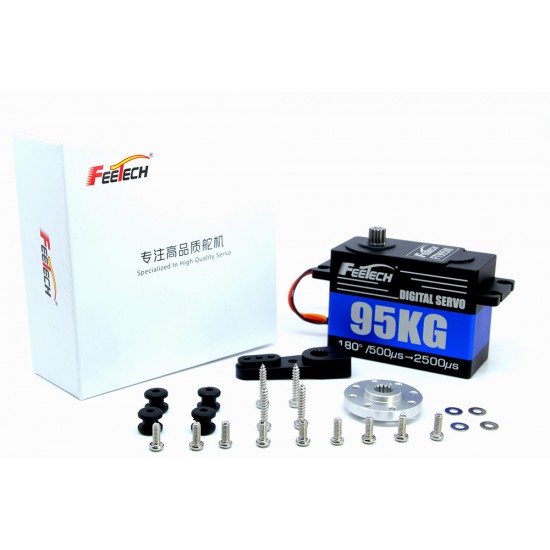

Package Includes

1x FT-995M-C001 7.4V 95KG 180 Degree Servo Motor
