GROW K215-V1.3 Fingerprint Control Board

GROW K215-V1.3 Fingerprint Control Board

User Manual

• Classification : Fingerprint Control Board
• Power Supply : DC10--30V
• Stand-by Mode Current : 40mA
• Fingerprint Capacity : 200
• Output : None

Specifications

• Power supply: DC10--30V,
• Stand-by current for control board: 40mA
• Fingerprint capacity: 200
• Size:36*70mm
• Relay Function: Normally Open or 1-20 second
• LED can off in sleep mode: long press (about 10s) the SET button, LED will be off in sleep mode

Operation Instruction

1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.

2. When back to factory default, press SET button until hear “Di” and music,means initialization operation successful.

3. Mode Selection Usage: when chose 2, operating time of the relay is 1s-20s after pass fingerprint,can adjust by knob. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.

Note:

• In factory status, any fingerprint can pass, after register fingerprints, this function is invalid;
• Set sleep mode, long press (about 10s) the SET button and do not release your finger until hearing the "DiDiDi" sound and the music,means initialization operation successful.

K215-V1.3 has a wide range of use, which can be used in automobile control, access control and other occasions.

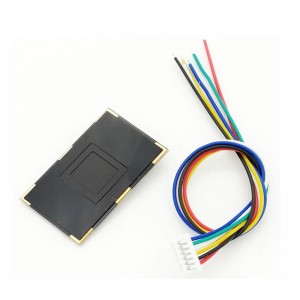

K215-V1.3 can be connected with R300,R301T,R302,R303T,R307,R501,R502,R502-A,R502-AW,R503 fingerprint module.

Connection Diagram
