LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port - Without Pin Header

LuckFox Pico Plus are low-cost micro-linux development boards based on Rockchip RV1103 chip , aiming to provide developers with a simple and efficient development platform. RV1103 is a highly integrated IPC vision processor SoC dedicated to artificial intelligence related applications. It is based on a single-core ARM Cortex-A7 32-bit core, integrates NEON and FPU, and has a built-in NPU that supports INT4 / INT8 / INT16 mixed operations, with a computing capacity of up to 0.5TOPs.

User Manual / Datasheet / Example Codes Etc.

Specifications

• Processor : Cortex [email protected] + RISC-V
• NPU : 0.5TOPS, supports int4, int8 and int16
• ISP : Input 4M @30fps (Max)
• Memory : 64Mb DDR2
• USB : USB 2.0 Host/Device
• Camera : MIPI CSI 2-lane
• GPIO : 25 × GPIO pins
• Ethernet port : 10/100M Ethernet controller and embedded PHY
• Default Storage : SPI NAND FLASH (1Gb)

Applications

• smart home device
• Industrial Automation Equipment
• Robots and UAVs
• Intelligent monitoring equipment
• Intelligent Transportation Equipment
• smart medical equipment

LuckFox Pico Plus Without Pin Header Version

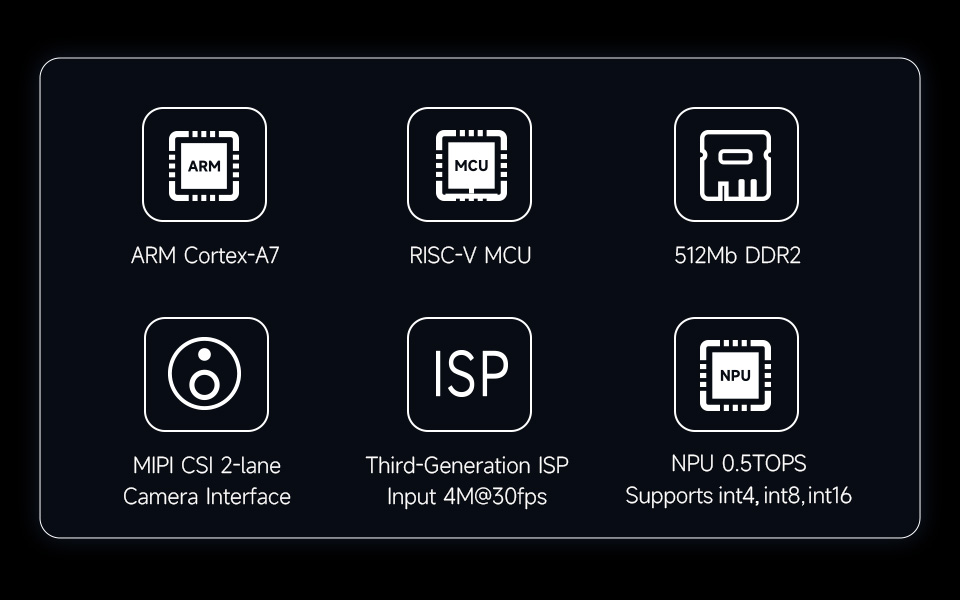

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
• Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
• Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
• Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
• Integrated with built-in POR, audio codec and MAC PHY

Easier To Develop

Integrates TF Card Slot, Camera Interface And Ethernet Port

SLC NAND FLASH

For A Better User Experience

Pin Definition

What's On Board

Dimensions
