RP2350 1.43inch AMOLED Display Development Board, 466×466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip

RP2350 1.43inch AMOLED Display Development Board, 466×466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip [Without Case]

This product adopts RP2350 chip with built-in high-capacity Flash memory, onboard 1.43inch AMOLED display, capable of smoothly running GUI applications such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong expandability. It is suitable for the quick development of the RP2350 HMI applications.

User Manual / Datasheet / Example Codes Etc.

Features

• Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
• Built-in 520KB of SRAM and 16MB of on-chip Flash
• Onboard 1.43inch AMOLED display, 466 × 466 resolution, supporting 16.7M color
• AMOLED screen display uses an SPI interface, capacitive touch screen uses an I2C interface, supporting interrupt output
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, step counting, etc.
• Built-in PCF85063 RTC chip, with a reserved SH1.0 battery slot (supporting charging) for RTC functionality implementation
• Onboard RST and BOOT side buttons
• Onboard 3.7V MX1.25 lithium battery recharge/discharge header
• Built-in TF card slot, supports external TF card storage for images or files
• Onboard USB Type-C port for power supply, downloading and debugging, making development more convenient
• Lead out the UART and I2C SH1.0 4PIN interface, and reserve a 2×14PIN 1.27mm pitch interface
• USB1.1 host and device support
• Low-power sleep and dormant modes
• Temperature sensor
• Accurate clock and timer on-chip
• On-chip accelerated floating-point library

Specifications

• Display Size: 1.43 inch
• Display Panel: AMOLED
• Resolution: 466×466
• Display Colors: 16.7M
• Brightness: 350 cd/㎡
• Contrast Ratio: 60000:1
• Communication Interface: SPI
• Driver IC: C05300
• Touch: Supported
• Touch IC: FT6146

Package Includes

• RP2350-Touch-AMOLED-1.43 x1
• SH1.0 4PIN cable ~100mm x2

Interface definition

adapting multiple GPIO interfaces, more convenient for development, offers strong flexibility

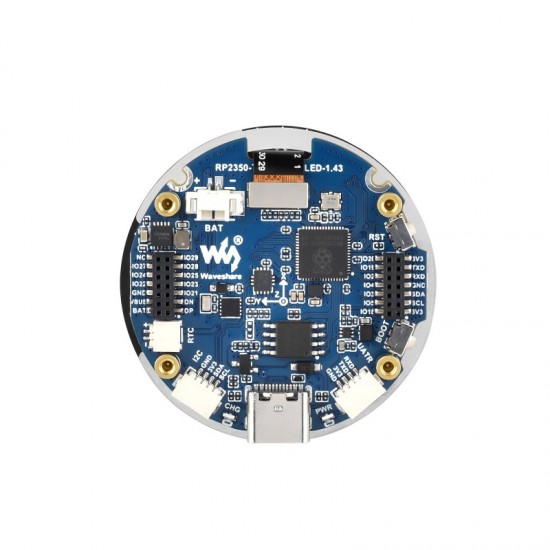

What's On Board

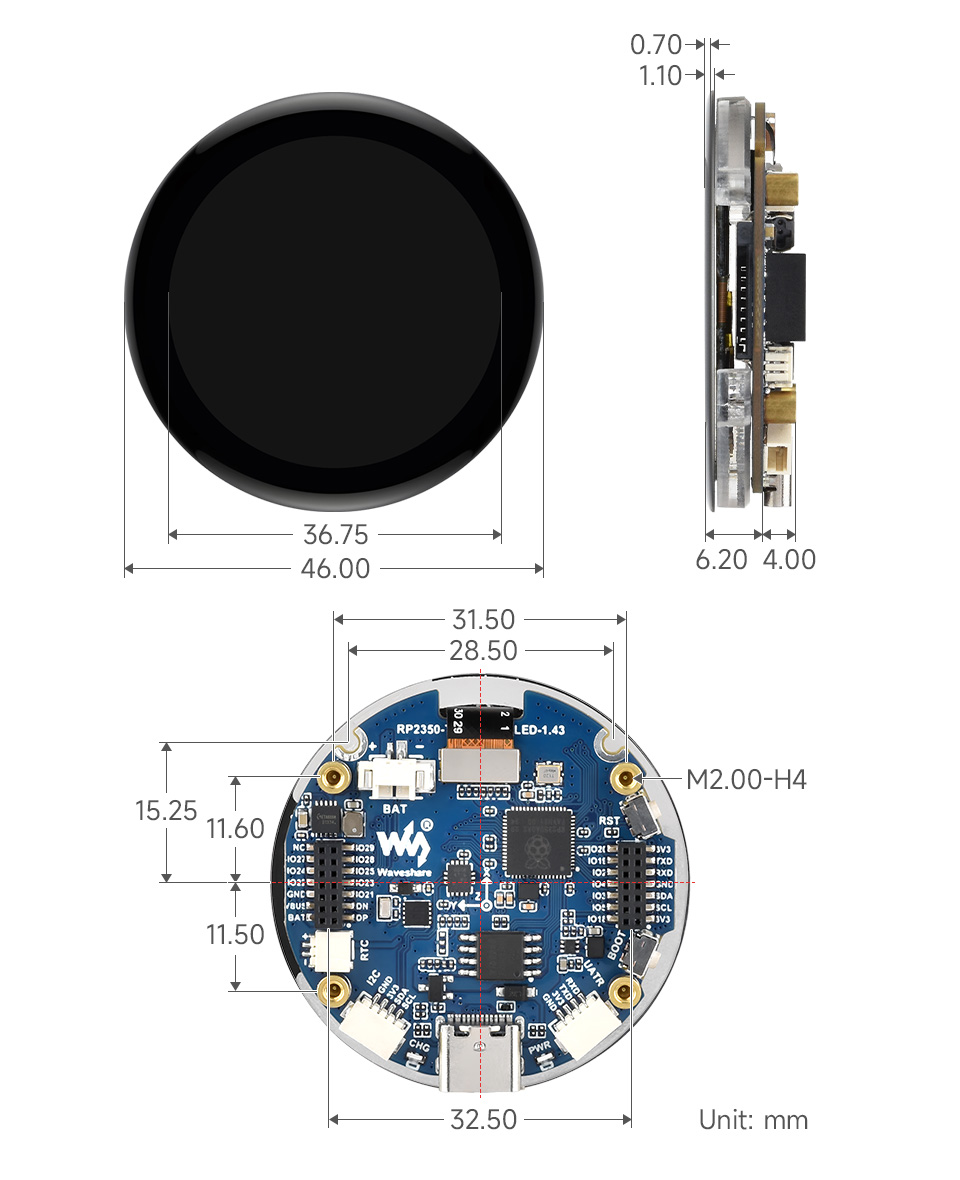

Dimensions
