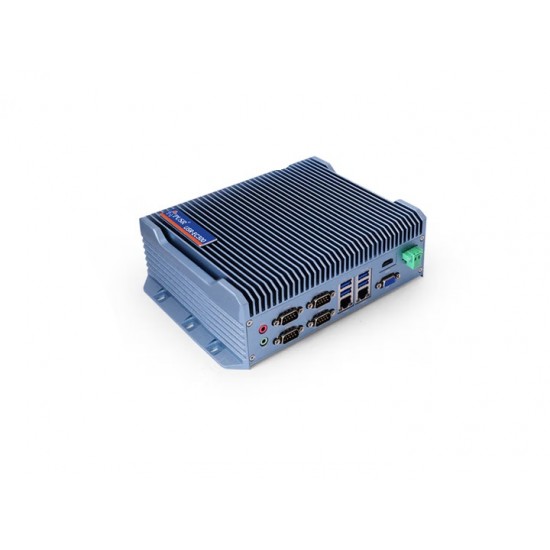

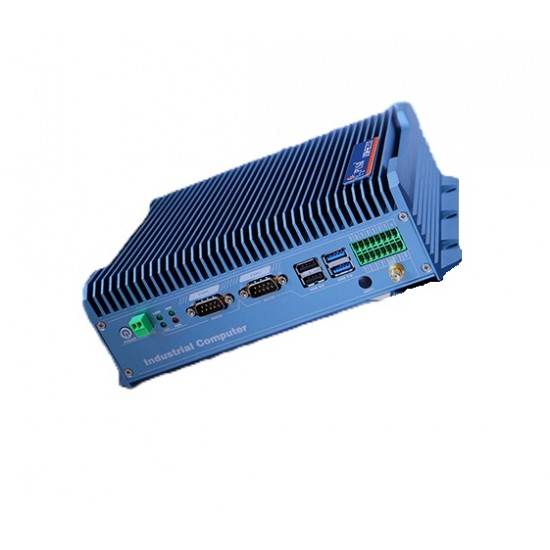

USR-EC300 X86 Industrial Grade Mini Computer - 8GB LPDDR4 RAM + 128GB Storage - Based On Intel I5 7200U Processor - Windows 11 Pro Preinstalled

USR-EC300 X86 Industrial Grade Mini Computer - 8GB LPDDR4 RAM + 128GB Storage - Based On Intel I5 7200U Processor - Windows 11 Pro Preinstalled Multi System Compatibility Windows / Linux / Ubuntu

The USR-EC300 X86 Industrial Grade Mini Computer is a powerful, space-saving computing solution designed for industrial, commercial, and high-demand applications. Equipped with 8GB LPDDR4 RAM and 128GB high-speed storage, it ensures smooth multitasking, fast boot times, and reliable data handling.

Powered by the Intel i5-7200U processor, this mini PC delivers efficient performance with low power consumption, making it ideal for automation systems, digital signage, kiosks, manufacturing control, and 24/7 operational environments. With Windows 11 Pro preinstalled, you get enhanced security, improved productivity features, and seamless integration with modern applications right out of the box.

Built with industrial-grade durability and designed for continuous operation, the USR-EC300 provides dependable performance in challenging conditions while maintaining a compact footprint for easy installation in tight spaces or embedded setups.

Datasheet

Features

• Intel® Core™ i5-7200U, with a base frequency of 2.5GHz, a single-core turbo frequency of 3.1GHz, and a 2-core 4-thread CPU
• 8G DDR4 +128G storage, flexible selection of different capacity configuration
• 2*Gigabit RJ45,2*RS232/RS485+4*RS232，6*USB 3.0/2*USB 2.0
• HDMI+VGA，4K HD Display，support synchronous/asynchronous dual-screen display content
• Multi - system Compatibility (Windows / Linux / Ubuntu); //Note:Windows system is standard configuration
• Full aluminum alloy , fanless cooling;

Specifications

• Processor
• Intel® Core™ i5-7200U (2.5 GHz, up to 3.1 GHz, 2 cores, 4 threads)
• BIOS: AMI UEFI 64M bit
• Memory
• Architecture: DDR4 1*SO-DIMM
• Memory: 8GB (Single SO-DIMM Slot, maximum support32GB)

• Storage
• Storage: 128G
• interface: MiniPcie

• Display
• HDMI: 1xHDMI,max resolution up to 4096*2160 60Hz
• DP: None
• VGA: 1*VGA,max resolution up to 1920*1200 60Hz
• Dual display: Supports synchronous/asynchronous display

• Ethernet: LAN: 1*Line-out  1*Mic-in

• I/O

• Serial: 2*RS232/RS485+4*RS232 (DB9)
• USB: 6*USB 3.0，2*USB 2.0
• WatchDog: 255-level programmable settings
• GPIO: GPIO: 14 channels

• Expansion slot: 1*MSATA  1*2.5HDD/SSD

• Operating system: Windows

• Power
• Input Voltage: DC 12V-36V
• Minimum Input Power: 12V/5A

• Power consumption
• No-load: 15W
• Full-load: Depends on CPU, total power not exceeding 100W

• Mechanical parameters
• Enclosure: Full aluminum enclosure
• Installation mode: Desktop mounting, DIN rail mounting, embedded mounting

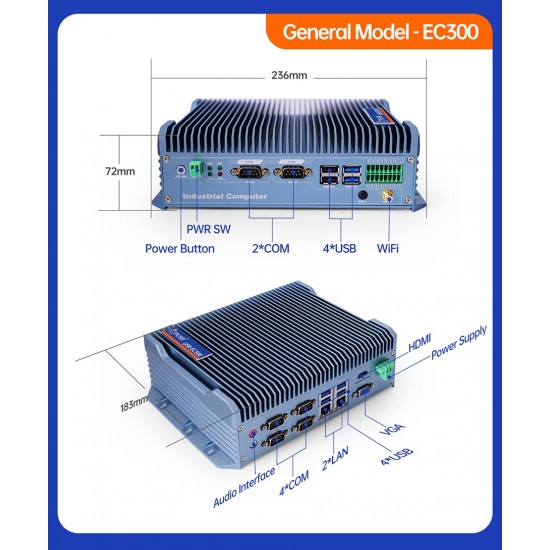

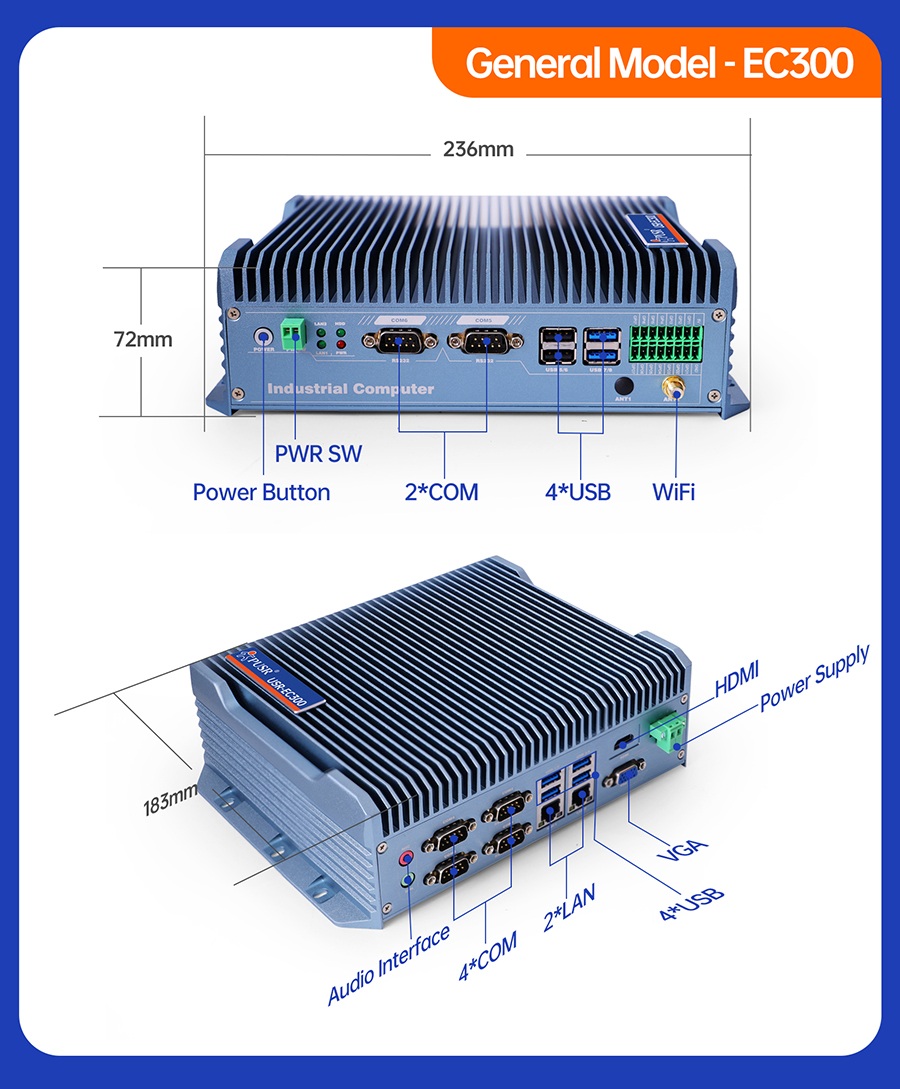

• Dimensions: 236mm*183mm*72mm
• Weight: 2kg

• Enviromental parameter
• Operating temperature: -20~60°C(with wide-temperature SSD)
• Storage temperature: -40°C~85°C
• Relative humidity: 5~95%(non-condensing)
• Vibration during operation: SSD:5~500Hz, 2Grms operation
• Shock during operation: Operation:10G@11MS  Non-operation:30G@11ms
• ESD: Contact 6KV, Air 8KV

Package Includes

• 1x USR-EC300
• 1x Power Adapter with Power Terminal
• 1x WiFi Antenna
