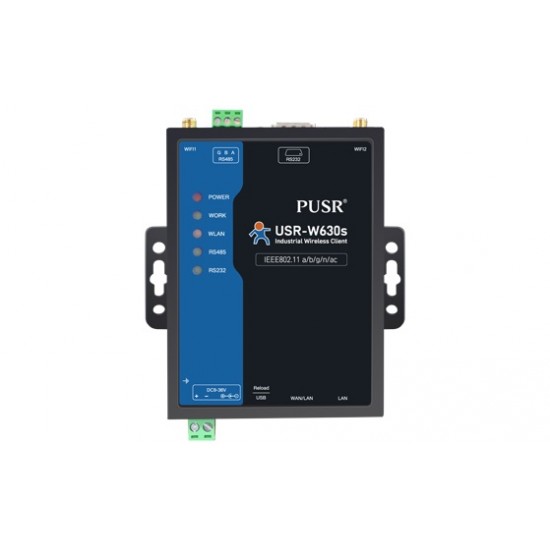

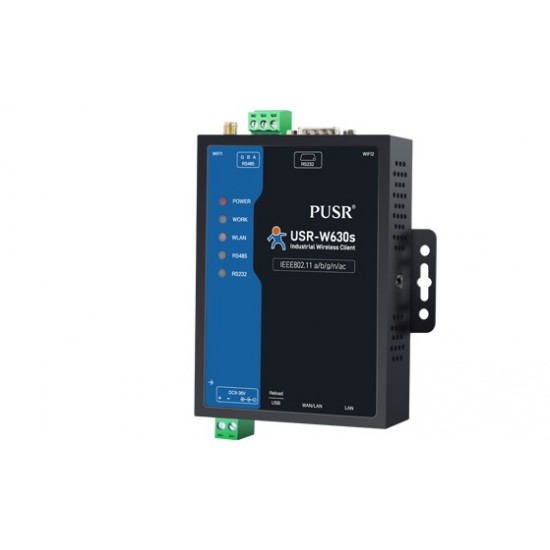

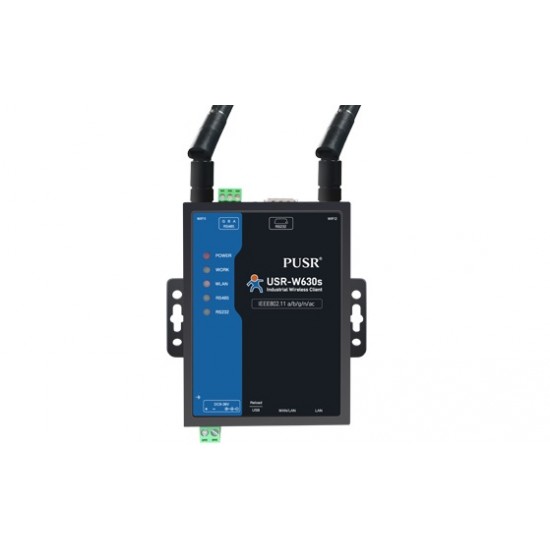

USR-W630S 2.4/5GHz Dual Band Serial/Ethernet to Wi-Fi Converter - Wi-Fi 5 - Support MQTT/TCP/UDP/HTTP & ModBus Gaterway

USR-W630S 2.4/5GHz Dual Band Serial/Ethernet to Wi-Fi Converter - Wi-Fi 5 - Support MQTT/TCP/UDP/HTTP & ModBus Gaterway - Din Rail Mount

USR-W630s is a WIFI5 industrial wireless client with high speed, wide connection, lowlatency andhighstability. It can carry more than 8 WIFI clients in AP mode. It has rich hardware interfaces: 1*RS232, 1*RS485,Ethernet port (1LAN+1WAN/LAN), WiFi antenna, supports AP/AP+STA/bridging mode, and can providestableandreliable networking solution for different scenarios and different industries.

This product adopts industrial-grade standards, wide temperature and voltage, strong hardwareprotection,and has passed a number of harsh environment tests; it has 1*RS232 and 1*RS485 serial ports whichcanworkatthe same time, supports MODBUS, MQTT, TCP, UDP and other transmission protocols;it has bothsoftwareandhardware watchdogs, which can ensure the device’s stable working; it can adapt to different industryscenariosand still operate stably and reliably in harsh and harsh environments.

This product DIN rail mounting installation, and is widely used in scenarios that require WIFI centralizedlarge-scale connection and low-latency requirements, such as: AGV cars, inspection robots, sortingmanipulators,smart warehousing, smart Medical care, smart factories, video surveillance, unmanned parkinglots, industrialautomation, smart transportation, smart cities and other scenarios.

• Datasheet
• Specs

Features

• Stable and reliable
• Fully industrial design, protection grade IP30;
• Supports desktop placement, wall-mounted installation;
• Wide voltage DC 9-36V input, with power reverse protection;
• Industrial grade design, wide temperature -25℃~+70℃ , EMC level 3 protection;
• Built-in hardware watchdog, fault self-detection, self-repair, and firmware backup andrestorationfunctions to ensure system stability and not crash;
• Flexible networking
• Support dual-band WIFI (2.4G and 5.8G) AP/AP+STA/bridge mode arbitrary networking;

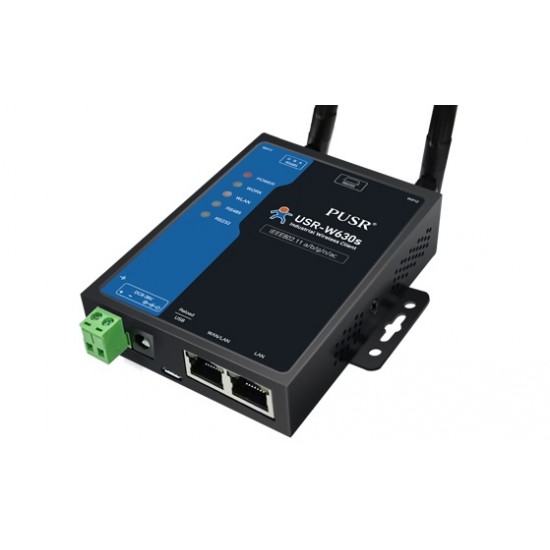

• Supports 1*10/100M WAN/LAN and 1*10/100M LAN port;
• Supports RS232/RS485, making serial port data collection easier;
• Compatible with mainstream industrial protocols: TCP/UDP/MODBUS/HTTP/MQTT/SNMP, etc.;
• Supports connection to mainstream cloud platforms such as Alibaba Cloud and AmazonCloud, allowing devices to easily connect to the cloud;
• Powerful
• Supports a complete anti-drop mechanism to ensure the stability of data transmission
• Supports wired/STA multi-network intelligent backup function to keep links open at all times;
• Supports PUSR Cloud service. You can open the built-in web page of the wireless client throughPUSRCloud for remote operation and maintenance, which facilitates centralized management of equipment systems and improves operation and maintenance efficiency;
• Supports SNMP, NTP time calibration, MAC-IP binding, anti-question restrictions andother featuresFunction.

Dimensions
