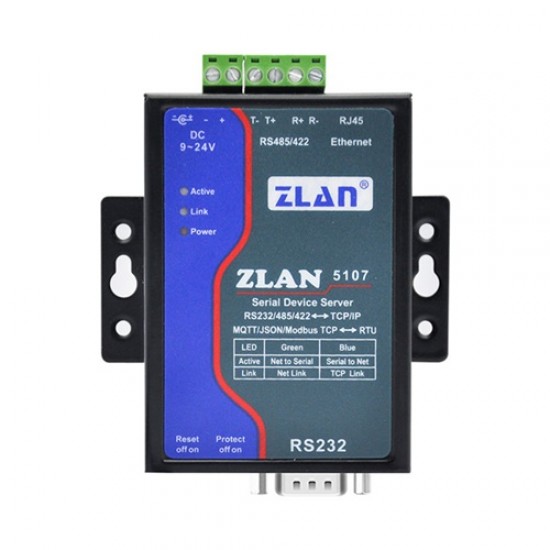

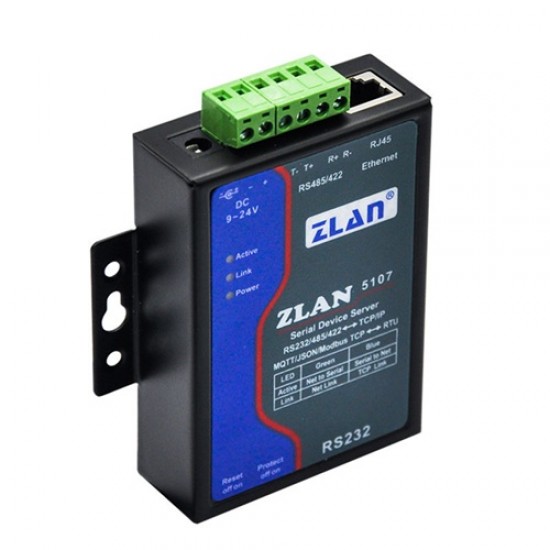

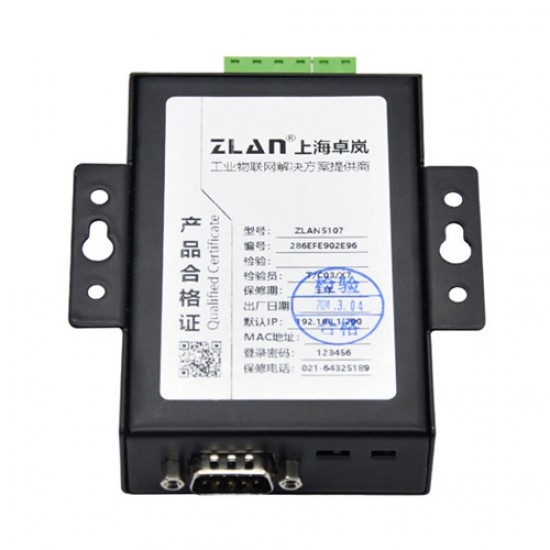

Name: ZLAN ZLAN5107 RS232/422/485 to Ethernet Converter - IOT Modbus RTU to TCP Isolated Serial Server Industrial Gateway
Brand: ZLAN IoT
SKU: 08566
Price: 2737.00 INR
Availability: OutOfStock

ZLAN ZLAN5107 RS232/422/485 to Ethernet Converter - IOT Modbus RTU to TCP Isolated Serial Server Industrial Gateway

New

ZLAN IoT

ZLAN ZLAN5107 RS232/422/485 to Ethernet Converter - IOT Modbus RTU to TCP Isolated Serial Server Industrial Gateway

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,737.00

₹2,319.49 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 23
B2B GST Credit Available

Price in reward points: 2319

Stock: 0 in Stock
SKU: 08566
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

ZLAN ZLAN5107 RS232/422/485 to Ethernet Converter - IOT Modbus RTU to TCP Isolated Serial Server Industrial Gateway

ZLAN5107 is a RS232/485/422 device data collector/iot gateway specially designed for industrial environments, with serial server, Modbus gateway, MQTT gateway, RS232/485/422 to JSON and other functions in one. It has 3 interfaces

RS232/485/422 (use either one) and an Ethernet interface. It supports desktop screw hole installation, easy to install. Terminal type power supply /5.5MMround hole adapter power supply, 9 ~ 24V wide voltage input. Compared with ordinary serial

server, it has higher cost performance.

When used as a Modbus gateway, 5107 supports Modbus TCP to Modbus RTU, so that the host computer can use Modbus TCP protocol to collect data of

RS232/485/422 Modbus RTU devices. On the contrary, if the serial port serves as the primary station, it can also be used. 5107 supports more advanced Modbus gateway functions, including configurable Modus gateway ZLMB, storage Modbus gateway, etc., which fully meets the various configurations and usage of Modbus gateway. The multi-host feature allows multiple computer masters to access a slave device withanRS232/485/422 serial port at the same time.

Datasheet

Features

Industrial power supply: with wiring terminals, power plug two kinds of power wiring, easy to use in industrial occasions. Can be 9 ~ 24V wide voltage supply
With RS232/485/422 three kinds of serial port interface. You can choose one to use.
Network port 2KV surge protection.
Support TCP server, TCP client, UDP mode, UDP multicast. The TCP client also supports the TCP server function. The TCP server supports 30 TCP connections and the TCP client supports 7 destination IP addresses.
The baud rate ranges from 300 to 921600bps, and the data bit ranges from7to8bits. The parity bit can be none, odd, even, mark, or space.
Supports the MAC address sending function when the device is connected, facilitating device management by the cloud.
Provide computer side search, configure device secondary development kit DLL development library.
Password authentication is required for TCP connection establishment to ensure connection security.

Specifications

Interface: 485/422: terminal; 232:DB9,
Power supply: 5.5mm, positive inside and negative outside, standard power outlet; Wiring terminal mode.
Size: L x W x H =9.4cm×6.5cm×2.5cm（±1mm
Ethernet: RJ45
Serial port: RS232/485/422X1:RXD，TXD，GND，CTS，RTS
Protocol: ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、DHCP、DNS
Power: 9～24V DC;30mA@12V DC
Operation Temperature: -40~85℃
Storage Temperature: -45~120℃

Package Includes

1x ZLAN ZLAN5107 RS232/422/485 to Ethernet Converter - IOT Modbus RTU to TCP Isolated Serial Server Industrial Gateway
