Name: ESP32-C6 1.8inch Touch AMOLED Display Development Board, 368 × 448 Resolution, Supports Wi-Fi 6, BLE 5 And Zigbee, With 3.7V MX1.25 Lithium Battery
Brand: WaveShare Electronics
SKU: 33305
Price: 3165.00 INR
Availability: InStock

ESP32-C6 1.8inch Touch AMOLED Display Development Board, 368 × 448 Resolution, Supports Wi-Fi 6, BLE 5 And Zigbee, With 3.7V MX1.25 Lithium Battery

WaveShare Electronics

ESP32-C6 1.8inch Touch AMOLED Display Development Board, 368 × 448 Resolution, Supports Wi-Fi 6, BLE 5 And Zigbee, With 3.7V MX1.25 Lithium Battery

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹3,165.00

₹2,682.20 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 27
B2B GST Credit Available

Price in reward points: 2683

Stock: 6 in Stock
SKU: 33305
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

ESP32-C6 1.8inch Touch AMOLED Display Development Board, 368 × 448 Resolution, Supports Wi-Fi 6, BLE 5 And Zigbee, With 3.7V MX1.25 Lithium Battery

ESP32-C6-Touch-AMOLED-1.8 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.8inch capacitive AMOLED display, highly integrated power management IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec IC, and so on, which makes it easy for you to develop and integrate it into the products quickly.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with a ESP32-C6 high-performance RISC-V 32-bit processor with up to 160MHz operating frequency
Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, provides superior RF performance, with onboard antenna
Onboard 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM and external 16MB Flash memory
Type-C port, easier to use
Onboard 1.8inch capacitive touch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color
Built-in SH8601 display driver and FT3168 / FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Onboard PCF85063 RTC chip, powered by Lithium Batt through AXP2101 chip for uninterrupted power supply, with reserved RTC Batt pads for connecting a backup Batt, ensuring RTC function during the replacement of the main Batt
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting 1-ch I2C, 1-ch USB and 1-ch UART pads for external devices connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for expanded storage, fast data transfer, and transfer flexibility, suitable for applications such as data recording and media playback, simplifying circuit design
Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

Specifications

DISPLAY SIZ: 1.8inch
DISPLAY PANEL: AMOLED
Resolution: 368 × 448 pixels
Color: 16.7M
Brightness: 350cd/㎡
Contrast Ratio: 100000:1
Communication Interface: QSPI
Display Driver: SH8601
Touch: Supported
Touch IC: FT3168 / FT6146

Pacakage Includes

ESP32-C6-Touch-AMOLED-1.8 host x1
3.7V Lithium Batt x1
Screwdriver x1

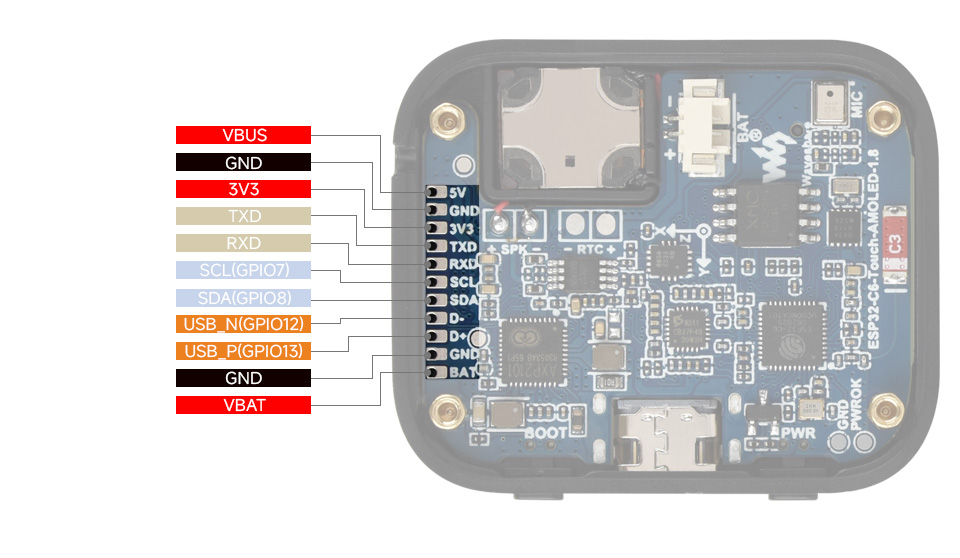

Pin Definition

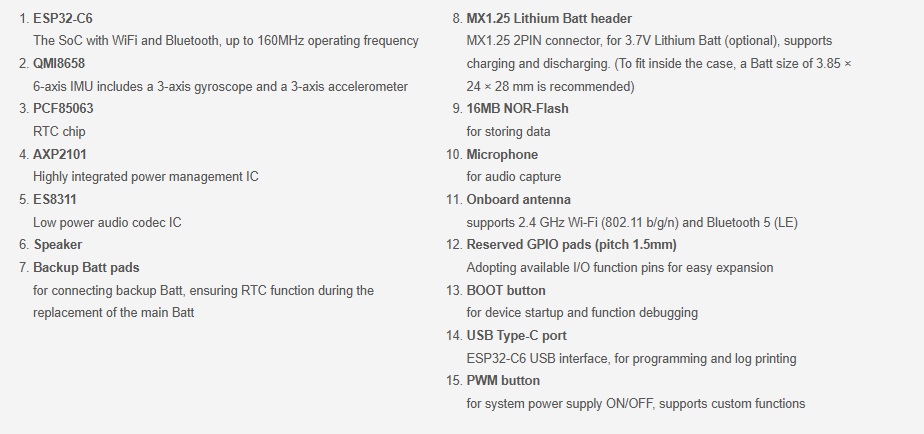

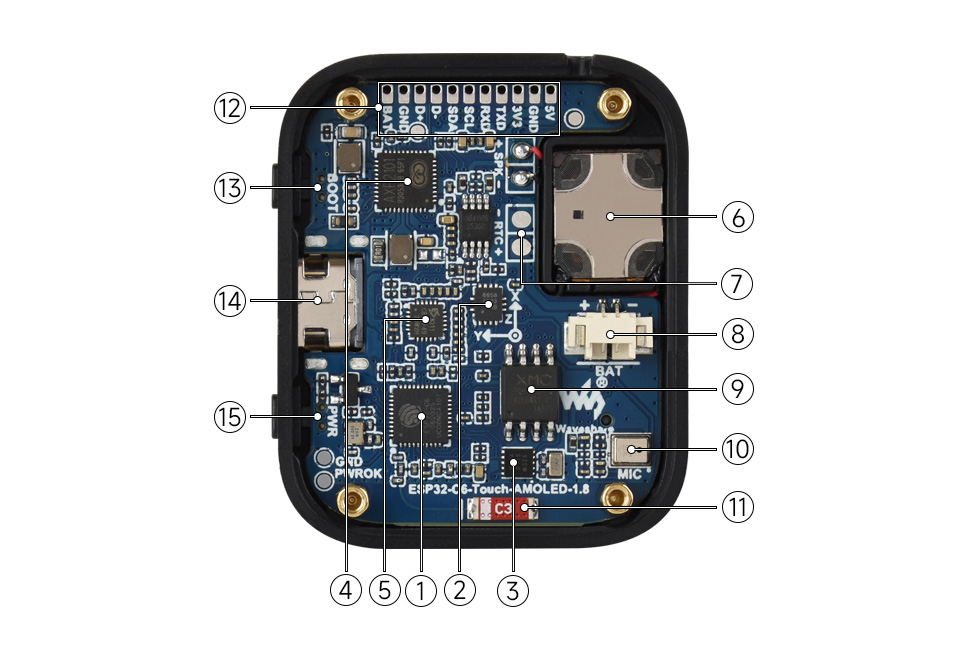

What's On Board

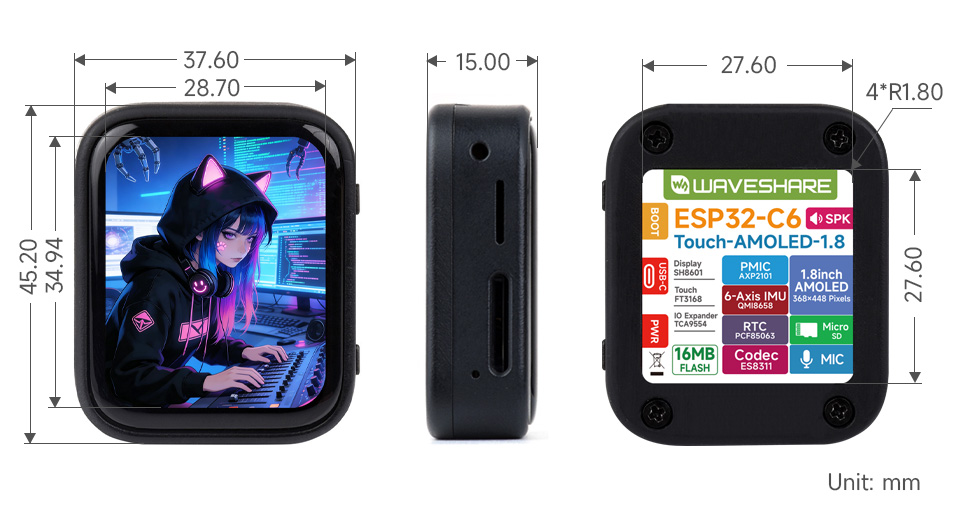

Dimensions
