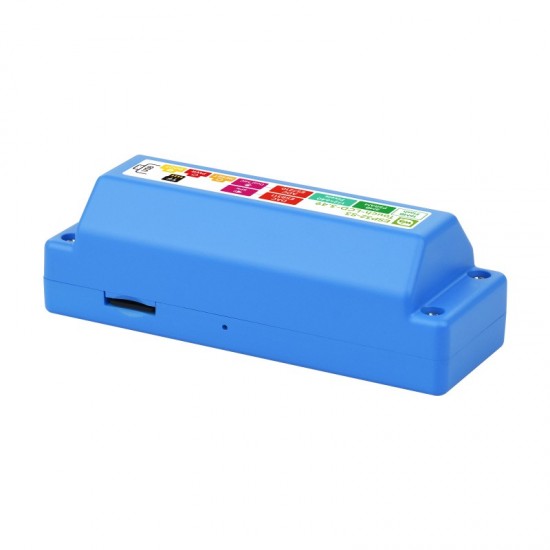

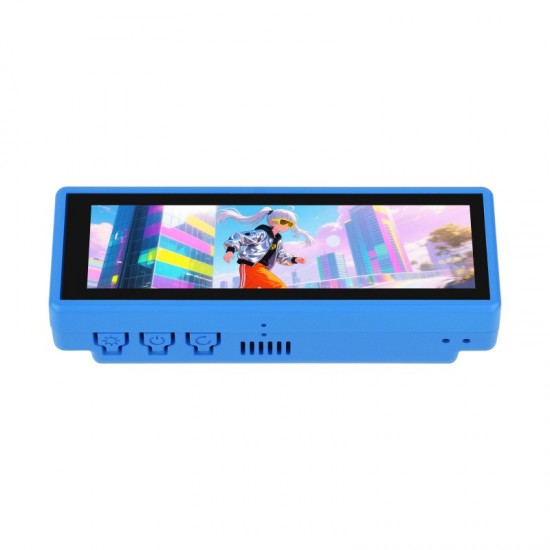

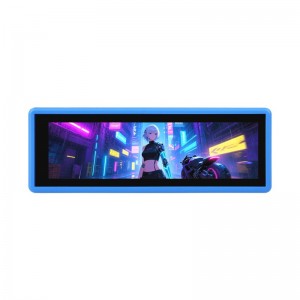

Name: ESP32-S3 High-Performance Development Board With 3.49inch IPS Capacitive Touch Display, 172 × 640 Resolution, Integrated With ESP32-S3R8 Dual-core Processor - Case A Type 18650 Battries Support
Brand: WaveShare Electronics
SKU: 32374
Price: 2985.00 INR
Availability: OutOfStock

ESP32-S3 High-Performance Development Board With 3.49inch IPS Capacitive Touch Display, 172 × 640 Resolution, Integrated With ESP32-S3R8 Dual-core Processor - Case A Type 18650 Battries Support

WaveShare Electronics

ESP32-S3 High-Performance Development Board With 3.49inch IPS Capacitive Touch Display, 172 × 640 Resolution, Integrated With ESP32-S3R8 Dual-core Processor - Case A Type 18650 Battries Support

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,985.00

₹2,529.66 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 25
B2B GST Credit Available

Price in reward points: 2530

Stock: 0 in Stock
SKU: 32374
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

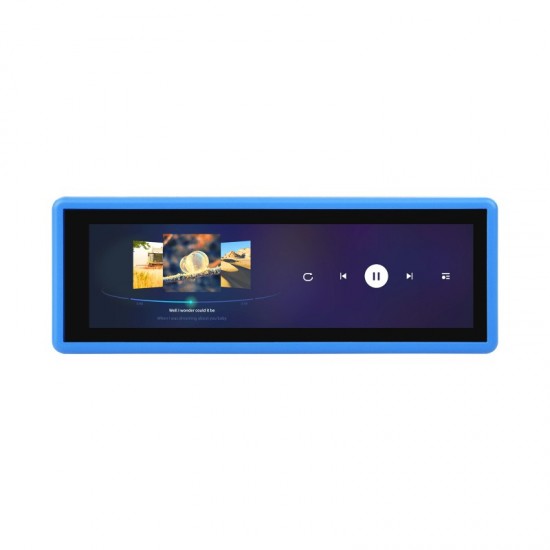

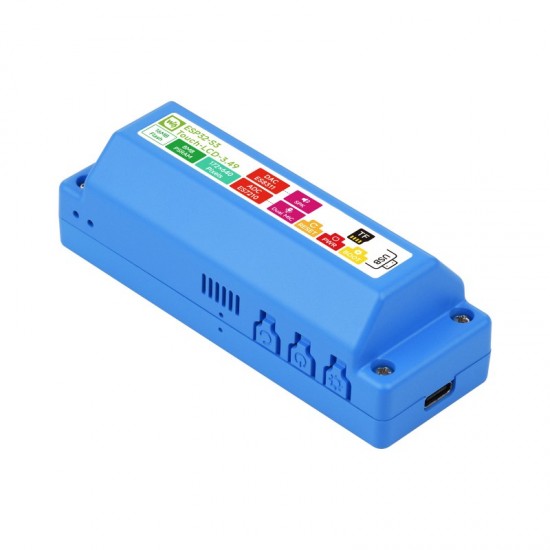

ESP32-S3 High-Performance Development Board With 3.49inch IPS Capacitive Touch Display, 172 × 640 Resolution, Integrated With ESP32-S3R8 Dual-core Processor - Case A Type 18650 Battries Support (Battery Not Included)

The ESP32-S3-Touch-LCD-3.49 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Onboard 3.49inch capacitive touch IPS display, highly integrated power management IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low-power audio codec IC, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly.

User Manual / Datasheet / Example Codes Etc.

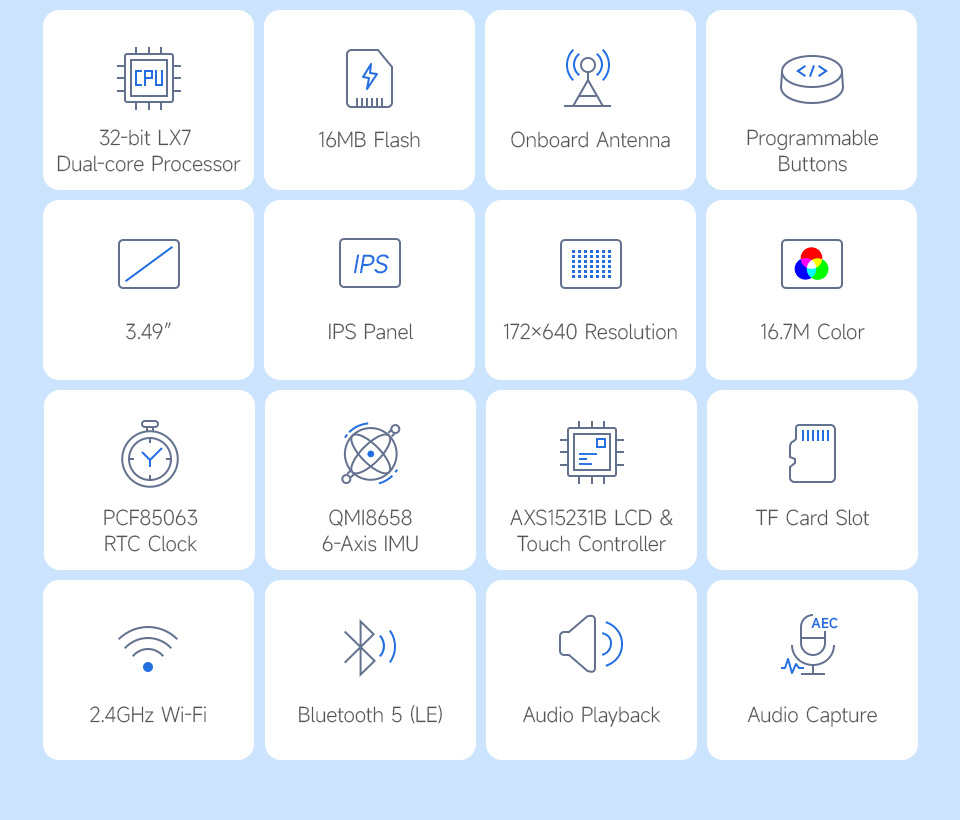

Features

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Onboard 3.49inch IPS capacitive touch display for clear color picture display, 172 × 640 resolution, 16.7M color
Equipped with dual microphone array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-up
Built-in AXS15231B LCD & touch controller, using QSPI and I2C interfaces for communication respectively
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip for RTC functionality
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 18650 Lithium battery holder
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Reserved 22PIN 2.54mm pitch through-hole pads for easy connection to external modules or functional expansion, enhancing development flexibility.

Specifications

Display Panel: LCD
Display Size: 3.49 inch
Touch Type: Capacitive touch
Resolution: 172 × 640
Display Colors: 16.7M
Brightness: 350 cd/m2
Contrast Ratio: 1200:1
Display Interface: QSPI
Driver IC: AXS15231B
Touch Interface: I2C

Package Includes

ESP32-S3-Touch-LCD-3.49 x1

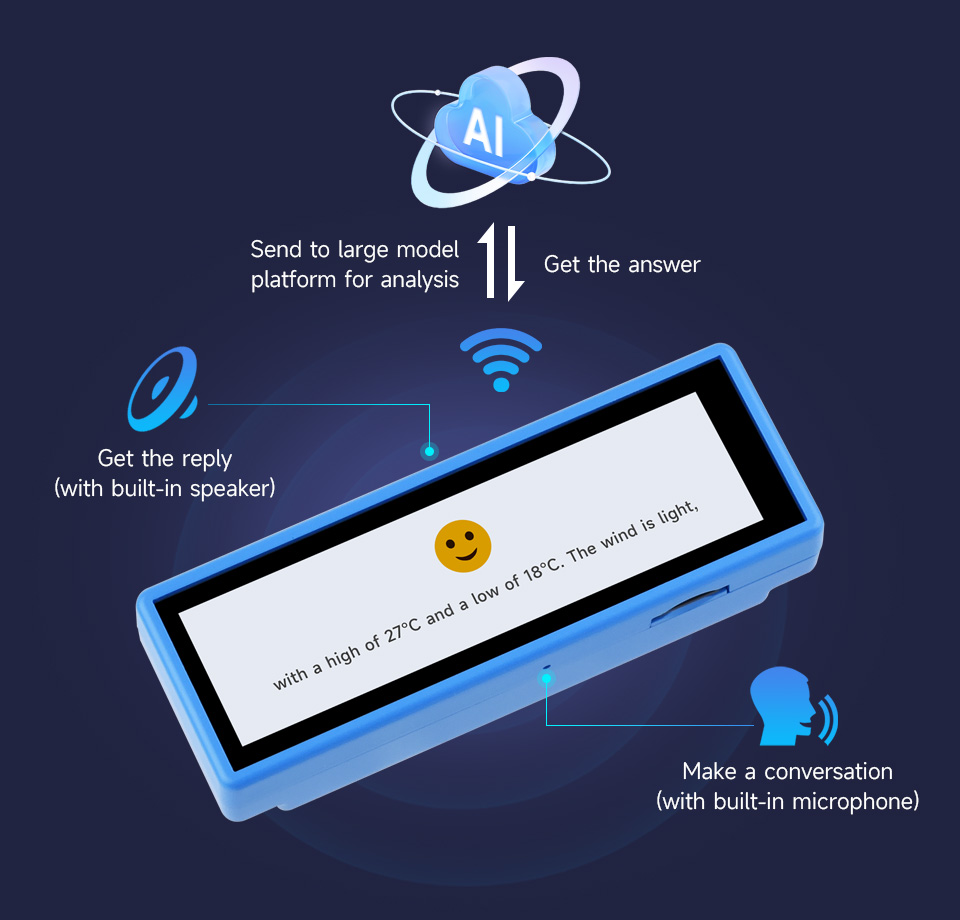

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

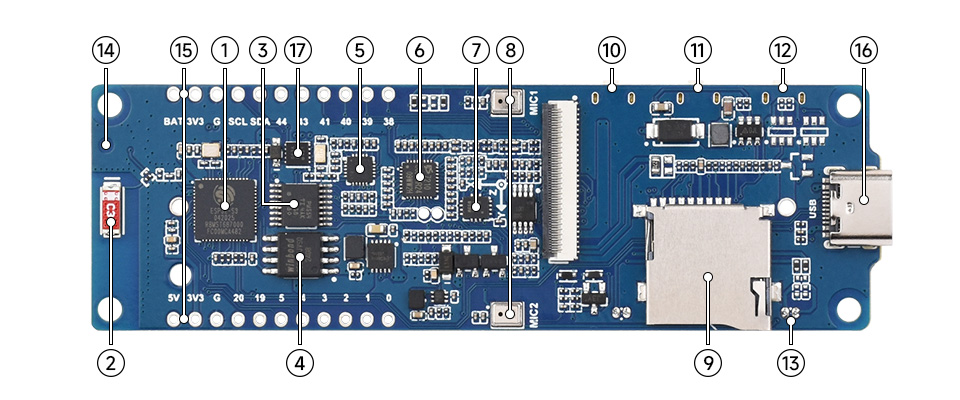

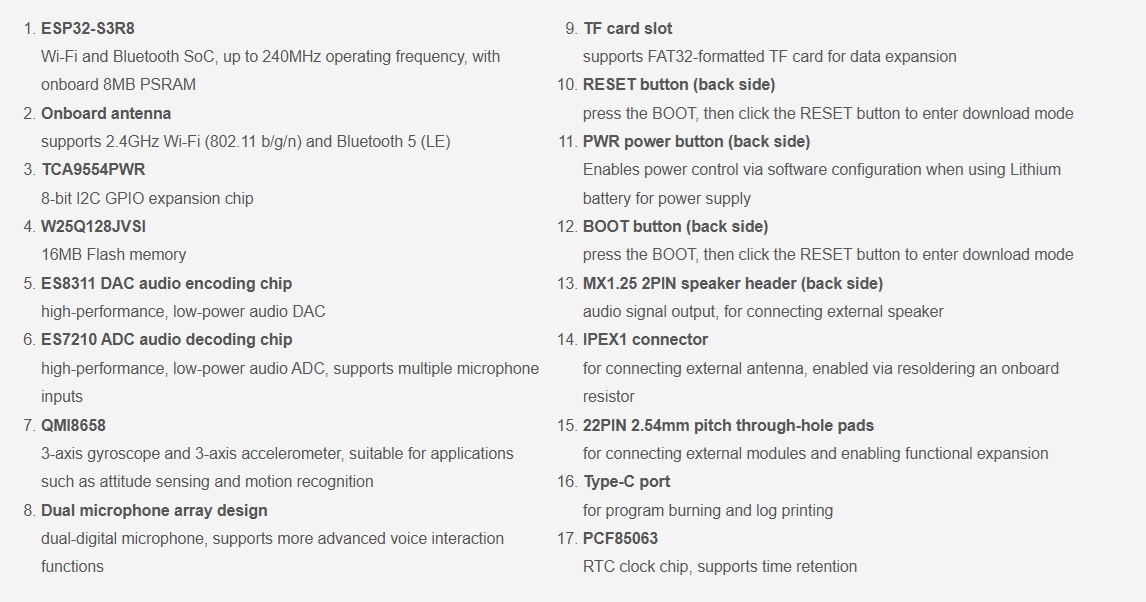

What's On Board

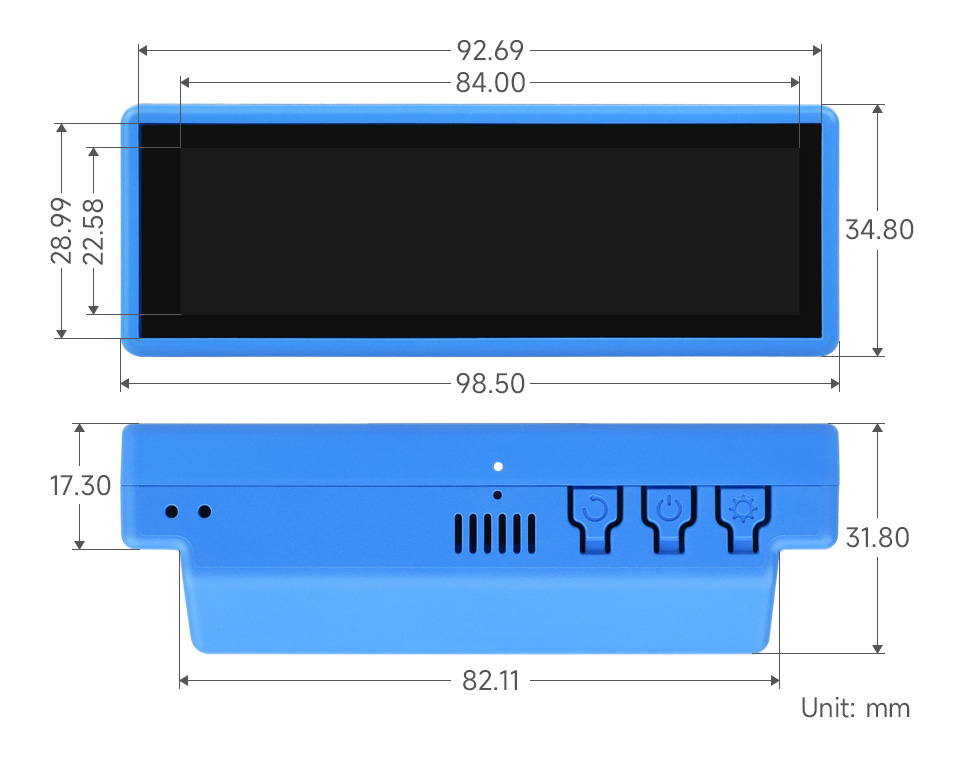

Dimensions
