Name: Industrial Grade RS232/ RS485/ TTL to 4G LTE DTU - SIM7600E-H Based - GNSS Positioning
Brand: WaveShare Electronics
SKU: 19960
Price: 6842.82 INR
Availability: OutOfStock

Industrial Grade RS232/ RS485/ TTL to 4G LTE DTU - SIM7600E-H Based - GNSS Positioning

WaveShare Electronics

Industrial Grade RS232/ RS485/ TTL to 4G LTE DTU - SIM7600E-H Based - GNSS Positioning

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹6,842.82

₹5,799.00 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 58
B2B GST Credit Available

Stock: 0 in Stock
SKU: 19960
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Overview

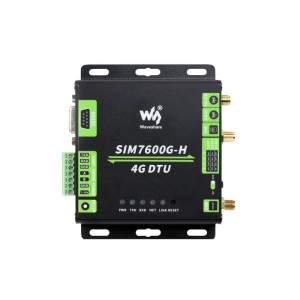

This is an industrial grade 4G DTU which incorporates Qualcomm platform 4G communication module SIM7600E-H. It supports multi-mode multi-band, and suits multi countries or regions. After our secondary development for the module firmware, it takes only some simple configurations to achieve bidirectional data transparent transmission between RS232/RS485/TTL serial port and 4G LTE network.

With features like four modes support (TCP/UDP, Modbus, HTTP, and MQTT), RNDIS dial-up, and GNSS positioning, this industrial-grade DTU is designed to be fully functional, easy to use, and stable operating. It would be an ideal choice for fields including industrial data collection, communication, remote control, and other IoT applications that need high throughput 4G data communication and have high requirements of data rate and latency.

Developer's Resources

Resources Page

Package Includes

SIM7600E-H 4G DTU x1
GPS Antenna x1
1.5m male to female serial cable x1
USB-A to micro-B cable x1
12V power adapter x1
4G Antenna x1

Feature

Based on Qualcomm platform 4G communication module
Features RS232, RS485, and TTL port (3.3V/5V)
USB Port, support USB dial-up, configuration, AT command, and so on.
Supports high-speed UART interface, up to 921600bps.
Support TCP, UDP, HTTP(S), MQTT protocol, 4 channel socket connection.
Support Modbus protocol
Support Domain name connection, automatically re-connect.
Support Registration Packet, the packet is modifiable, HEX format
Support Heartbeat packet, the packet is modifiable, HEX format
Hardware watchdog to avoid a crash
The fault restart time is configurable.
The trigger time and triangle length of UART are configurable.
Industrial design, with EMC
Working temperature: -40°C ~ 80°C
Easy to use
