Waveshare RP2350 1.46inch Capacitive Touch Round Display Development Board, 480×480 IPS Panel Display, 65K Color

RP2350-Touch-LCD-1.46 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.46inch capacitive touch IPS screen, RTC chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), TF card slot, and so on, which makes it easy for you to develop and integrate into the products quickly.

User Manual / Datasheet / Example Codes Etc.

Features

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
520KB of Static RAM, 16MB onboard Flash memory
Type-C connector for easier use
Onboard 1.46inch LCD display, 412×412 resolution, 65K color
Supports 5-point touch function controlled via I2C interface, with interrupt support
Onboard 3.7V MX1.25 lithium batt. recharge/discharge header
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
14 × Multi-Function GPIO Pins
2 × I2C, 2 × UART, 7 × 12-bit ADC and 12 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
12 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications

Touch Chip: SSD2010
Display Chip: SSD2010
Resolution: 412(H)RGB x 412(V)
Display Panel: IPS
Touch Port: I2C
Display Interface: QSPI
Display Size: Φ36.96mm
Pixel Pitch: 0.089mm x 0.089mm

Package Includes

1x RP2350-Touch-LCD-1.46B

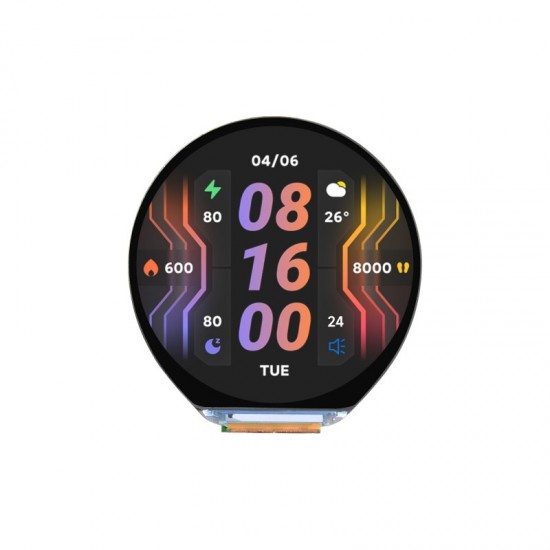

IPS Display Panel

65K color, 412×412 resolution, with wide viewing angle

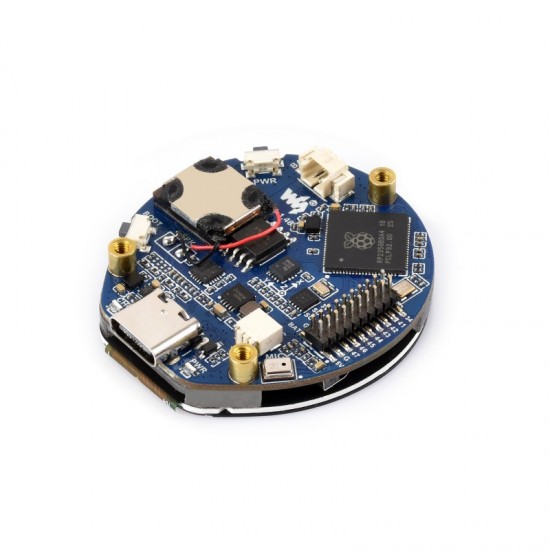

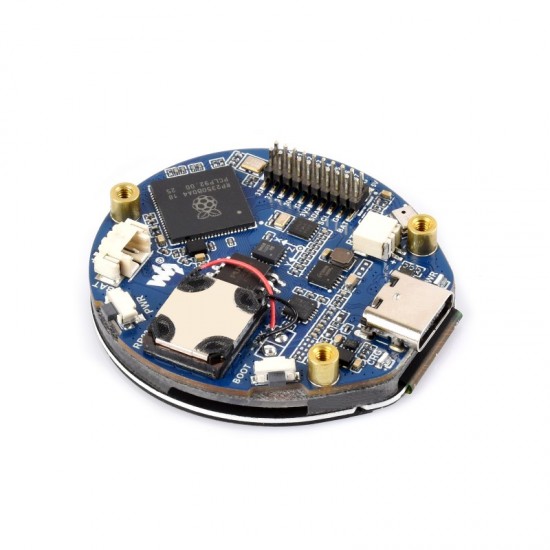

What's On Board

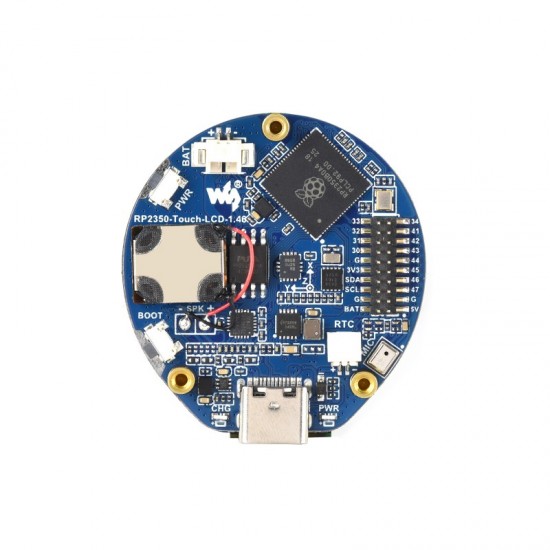

Interface Definition

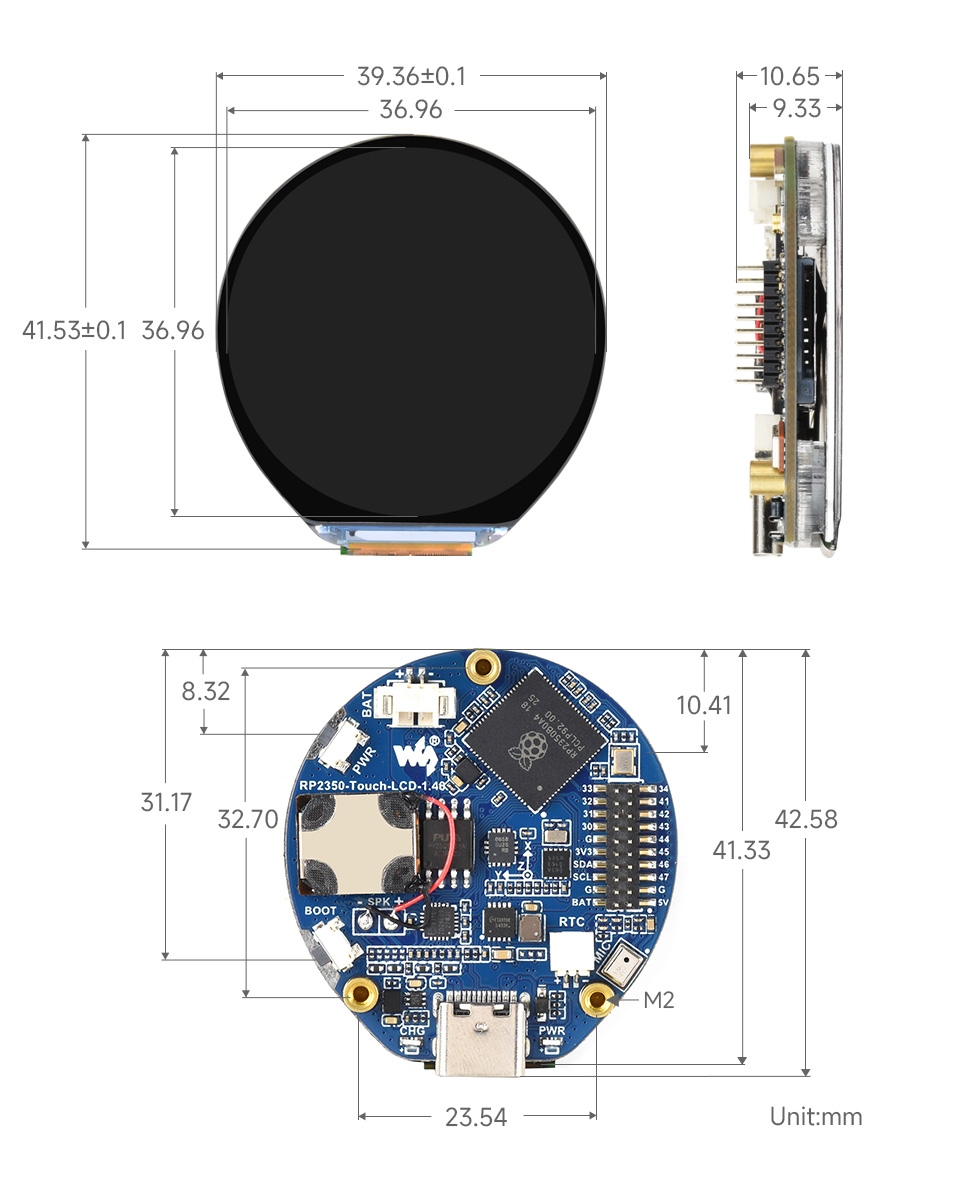

Dimensions
