Waveshare RP2350 2.1inch Capacitive Touch Round Display Development Board, 480×480 IPS Panel Display, 65K Color

The RP2350-Touch-LCD-2.1 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 2.1inch capacitive touch IPS screen, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, TF card slot, and so on, which makes it easy for you to develop and integrate into the products quickly.

User Manual / Datasheet / Example Codes Etc.

Features

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
520KB of SRAM, 16MB onboard Flash memory, with reserved solder pads for PSRAM chip expansion
Type-C connector for easier use
Onboard 2.1inch capacitive touch IPS display, 480 × 480 resolution, 65K color, for clear color picture display
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
9 × Multi-Function GPIO Pins
2 × SPI, 2 × I2C, 2 × UART, 5 × 12-bit ADC and 9 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications

Display Panel: IPS
Resolution: 480 × 480
Communication Interface: SPI + RGB
Touch Interface: I2C
Touch Type: Capacitive touch
Display Size: 2.1 inch
Display Colors: 65K
Display IC: ST7701
Touch IC: CST820
Touch Points: single-point touch

Package Includes

1x RP2350-Touch-LCD-2.1
1x SH1.0 12PIN cable ~100mm
2x SH1.0 4PIN cable ~100mm

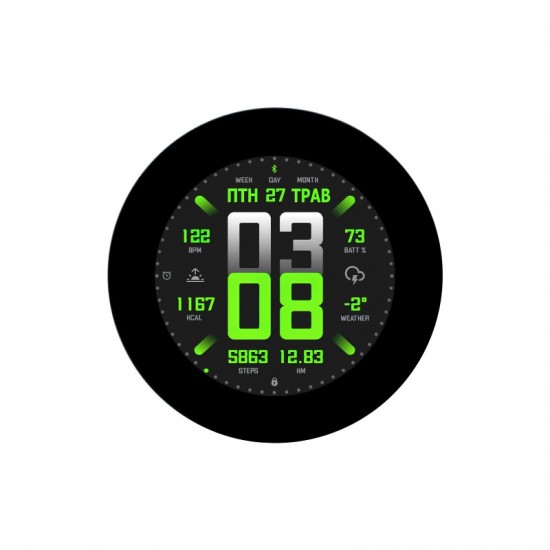

IPS Display Panel

Excellent display performance, 65K color, wide viewing angle

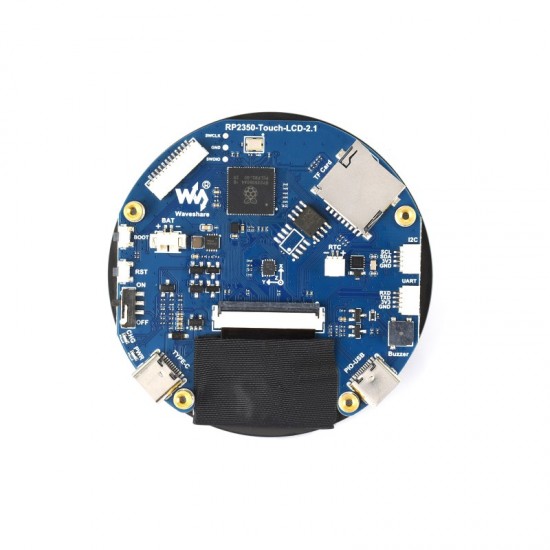

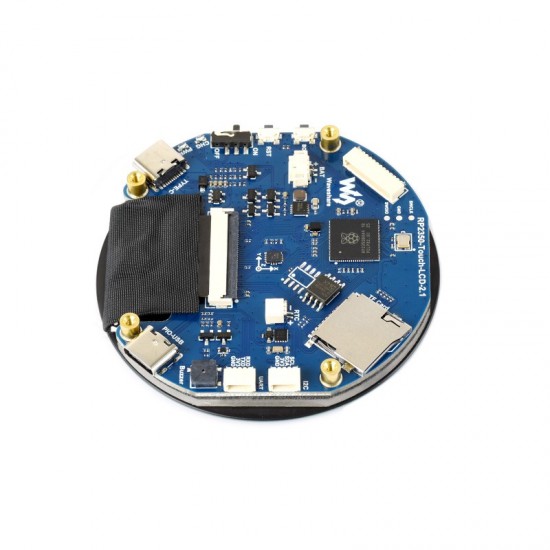

What's On Board

Interface Definition

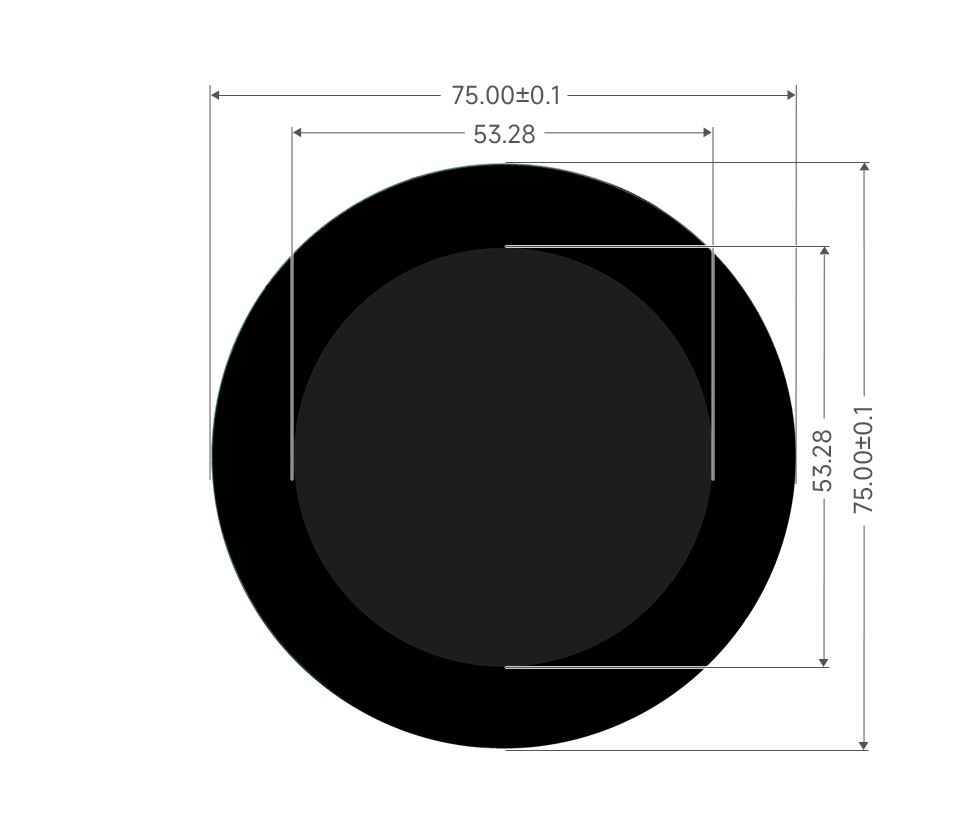

Dimensions
