E15-LW-T1 PCIe Adapter Evaluation Board for SX1302 LoRaWAN Gateway Module

E15-LW-T1 PCIe Adapter Evaluation Board for SX1302 LoRaWAN Gateway Module

E15-LW-T1 wireless module development board is a test and evaluation kit developed by Chengdu Ebyte for the mini PCI-e interface LoRawan module. The PCIE adapter board is mainly aimed at the embedded application of the E106 series LoRa gateway module launched by our company. , and equipped with ESD protection, supporting multiple systems and multiple baud rates. Developers can easily connect a variety of peripheral devices through jumpers according to actual needs.

Note: Raspberry Pi and LoRaWAN gateway module is not included in the package.

Datasheet

Specifications

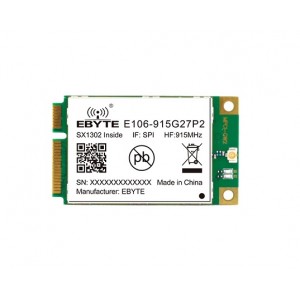

• Support module: E106-433G27P2, E106-868G27P2, E106-470G27P2, E106-915G27P2
• Test board size: 64.5*56mm
• Production Process: Lead-free process, machine-mounted
• Operating temperature: -40 ~ +85℃
• Working humidity: 10% ~ 90%
• Storage temperature: -40 ~ +125℃

Package Includes

• 1x E15-LW-T1 PCIe Adapter Evaluation Board
