ESP32-S3 4.3inch AI Voice Touch Display Development Board, 800 × 480 Resolution, 5-Point Touch, Dual-MIC Array, Supports 2.4GHz Wi-Fi & BLE 5 - With Enclosure

The ESP32-S3-Touch-LCD-4.3C integrates a 4.3inch capacitive touch display and an audio module, supporting AI speech interaction and the LVGL graphical interface. Combining display, touch, and voice in one device, it enables easy development of intelligent human-machine interaction terminals.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB Static RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

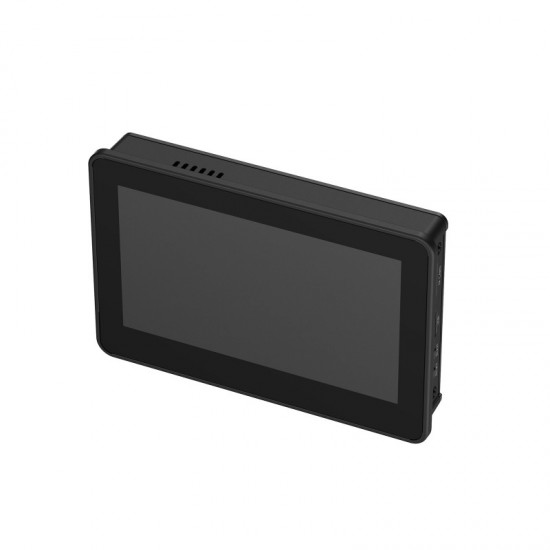

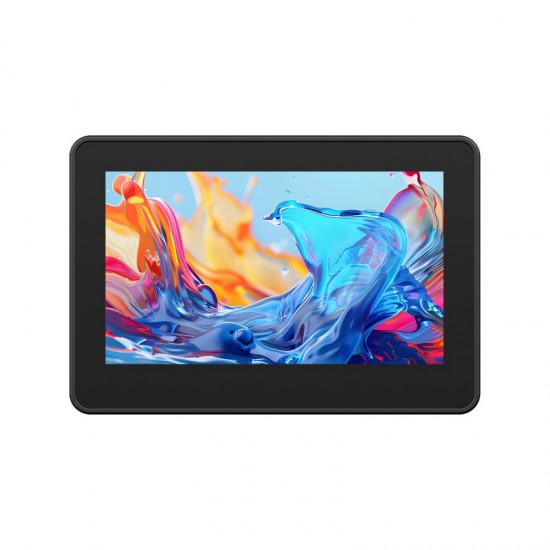

Onboard 4.3inch capacitive touch display, 800 × 480 resolution, 65K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit
Onboard voltage regulator, supports 7 ~ 36V wide range power supply
Onboard RTC chip and Batt holder to ensure time data is not lost during power loss when Batt is installed

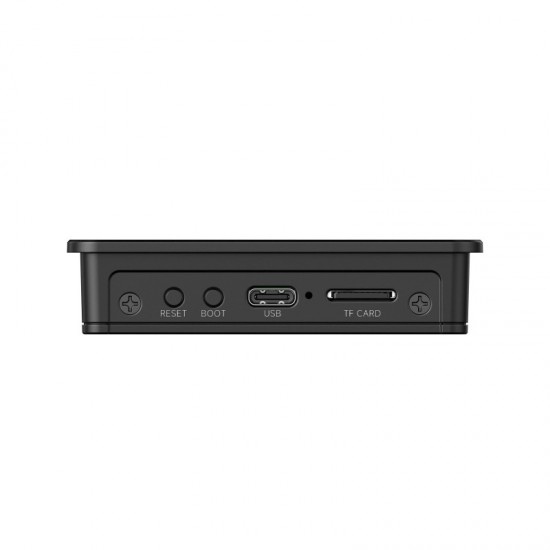

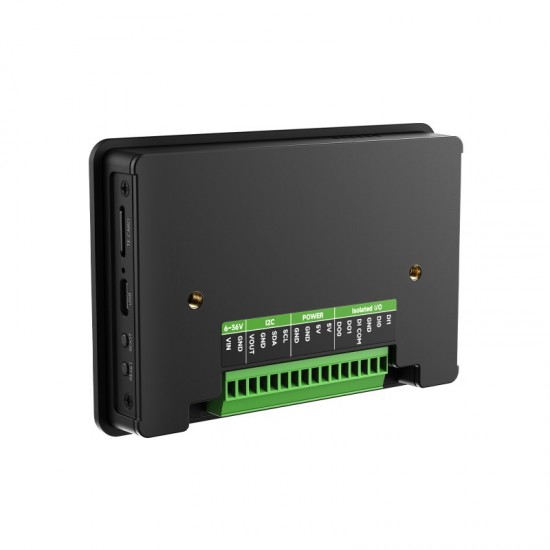

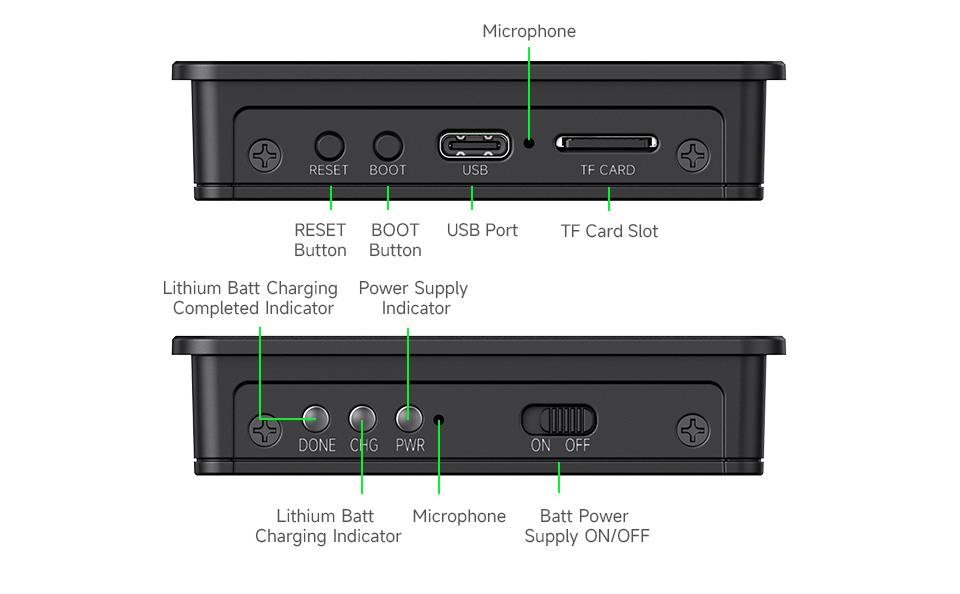

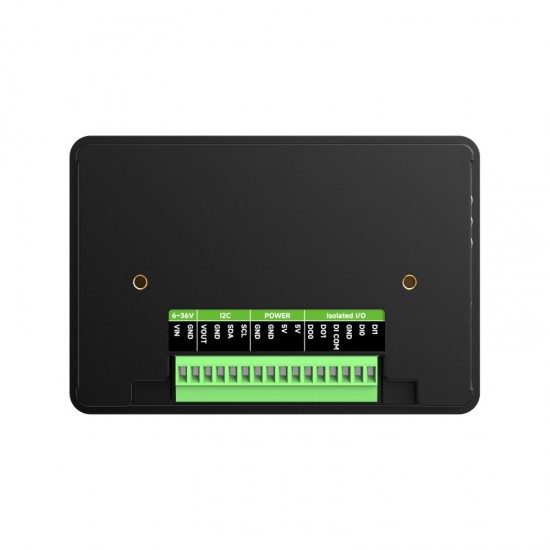

Onboard I2C interface, TF card slot, MX1.25 2PIN Batt header, and digital isolated IO interfaces, etc.
Supports passive and active digital input with bi-directional optocoupler isolation, and the active digital input supports positive and negative voltages
Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current

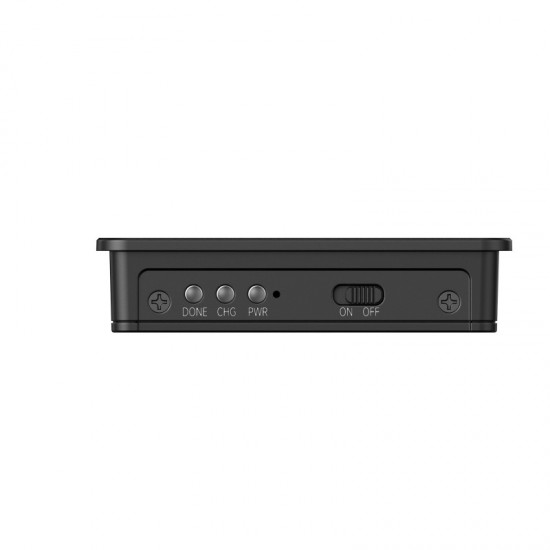

Onboard LED indicators for indicating the power and Batt recharging status
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Specifications

MCU & Performance

MCU: ESP32-S3 (Xtensa® 32-bit LX7 dual-core)
Clock Speed: Up to 240 MHz
SRAM: 512 KB
ROM: 384 KB
Flash: 16 MB (typical onboard)
PSRAM: 8 MB (for graphics & AI tasks)

Display Specs

Size: 4.3 inch TFT LCD
Resolution: 800 × 480 pixels
Color: 16-bit / 65K colors
Touch Type: Capacitive
Touch Points: 5-point multi-touch
Interface: RGB parallel display interface

Package Includes

ESP32-S3-Touch-LCD-4.3C-BOX x1

IPS Display Panel

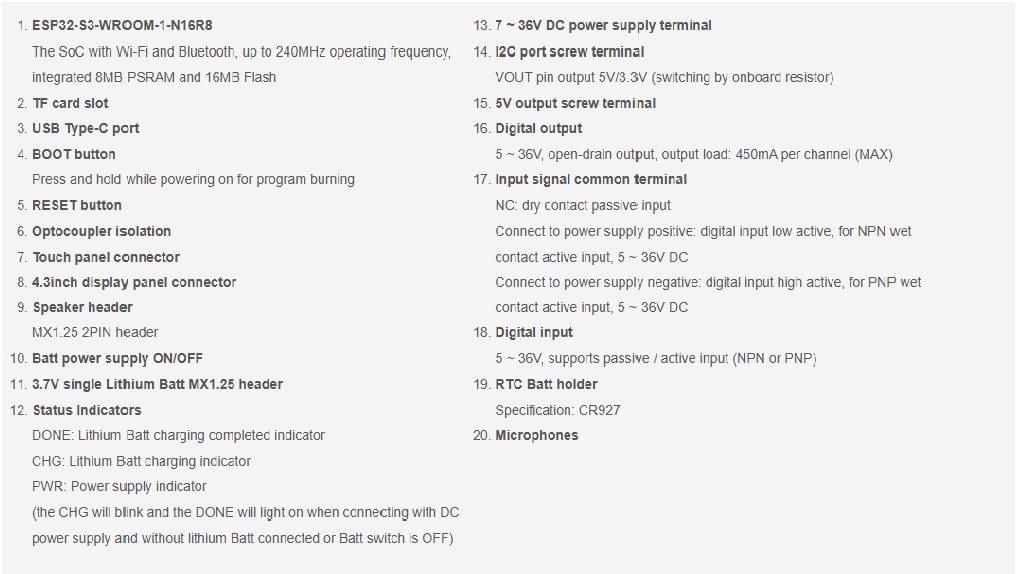

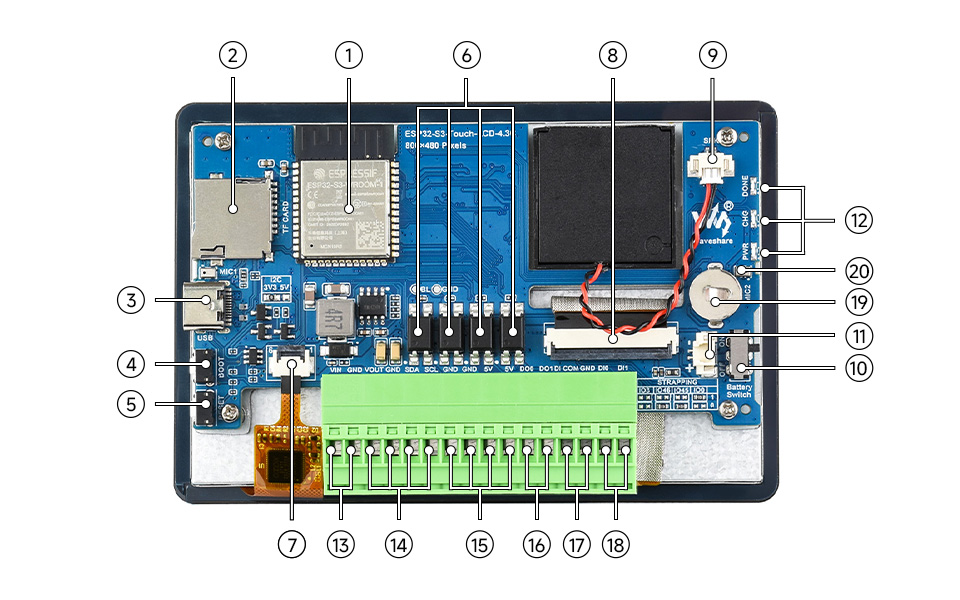

What's On Board

Dedicated Plastic Case

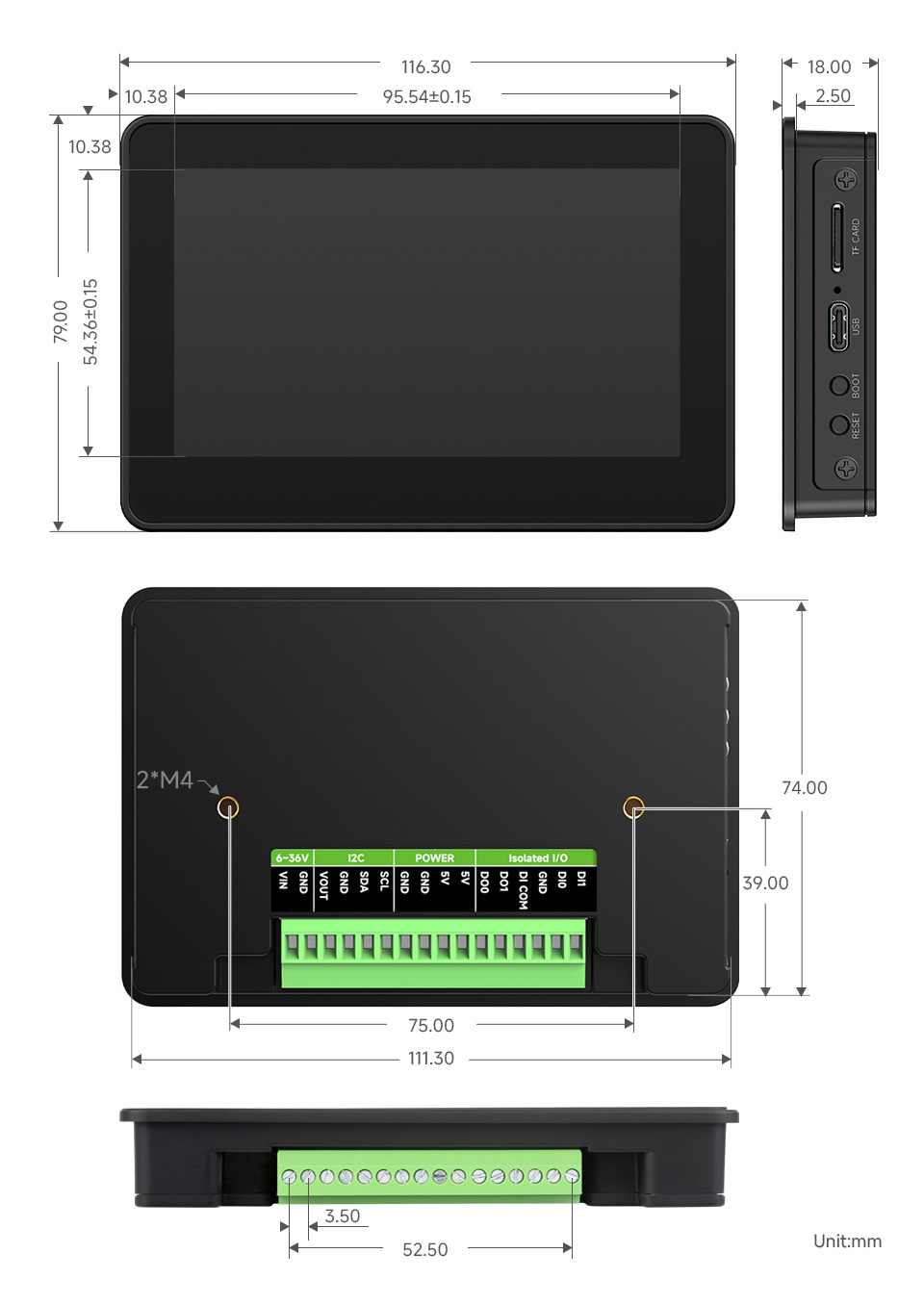

Dimensions
