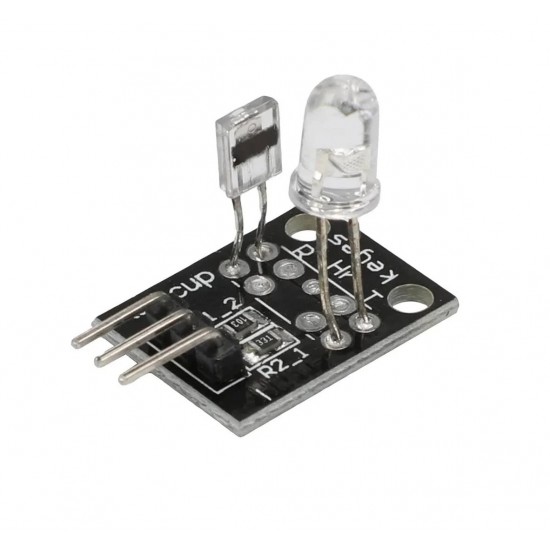

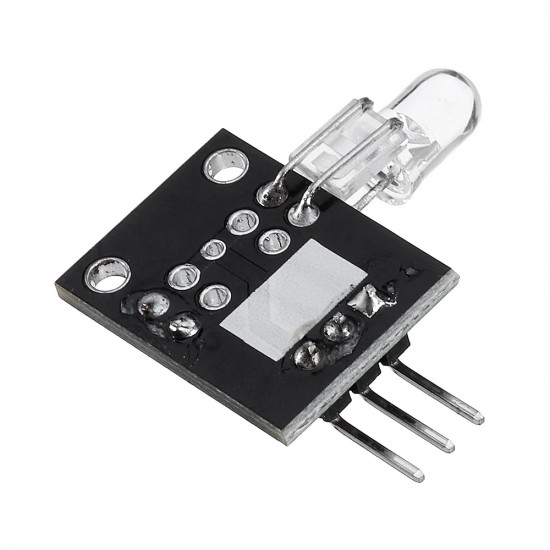

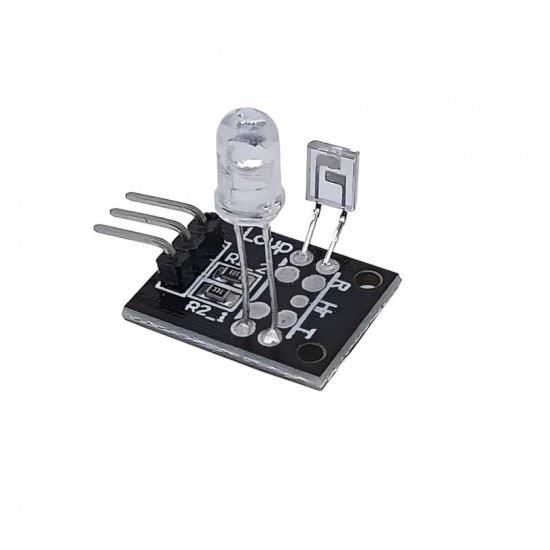

KY-039 Finger Heartbeat Detection Sensor Module (HW-502)
The KY-039 is a compact and easy-to-use optical heartbeat detection sensor module designed to measure your pulse rate by sensing blood flow changes in a fingertip. It uses an infrared LED and phototransistor pair to detect the subtle variations in light intensity caused by your heartbeat, making it ideal for Arduino, Raspberry Pi, and other microcontroller projects.
Features
- Optical heartbeat detection using infrared (IR) LED and phototransistor detects pulse through fingertip placement.
- Analog output signal that varies with heartbeat, read directly by microcontrollers.
- Compact, lightweight, low-power design ideal for DIY, wearable, or portable projects.
- Simple 3-pin interface (VCC, GND, Signal) compatible with Arduino/Raspberry Pi/ESP boards.
- Breadboard/breadboard-friendly mounting with standard 2.54 mm headers and small board size.
- Visual heartbeat indicator: onboard red LED flashes with each detected pulse.
Specifications
- Model: KY-039 (HW-502)
- Operating Voltage: 3.3 V – 5 V DC
- Output: Analog signal (varies with pulse)
- Interface: 3-pin (VCC, GND, Signal)
- Detection Method: Optical IR (infrared LED + phototransistor)
- Current Consumption: ~2 mA (LED active)
Package Includes
- 1x KY-039 Finger Heartbeat Detection Sensor Module (HW-502)
