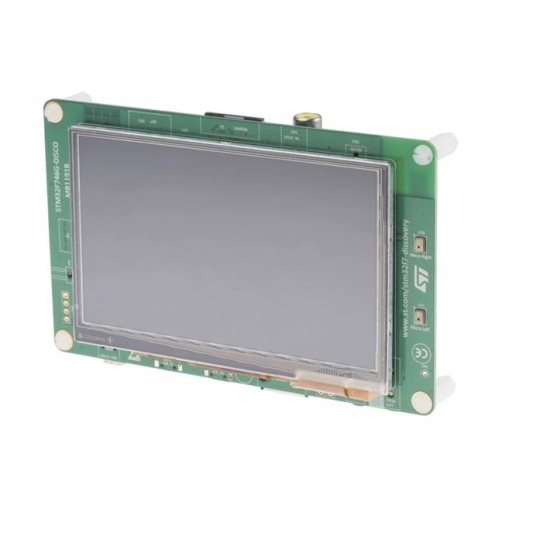

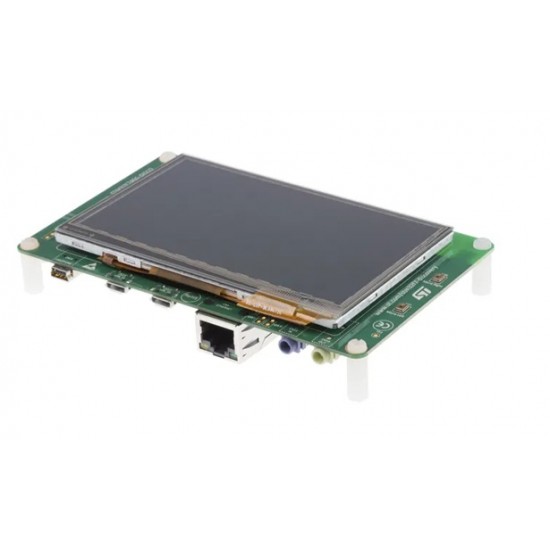

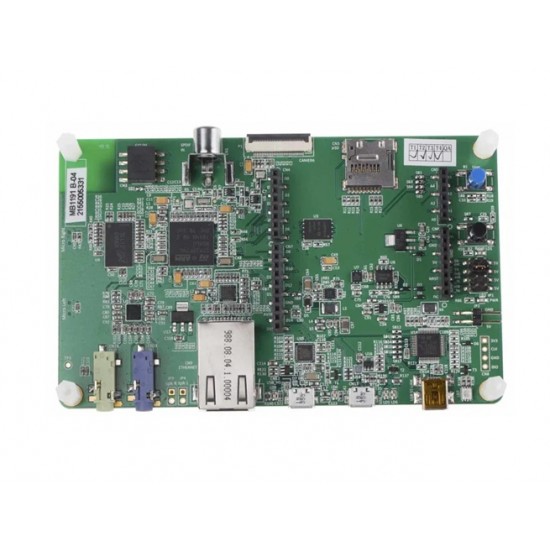

STM32F746G-DISCO - STM32F746NG ARM Cortex-M7 MCU 32-Bit Embedded Evaluation Board

The 32F746GDISCOVERY Discovery kit is a complete demonstration and development platform for STMicroelectronics Arm® Cortex®-M7-core-based STM32F746NG (STM32F746NGH6 order code) microcontroller.

The 32F746GDISCOVERY Discovery kit is used as reference design for user application development before porting to the final product, thus simplifying the application development.

The Discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

The ARDUINO connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards

The 32F746GDISCOVERY board is provided with the STM32CubeF7 MCU package, which offers an STM32 comprehensive software HAL library as well as various software examples.

Datasheet

features

STM32F746NGH6 Arm® Cortex® core-based microcontroller with 1 Mbyte of Flash memory and 340 Kbytes of RAM, in BGA216 package
4.3” RGB 480×272 color LCD-TFT with capacitive touch screen
Ethernet compliant with IEEE-802.3-2002
USB OTG HS
USB OTG FS
SAI audio codec
Two ST-MEMS digital microphones
128-Mbit Quad-SPI Flash memory
128-Mbit SDRAM (64 Mbits accessible)
Two user and reset push-buttons
Board connectors:

Camera
microSD™ card
RF-EEPROM daughterboard connector
2×USB with Micro-AB
Ethernet RJ45
SPDIF RCA input connector
Audio line in and line out jack
Stereo speaker outputs
ARDUINO Uno V3 expansion connectors

Flexible power-supply options: ST-LINK, USB VBUS or external sources
Power supply output for external applications: 3.3 V or 5 V
Comprehensive free software libraries and examples available with the STM32Cube MCU Package
On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
Support of a wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs, and Arm® Mbed
