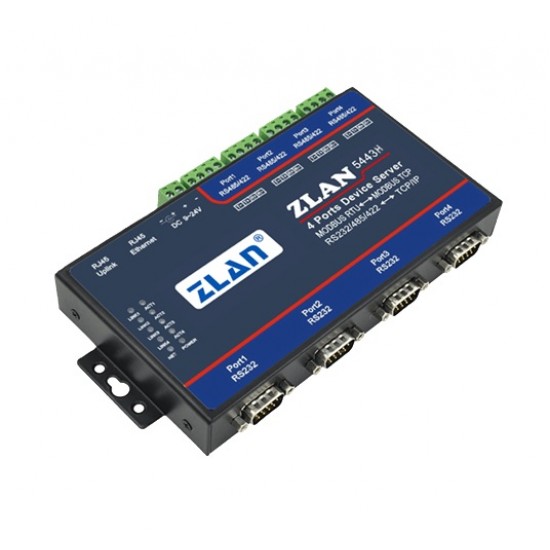

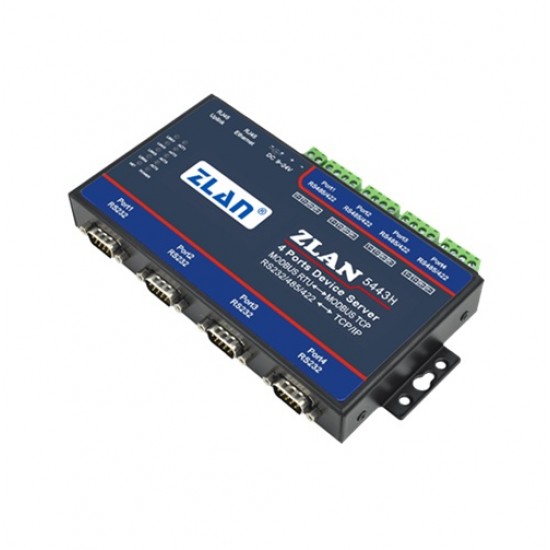

ZLAN ZLAN5443H 4-Port Industrial Serial Device Server – RS232/RS485/RS422 to Ethernet, Modbus RTU to TCP/IP Converter

ZLAN5443H is a new generation 4 serial port server developed by Shanghai Zhuolan Information Technology Co., LTD. It can transfer four serial ports to TCP/IP and support two 10M/100M Ethernet ports. ZLAN5443H supports the Modbus gateway function from Modbus TCP to Modbus RTU. The Modbus gateway supports simultaneous data reading over multiple Modbus clients, that is, the multi-host function.

ZLAN5443H submodel ZLAN5443H, H supports baud rates up to 921.6bps. ZLAN5443H supports connection to six destination IP addresses as a client.

ZLAN5443H supports four RS232 serial ports and four RS422/485 serial ports. Users connect the ZLAN5443H to the network through one network cable. The host computer can access four serial ports through the virtual serial port or TCP protocol.

The ZLAN5443H can be expanded to 8 serial ports, 12 serial ports, 16 serial ports, or a maximum of 32 serial ports.

Datasheet

Features

Power Electronics, Intelligent Meters and Energy Consumption Monitoring;
As the gateway of the IoT as the communication bridge between devices and the cloud;
Remote monitoring and program downloading of all kinds of automatic PLC;
Various configuration software and equipment communication interfaces;
Network of devices in the field of access control and security;
Network information collection of medical equipment;

Specifications

Interface: RS232：DB9、RS485：terminal、RS422：terminal
Power supply: 5.5mm，+ inside and - outside, standard power outlet
Size: L x W x H =9.2cm×19.7cm×2.5cm
Ethernet: 10M/100M，2 KV level Surge protection
Serial port: RS232/485/422×4：RXD，TXD，GND， CTS，RTS，DTR， DCR
Baud rate: 1200~460800bps
Parity: None, Odd, Even, Mark, Space
Digit bits: 5～9 bits
Flow control: RTS/CTS，DTR/DCR, NONE
Protocol
ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、
DHCP、 DNS、 Modbus TCP protocol
Configuration mode: ZLVirCOM tool、 Device management function library
Communication: Socket、 Virtual serial port、 Device management function library
Working mode: TCP server, TCP client, UDP, UDP broadcast
Power: 9～24V DC
Consumption: 5W
Operation temperature: -40~85℃ 5~95% Humidity
Storage temperature: -65~120℃ 5~95% Humidity

Package Includes

1x ZLAN ZLAN5443H 4-Port Industrial Serial Device Server – RS232/RS485/RS422 to Ethernet, Modbus RTU to TCP/IP Converter
