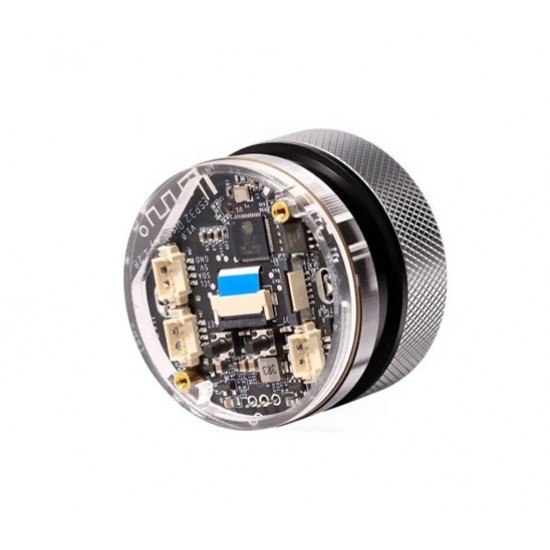

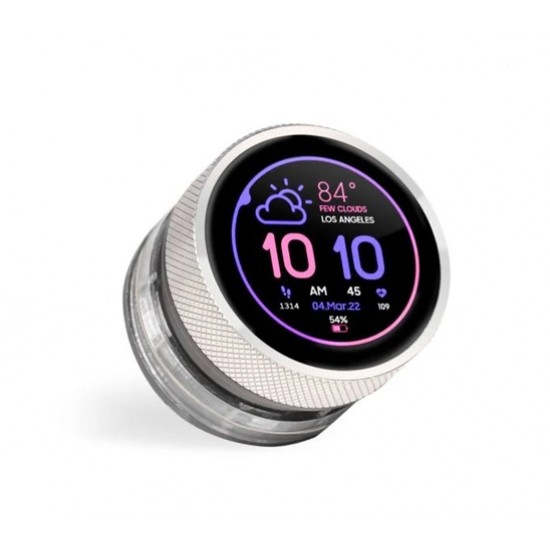

Elecrow CrowPanel 1.28inch-HMI ESP32 Rotary Display 240*240 IPS Round Touch Knob Screen
The rotary screen is an intelligent interactive device that usually consists of a circular knob and a display. The knob can be rotated to control various functions, while the display is used to display relevant information.
ESP32 Display - 1.28 inch rotary screen, uses high-performance ESP32-S3 chip, equipped with 32-bit dual-core chip. The maximum clock frequency reaches 240MHz, with strong performance and the ability to handle complex tasks.
Supports 2.4G WiFi and BLE low-power Bluetooth, to achieve reliable wireless communication, easily connect to the Internet, suitable for smart home, industrial control, portable devices and other scenarios.
Supports capacitive touch operation and knob input. The knob supports clockwise and counterclockwise rotation and full press operation, smooth feel, and various interaction methods.
The 5V charging interface supports power supply and program burning, and is also equipped with three expansion interfaces of UART, I2C, and FPC to meet development needs.
The atmosphere light design adds a cool feeling, and the low power design makes it suitable for smart home appliances and portable devices.
It supports Arduino IDE and the LVGL library; you can design the UI interface yourself. It is an ideal platform for DIY projects like a mechanical keyboard knob.
ESP32 Display - 1.28inch rotary screen is not just an interactive module, but an intelligent interaction solution that combines high performance, multi-function, and ease of use. Whether you are an IoT developer, smart home enthusiast, or professional, you can find an efficient tool that meets your needs.
User Manual / Datasheet / Example Codes Etc.
Features
- Interaction mode: supports knob input, the knob supports clockwise, counterclockwise rotation and full press operation, and can adjust volume, brightness, etc.
- Touch function: supports capacitive touch, sensitive operation, and provides a smooth user experience.

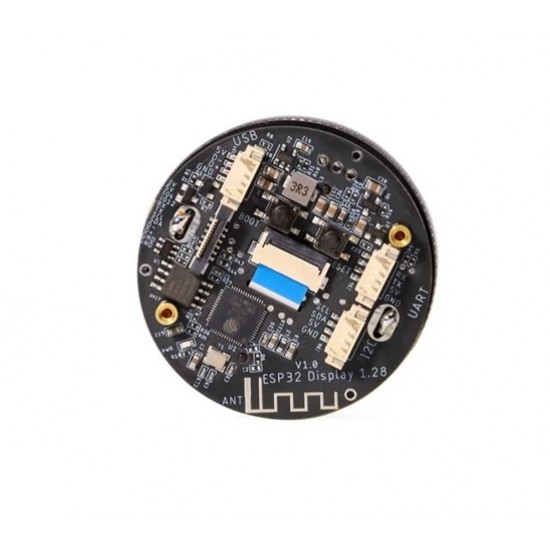

- High-performance main control: equipped with a 32-bit dual-core ESP32-S3 chip, equipped with 8M PSRAM and 16M flash memory, and the maximum clock frequency is 240MHz.
- Wireless communication: supports 2.4G WiFi and BLE low-power Bluetooth to achieve data exchange and remote control between devices.
- Expansion interface: equipped with a 5V charging interface, supports power supply and program burning; provides three expansion interfaces: UART, I2C and FPC.
- Low power design: supports low power mode, suitable for smart home appliances and portable devices.
- Ambient light design: adds a cool feeling to the device and enhances the user experience.
- Multi-language development: supports Arduino IDE and LVGL library.
- Application scenarios: suitable for smart home, industrial control, IoT projects, access control systems, Industrial control, portable devices and other scenarios.
Specifications
- Processor: Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
- System memory: 512KB SRAM、8M PSRAM
- Storage: 16M Flash
- Screen Size: 1.28 inch
- Screen Type: IPS
- Touch Type: Capacitive Touch
- Resolution: 240*240
- Wireless Communication
- Bluetooth: Bluetooth Low Energy and Bluetooth 5.0
- WiFi: Support 802.11a/b/g/n，2.4GH

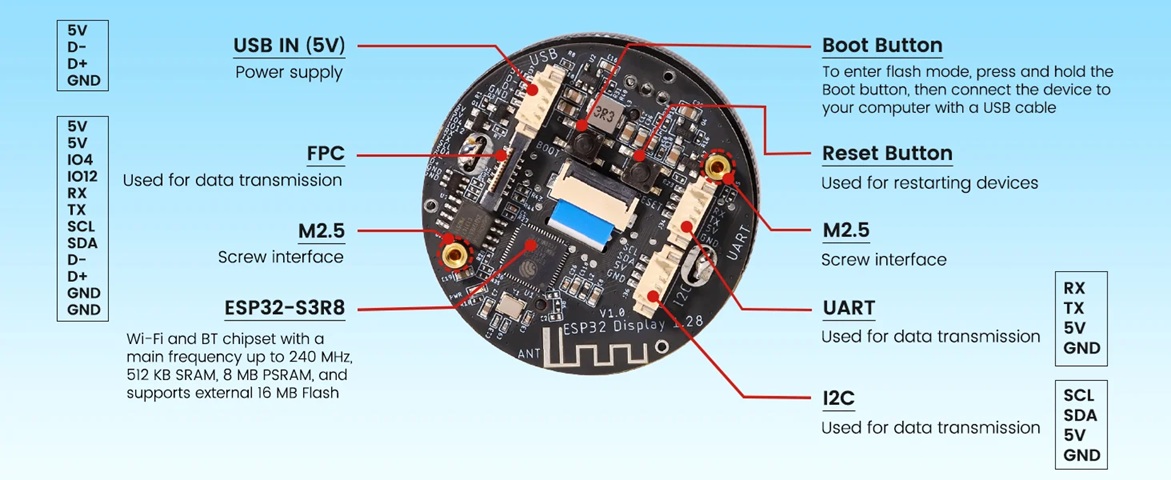

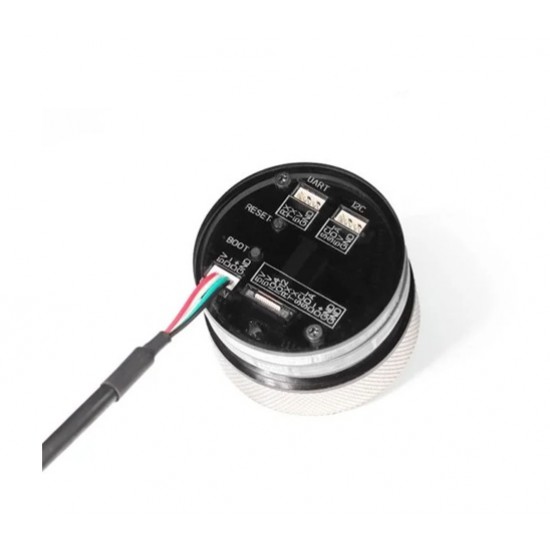

- Hardware
- UART Interface: 2x UART, ZX-MX 1.25-4P
- I2C interface: ZX-MX 1.25-4P
- FPC connector: 12P, Power supply burning port, Pitch: 0.5 mm.
- Button: RESET button, BOOT button, confirmation button (knob press switch)
- LED Light: Power indicator, LED ambient light
- Other
- Power Input: 5V/1A
- Operating temperature: -20~65℃
- Storage temperature: -40~80℃
- Operation Power: Module：DC5V Main Chip：3.3V
- Size: 48*48*33mm
- Shell: Aluminum alloy + plastic + acrylic
- Net Weight: 50g

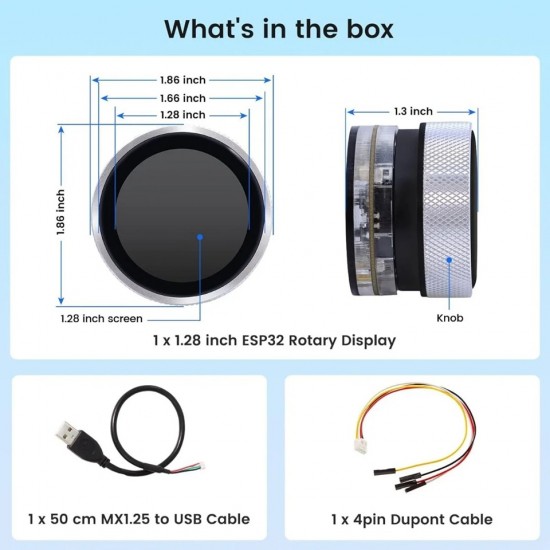

Package Includes
- 1x ESP32 Display-1.28 inch Rotary Display
- 1x 4pin Dupont Cable
- 1x 50 cm MX1.25 to USB Cable
