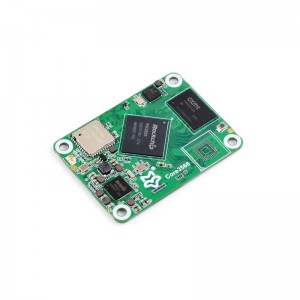

Core3566 Module, Rockchip RK3566 Quad-core Processor, Compatible With Raspberry Pi CM4, 2GB RAM, 0GB eMMC, No Wireless - Core3566002000

Core3566 Module, Rockchip RK3566 Quad-core Processor, Compatible With Raspberry Pi CM4, 2GB RAM, 0GB eMMC, No Wireless - Core3566002000

This is a Core3566 Module, Rockchip RK3566 Quad-core Processor, Compatible With Raspberry Pi CM4, 2GB RAM, 0GB eMMC, No Wireless - Core3566002000. The Core 3566 Module Comes With Quad-core Arm Cortex-A55 @1.8GHz Processor With 2GB RAM and 0GB Lite eMMC storage.This item is Not support Wirelss Connectivity.

Note : Image shown is a representation only the acctual image is differ

User Manual / Datasheet / Example Codes Etc.

Package Includes

• Core3566 module x1

Specifications

• Processor : Quad-core Arm Cortex-A55 @1.8GHz
• Memory : 2GB LPDDR4 SDRAM memory
• Storage : for 0GB (Lite)
• NPU : 0.8 TOPS @INT8
• GPU : Arm Mali-G52 2EE
• Connectivity : No Wireless Connectivity
• Video : HDMI interface (4Kp60 supported) / 2-lane MIPI DSI display interface × 2 / 2-lane MIPI CSI camera interface × 2
• Multimedia : 4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode)
• Operating Voltage : 5V DC
• Operating Temp. : -10°C ~ 80°C ambient
• Dimensions : 55 × 40 × 4.7mm
• Part Number : Core3566002000

Rk3566 Discription

• RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
• Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
• The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
• The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
• The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlo

Onboard Resources

Image shown is a representation only
