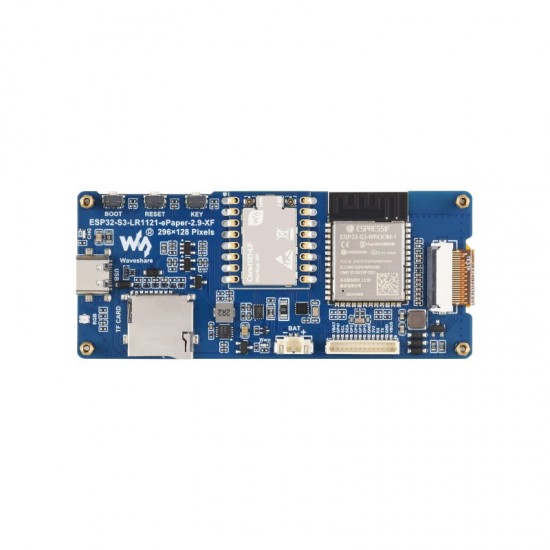

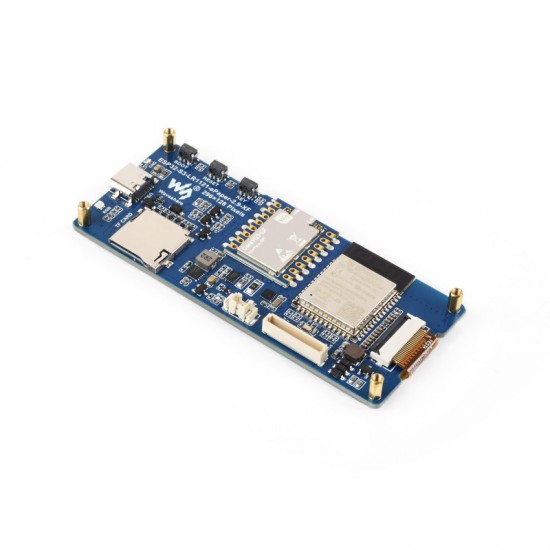

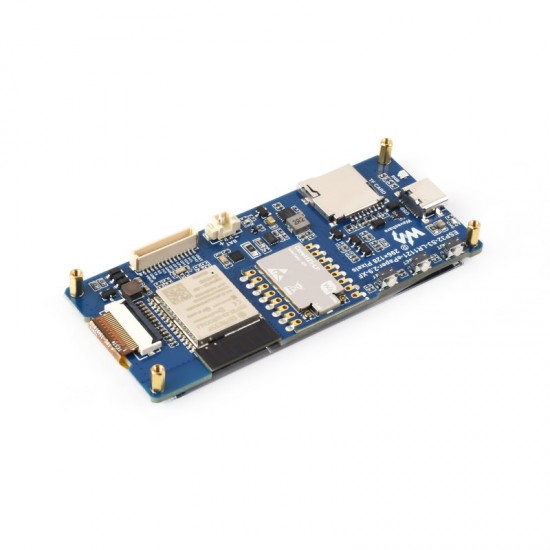

This product integrates ESP32-S3 main controller, LR1121 wireless chip, and 2.9inch e-Paper display. Supports deep sleep and timer wake-up, and provides Arduino and ESP-IDF demos. It is ideal for developing electronic shelf labels, equipment status displays, and Batt-powered information display terminals.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with high-performance ESP32-S3 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
Built-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB Flash

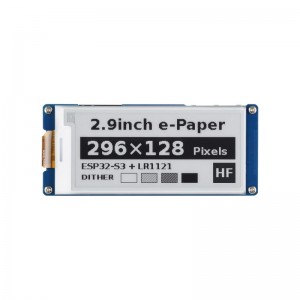

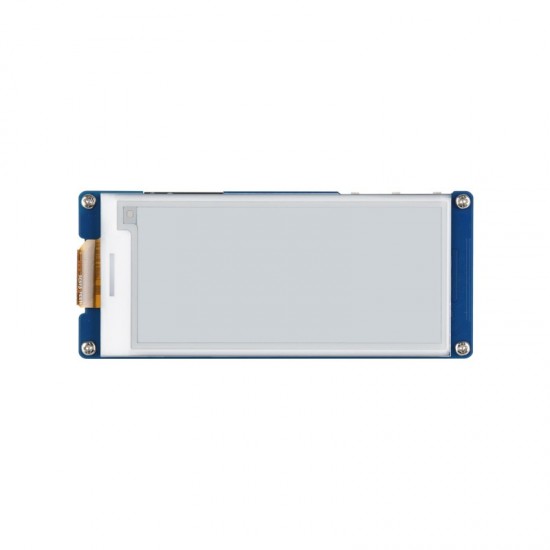

Equipped with 2.9inch e-Paper display, 296 × 128 resolution, suitable for displaying text, device IDs, and status information
No backlight, keeps displaying last content after refreshing, suitable for applications with infrequent updates
Supports deep sleep of the main controller and low-power peripheral control, allowing wake-up via timer or BOOT button
Onboard LR1121 chip, provides LoRa point to point and LoRaWAN demos for easy wireless data terminal development
Onboard Batt fuel gauge, RTC, TF card slot, and expansion interface for easy integration into Batt powered applications and peripheral devices
Onboard Type-C port, improving device compatibility, easier to use
Onboard TF card slot for storage expansion and fast data transfer, suitable for data logging and other applications while simplifying circuit design

Specifications

Display Panel: e-paper display
operating voltage: 5V
display size: 66.89 × 29.05 (mm)
resolution: 296 × 128 pixels
viewing angle: >170°
dot pitch: 0.226 × 0.227 (mm)
display color: black, white
Sleep Power: 36.5uW at VBAT 3V
grey scale: 4
full refresh time: 3s
partial refresh time: 0.6s
Modulation: LoRa, (G)FSK, LR-FHSS

Package Includes

ESP32-S3-LR1121-ePaper-2.9-LF x1
2.4G antenna x1
2DB SMA antenna x1
IPEX4 to SMA cable x1

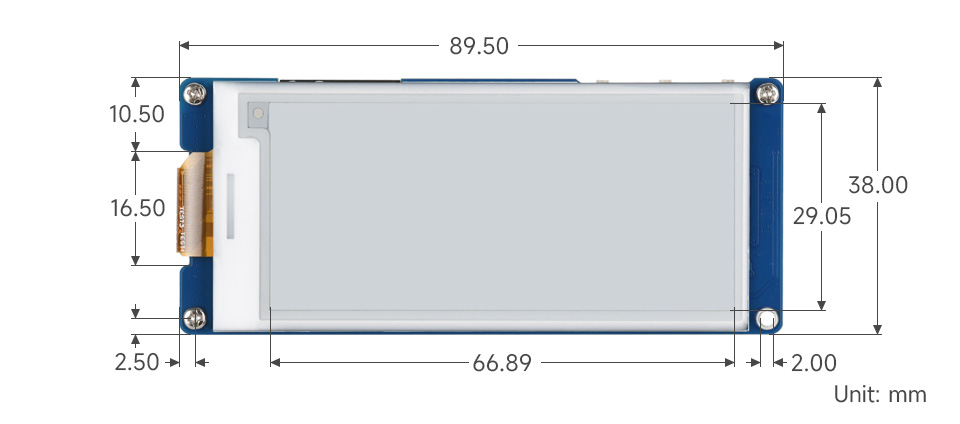

Dimensions
