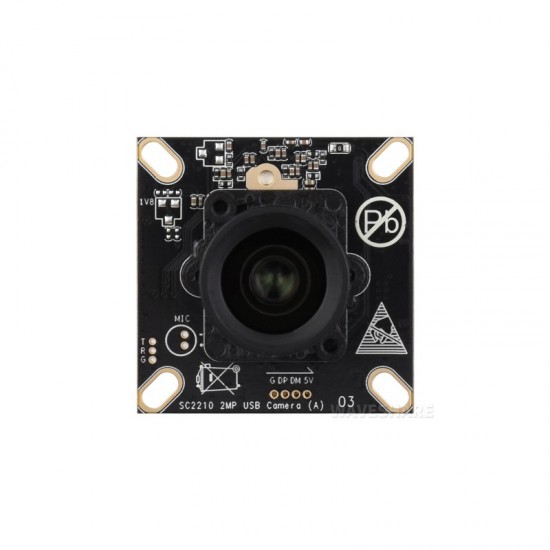

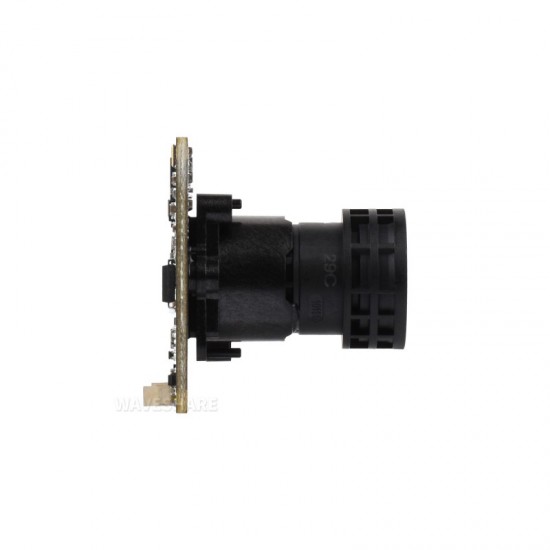

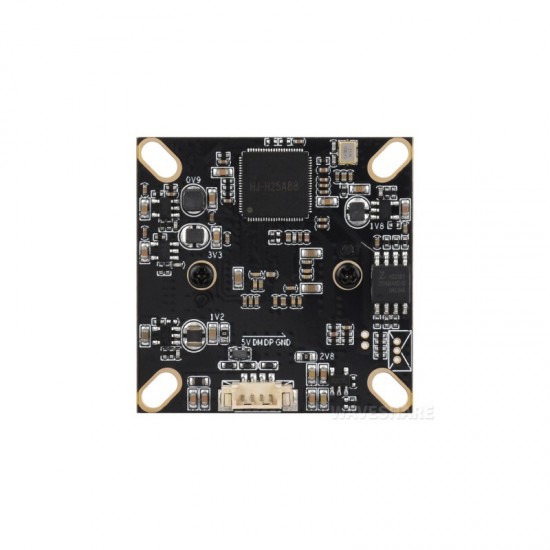

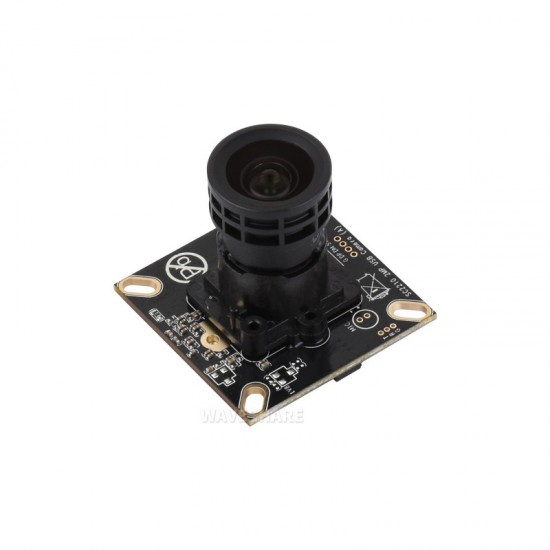

Waveshare SC2210 2MP M12 USB Camera Module, SC2210 Sensor Chip, USB2.0 Port, Starlight Camera, Easy To Use
The Waveshare SC2210 2MP M12 USB Camera Module is a compact and high-performance imaging solution designed for low-light and embedded vision applications. Featuring the advanced SC2210 sensor chip, this camera delivers clear 2MP resolution images with excellent sensitivity, making it ideal for starlight environments and challenging lighting conditions.
Equipped with a standard USB 2.0 interface, the module ensures easy plug-and-play connectivity with a wide range of devices, including PCs, embedded systems, and single-board computers. The M12 lens mount design provides flexibility, allowing users to select and customize lenses according to their specific field of view and application needs.
This camera module is well-suited for applications such as machine vision, surveillance, industrial inspection, and smart IoT projects. Its compact size, stable performance, and user-friendly setup make it an excellent choice for both developers and system integrators.
- 2MP resolution with SC2210 starlight sensor for superior low-light performance
- USB 2.0 interface for fast, stable, and plug-and-play connectivity
- M12 lens mount for flexible lens replacement and customization
- Compact and lightweight design for easy integration
- Suitable for machine vision, security monitoring, and embedded applications
- Wide compatibility with Windows, Linux, and other platforms
Specifications
- Pixels: 2MP
- sensor chip: SC2210
- Interface: USB 2.0
- Camera
- Sensor size: 1/1.8inch
- Aperture (F): 1.0
- Focal length (EFL): 5.1mm
- Field of View (FOV): 110.8° (D) 93.1° (H) 49.6° (V)
- Focusing: Fixed-focus
- Distortion: <-12.7%
- IR Filter: 650nm filter
- Shutter: Rolling shutter
- Format support: MJPG, YUY2
- Static image resolution: 1920 × 1080
- Image
- MJPG
- 30FPS 1920×1080
- 30FPS 1280×720
- 30FPS 640×480
- Video recording
- YUY2
- 15FPS 1280×720
- 20FPS 1024×576
- 20FPS 640×480
- 25FPS 640×360
- 25FPS 480×272
- 25FPS 320×240
- communication interface: MX1.25-4P USB
- Operating Voltage: 5V ± 5%
- Operating current: 180mA
- Dimensions: 38.00 × 38.00 × 32.20 (mm)
Package Includes

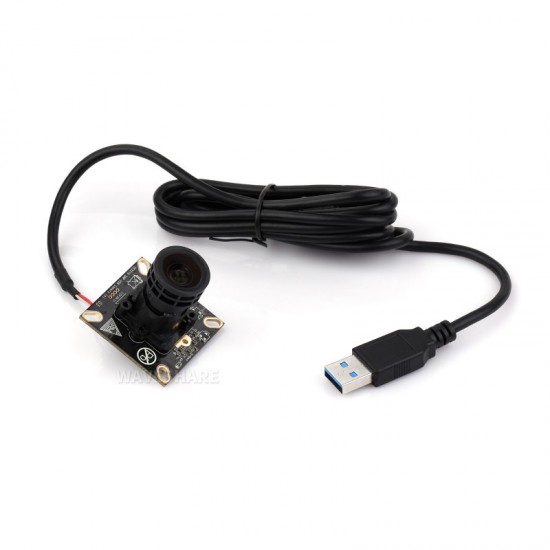

- 1x SC2210 2MP USB Camera (A)
- 1x USB Type-A to MX1.25 4PIN cable ~1.5m

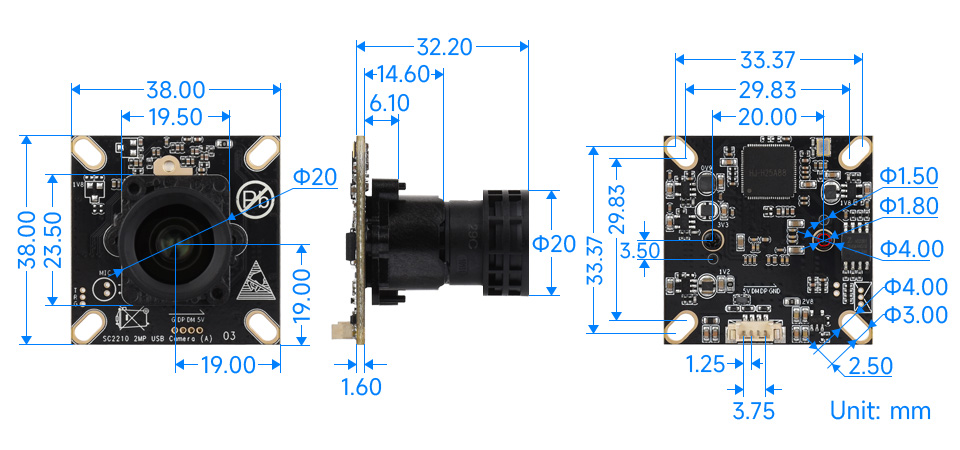

Dimensions
