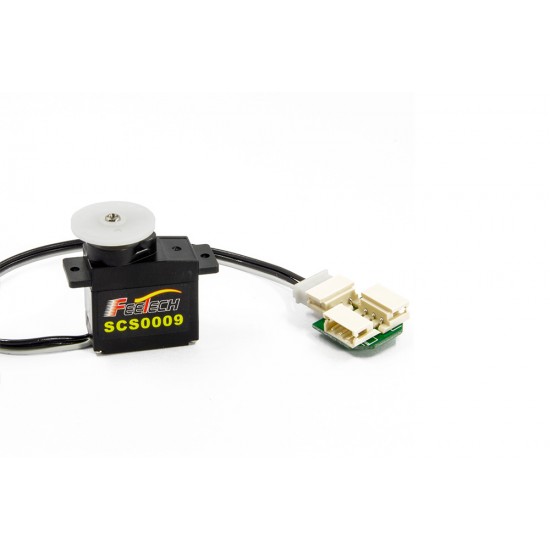

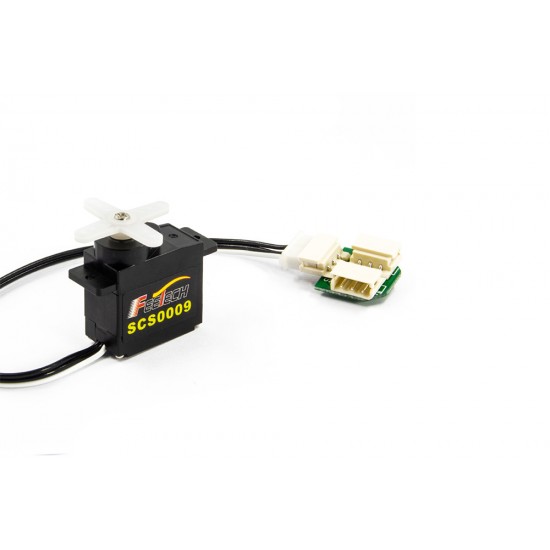

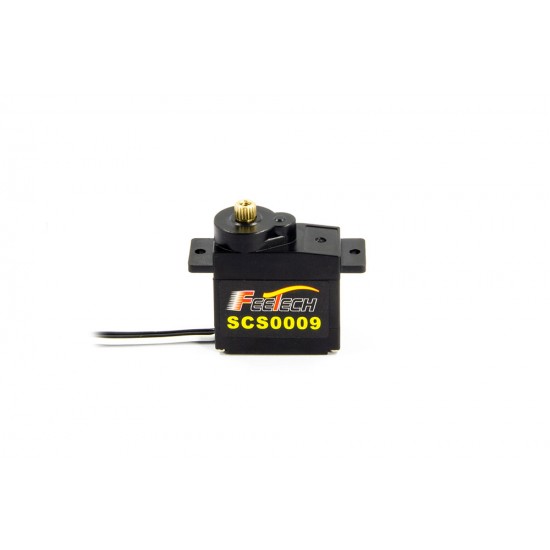

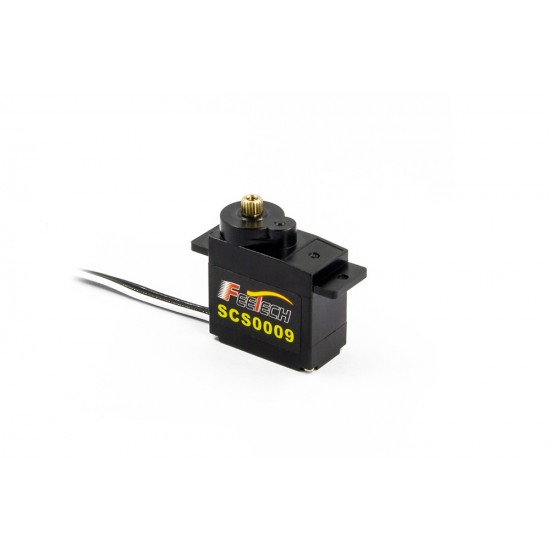

Name: Feetech SC-0090-C001 6V 2.3kg Serial Bus Servo Motor
Brand: Feetech
SKU: 07692
Price: 799.00 INR
Availability: OutOfStock

Feetech SC-0090-C001 6V 2.3kg Serial Bus Servo Motor

Feetech

Feetech SC-0090-C001 6V 2.3kg Serial Bus Servo Motor

Based on 0 reviews. - Write a review

₹799.00

₹677.12 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 7
B2B GST Credit Available

Price in reward points: 677

Stock: 0 in Stock
SKU: 07692
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Feetech SC-0090-C001 6V 2.3kg Serial Bus Servo Motor

The Feetech SC-0090-C001 6V 2.3kg Serial Bus Servo Motor is a compact and efficient smart servo designed for precision motion control in robotics, automation systems, and DIY projects. Featuring serial bus communication, this servo enables multiple units to be connected and controlled using a single communication line, making it ideal for complex robotic assemblies such as robotic arms, humanoid robots, and multi-joint systems.

Built to operate at 6V, the SC-0090-C001 delivers a reliable torque output of up to 2.3kg·cm, ensuring smooth and stable performance for light to medium-duty applications. Its integrated control circuitry supports position feedback, adjustable parameters, and synchronized multi-servo control, providing greater flexibility compared to traditional PWM servos.

Datasheet

Features

Serial bus communication for multi-servo control
Torque up to 2.3kg·cm at 6V
High precision position control with feedback
Supports daisy-chain connection (reduces wiring complexity)
Compact and lightweight design
Durable gear system for long-lasting performance
Ideal for robotics, automation, and educational projects

Specifications

Model: SC-0090-C001
Product Name: 6V 2. 3kg. cm Serial Control BUS Servo
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -15℃～70℃

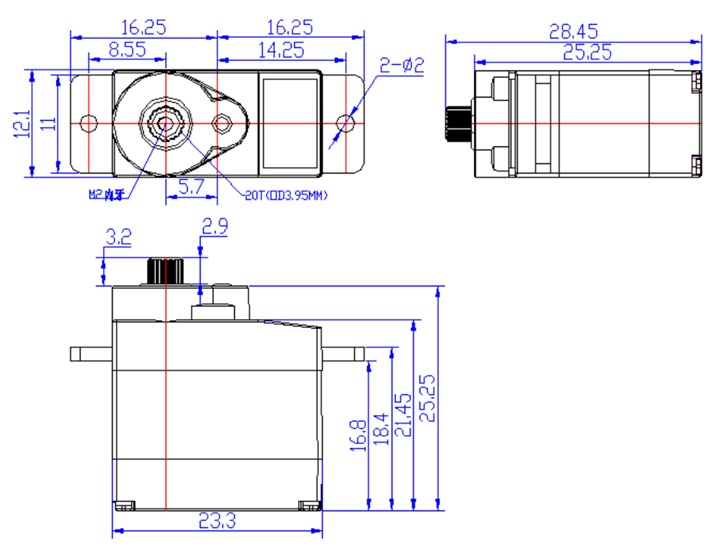

Dimensions: A：23.2mm B：12.1mm C：25.25mm
Weight: 13.2± 1g
Gear type: Copper + Steel
Limit angle: NO limit
Bearing: NO
Horn gear spline: 20T/OD3.95mm
Horn type: Plastic,POM
Case: PC
Connector wire: 15cm
Motor: Core Motor
Operating Voltage Range: 4-7.4V
No load speed: 0.1sec/60°@6V
Runnig current: 150 mA@6V
Peak stall torque: 2.3kg.cm@6V
Rated torque: 0.7kg.cm@6V
Stall current: 1.0A@6V
Command signal: Digital Packet
Protocol Type: Half duplex Asynchronous Serial Communication
ID Range: 0-253
Communication speed: 38400bps ~ 1 Mbps
Running degree: 300°(when 0～1024)
Feedback: Load,Position,Speed,InputVoltage ,Current
Position Sensor Resolution: 0.293°(300°/1024)

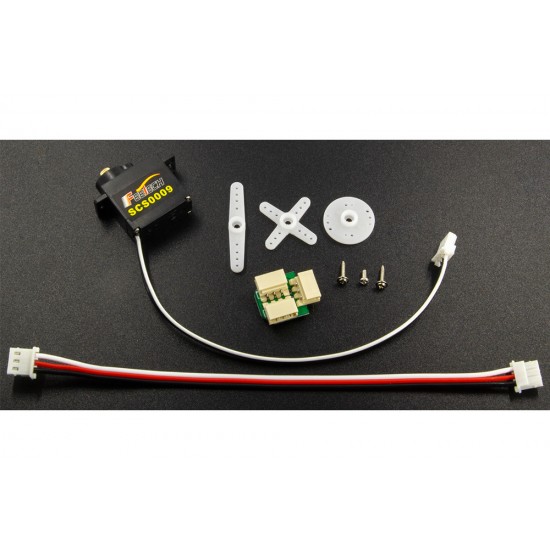

Package includes

1X SC-S0009 6V 2.3kg Serial Bus Servo Motor
